Oil Pump: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil pump and tighten the bolts in sequence shown in 2 stages.
Torque: Stage1: 89 lb.in (10 Nm) / Stage 2: 177 lb.in (20 Nm)

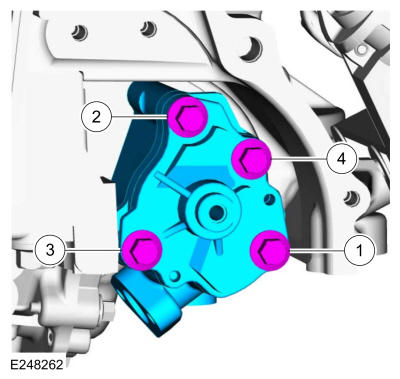

Fig 1: Oil Pump Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the oil pump sprocket and bolt.
Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

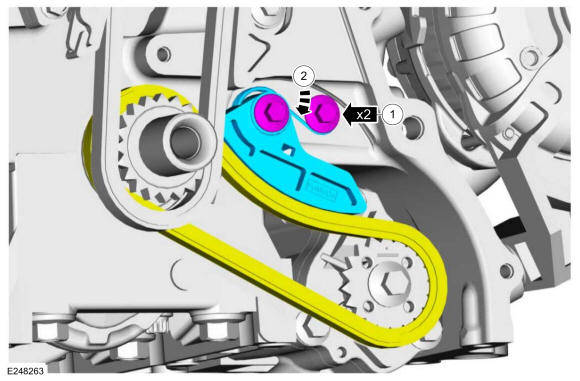

1. Position the oil pump chain on the oil pump sprocket and install the tensioner, spring and the shoulder bolts.
  Torque 89 lb.in (10 Nm)
2. Push the tensioner spring down and position the spring under the shoulder bolt.
Courtesy of FORD MOTOR COMPANY
Install a new O-ring seal.

Courtesy of FORD MOTOR COMPANY
Install the oil pump screen and pickup tube and the bolts.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

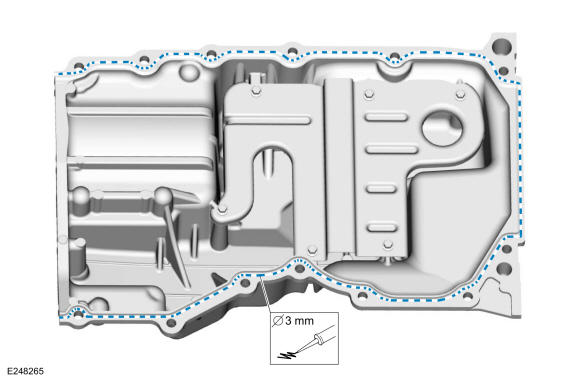

Apply a 3 mm (0.19 in) bead of silicone sealant.

Material Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the oil pan bolts at this time.

Install the oil pan and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY

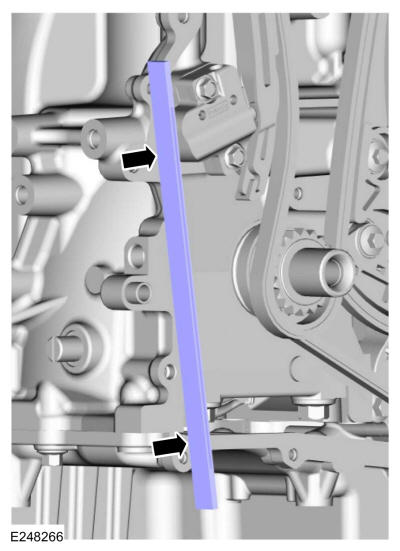

Align the front surface of the oil pan flush with the front surface of the engine block. Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY
Tighten the oil pan bolts in sequence shown.
Torque 18 lb.ft (25 Nm)

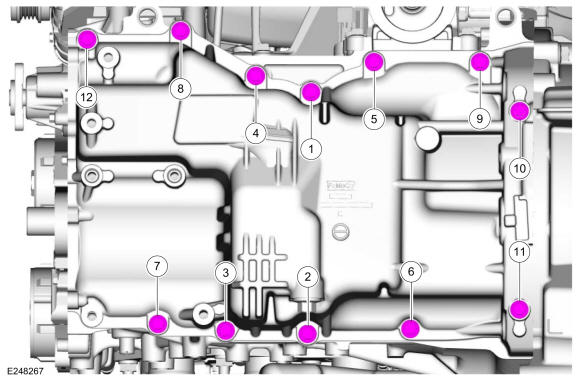

Fig 2: Oil Pan Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the transmission bolts.
Torque 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pan bolt and stud bolt.
Torque 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Position the ground cable and install the nut.
Torque 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

Install a new engine oil filter.

Torque: Stage1: 71 lb.in (8 Nm) / Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
Remove the support and position the A/C compressor and install the bolts.
Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the A/C compressor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: Engine Front Cover .
Fill the engine with clean engine oil. Refer to: Specifications .
