Removal And Installation: Flexplate: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transmission. Refer to: Transmission .

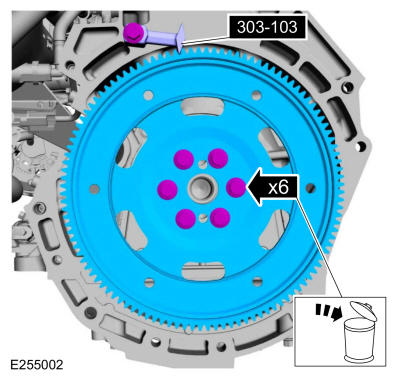

    • Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

    • Remove the bolts and the flexplate.

    • Discard the bolts.

    • Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

GFD325550Courtesy of FORD MOTOR COMPANY
