Removal And Installation: Flexplate: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

- Install the flexplate and the bolts finger tight.
- Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
- Tighten the bolts in sequence shown in 3 stages.
  Torque: Stage1: 37 lb.ft (50 Nm) / Stage 2: 59 lb.ft (80 Nm) / Stage 3: 83 lb.ft (112 Nm)
- Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

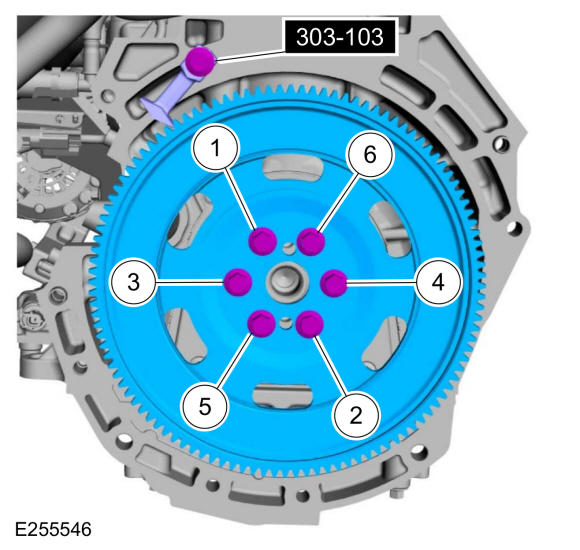

Fig 1: Flexplate Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the automatic transmission. Refer to: Transmission .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
