Engine Mount: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

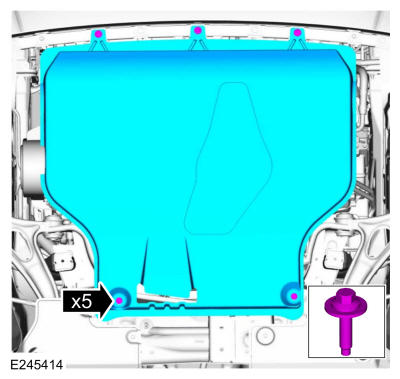

- If equipped, remove the bolts and the underbody shield.

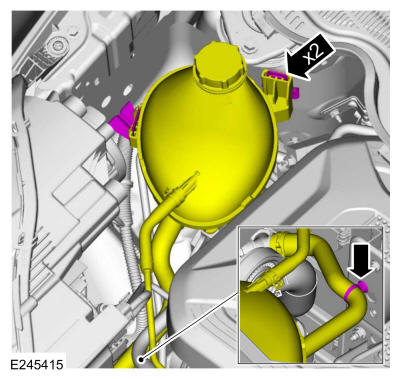

- Release the tabs, retainer and position the degas bottle aside.

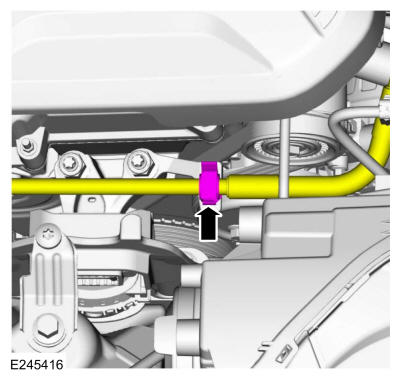

- Detach the A/C line retainer and from the engine mount.
-
NOTE: Do not support the engine on the A/C compressor.

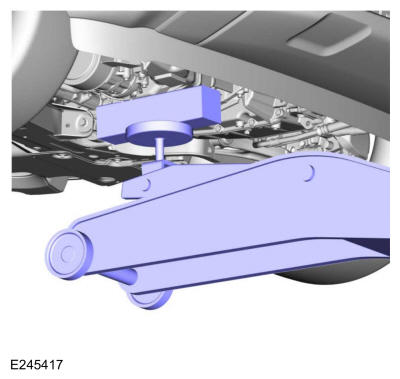

Using a trolley jack and wooden block, support the engine. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block
-

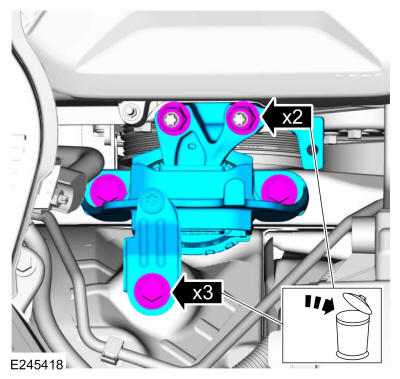

- Remove the nuts, bolts and the engine mount.
- Discard the nuts and bolts.
