Engine Mount: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

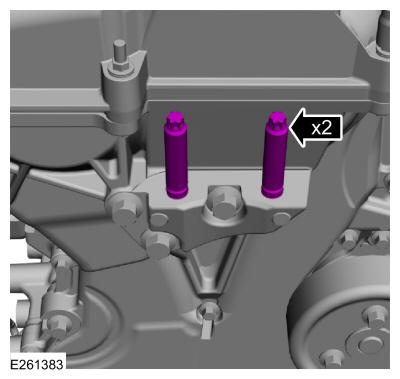

Tighten the engine mount studs.
Torque 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY

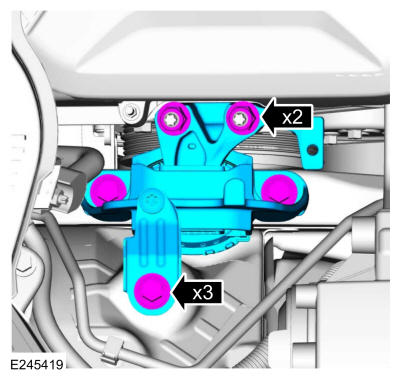

- Install the engine mount and the nuts.
  Torque 59 lb.ft (80 Nm)
- Install the engine mount bolts.
  Torque 66 lb.ft (90 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the trolley jack and wooden block. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Attach the A/C line retainer to the engine mount.

Courtesy of FORD MOTOR COMPANY
Position back the degas bottle and connect the tabs and retainer.

Courtesy of FORD MOTOR COMPANY
If equipped, install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
