Engine Front Cover: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

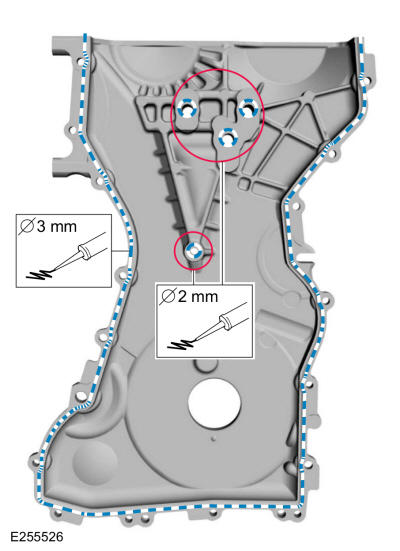

- Apply 2 mm beads of silicone sealant around the inner bolt holes.
  Material Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
- Apply 3 mm bead of silicone sealant on the engine front cover
  Material Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned.

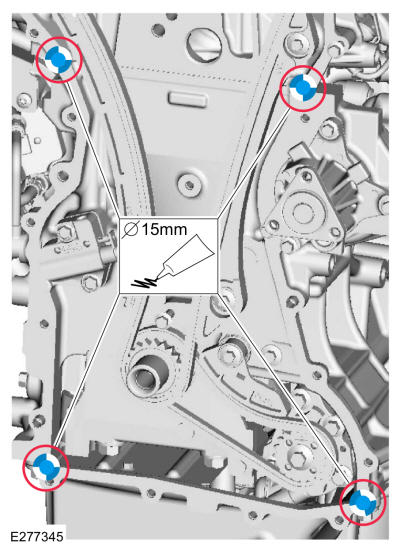

Apply a 15 mm (0.59 in) drop of silicone sealant at the cylinder head-to-cylinder block and cylinder block-to-oil pan joint areas.

Material Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

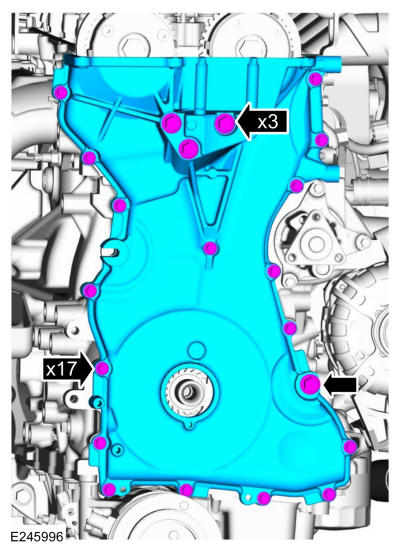

Install the engine front cover and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Tighten the engine front cover bolts in sequence shown.
- Tighten bolts 1 through 3 to
  Torque 35 lb.ft (48 Nm)
- Tighten bolts 4 through 13 to
  Torque 89 lb.in (10 Nm)
- Tighten bolt 14 to
  Torque 35 lb.ft (48 Nm)
- Tighten bolts 15 through 21 to
  Torque 89 lb.in (10 Nm)

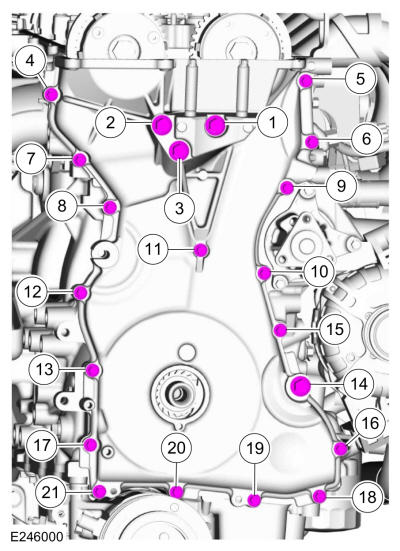

Fig 1: Engine Front Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the coolant pump pulley and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

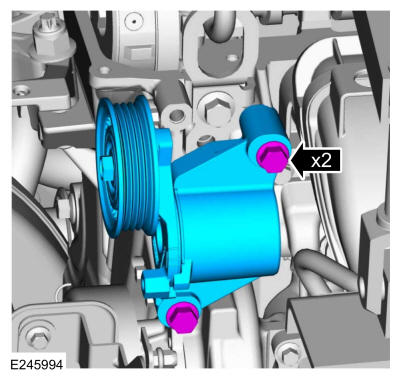

Install the accessory drive belt tensioner and the bolts.
Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Remove the through-bolt from the special tool.

NOTE: Lubricate the crankshaft front seal with clean engine oil.

Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Apply clean engine oil on the seal area before installing.

Lubricate the crankshaft pulley with clean engine oil.

Courtesy of FORD MOTOR COMPANY
Position the crankshaft pulley onto the crankshaft with the access hole at the 6 o'clock position.

Courtesy of FORD MOTOR COMPANY
NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

Install an M6 bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crank Damper Holding Tool and the bolt should be installed using hand tools only.

Using the special tool, install the new crankshaft bolt and washer and tighten. Use Special Service Tool: 303-1689 Holding Tool, Crank Damper.

Torque: Stage1: 74 lb.ft (100 Nm) / Stage 2: 90 deg.

Courtesy of FORD MOTOR COMPANY
Remove the M6 bolt.

Courtesy of FORD MOTOR COMPANY

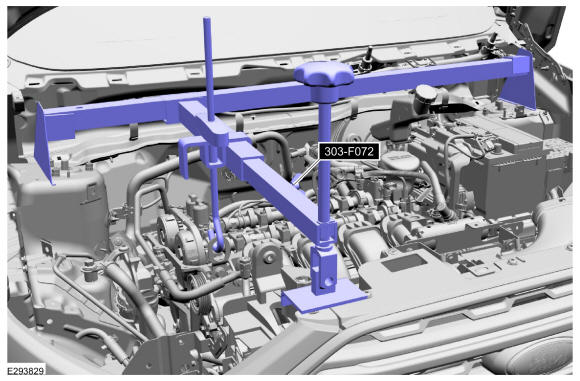

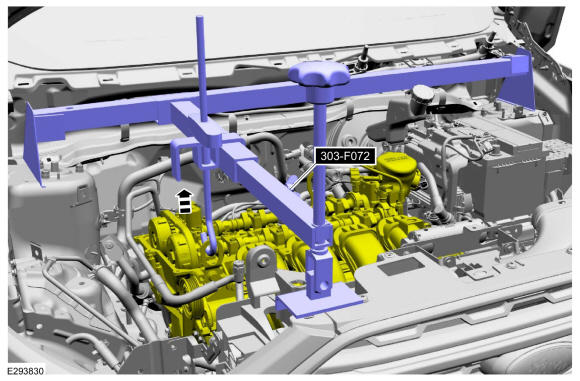

Raise the engine to the installed position. Use Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Tighten the engine mount studs.
Torque 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY

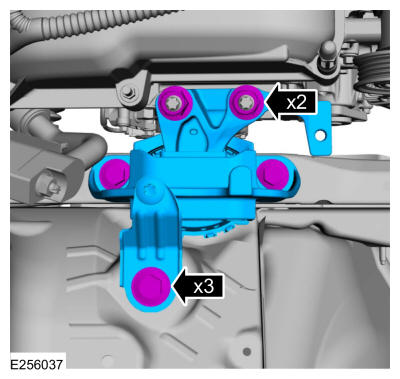

- Install the engine mount and the nuts.
  Torque 59 lb.ft (80 Nm)
- Install the engine mount bolts.
  Torque 66 lb.ft (90 Nm)
Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY

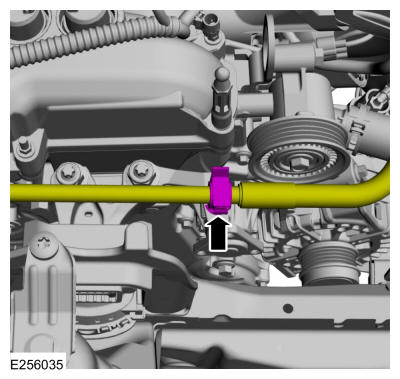

Attach the A/C line retainer to the engine mount.

Courtesy of FORD MOTOR COMPANY
Install the CKP sensor and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Install the special tool to set the CKP sensor position and tighten the bolts. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
Torque 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.

Courtesy of FORD MOTOR COMPANY
Connect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Install the engine plug bolt.
Torque 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

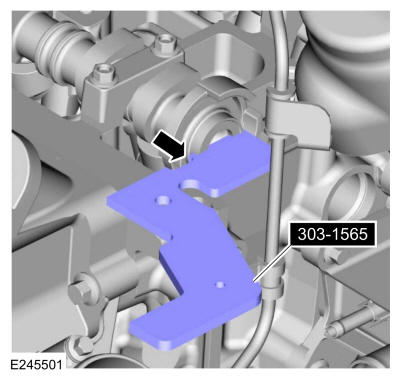

Remove Special Service Tool: 303-1565 Alignment Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the valve cover. Refer to: Valve Cover .
2. Install the accessory drive belt. Refer to: Accessory Drive Belt .
3. Install the RH front fender splash shield. Refer to: Fender Splash Shield .
4. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

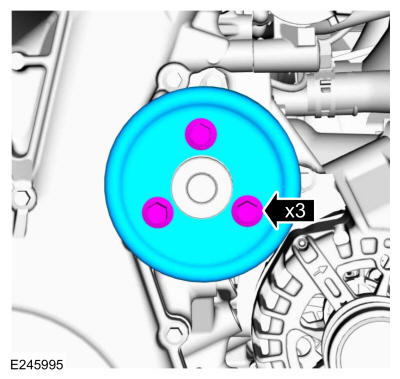

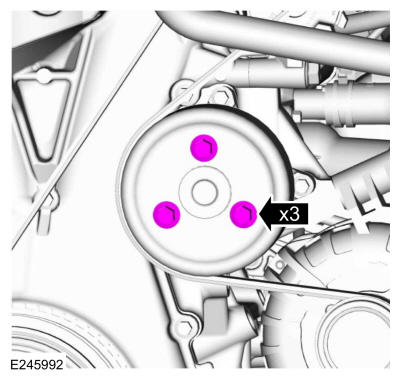

Tighten the coolant pump pulley bolts.
Torque 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

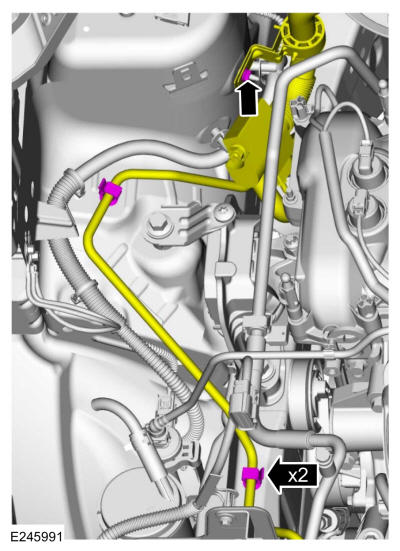

- Position the A/C line and install the nut.
  Torque 27 lb.in (3 Nm)
- Attach the A/C line retainers.
Courtesy of FORD MOTOR COMPANY

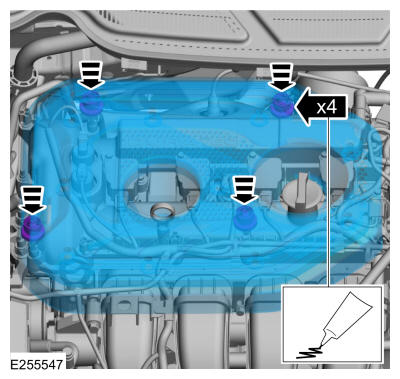

NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.
1. Lubricate each grommet with silicone grease.
  Material Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
2. Position the engine appearance cover onto engine with the grommets aligned with the studs.
3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
Courtesy of FORD MOTOR COMPANY
Position back the degas bottle and connect the tabs and retainer.

Courtesy of FORD MOTOR COMPANY

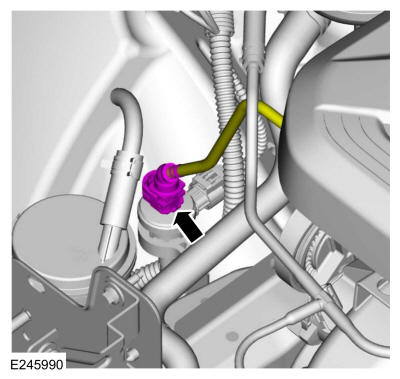

If equipped, connect the EVAP tube quick release coupling to the canister purge valve. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the RH headlight assembly. Refer to: Headlamp Assembly .
2. Install the cowl panel. Refer to: Cowl Panel .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
