Crankshaft Rear Seal: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the flexplate. Refer to: Flexplate .

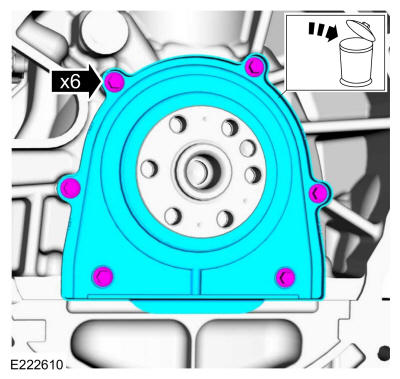

- Remove the bolts and the crankshaft rear seal, discard the crankshaft rear seal.

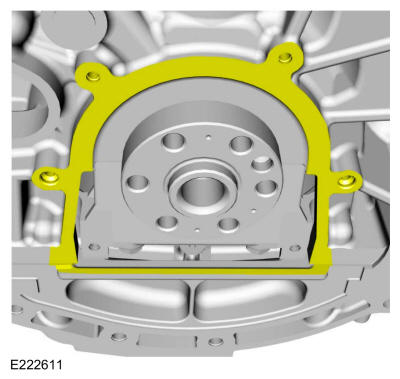

- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
