Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the crankshaft rear seal is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

Apply a 3 mm (0.118 in) bead of silicone to the oil pan surface and a 5 mm (0.196 in) bead at the T-joints.

Material Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
1. Install the crankshaft rear main oil seal installer. Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.
2. Install the crankshaft rear seal retainer at an angle above the oil pan flange to avoid scraping off the sealer.
3. Tilt the seal retainer up and onto the rear of the cylinder block.
Courtesy of FORD MOTOR COMPANY
Using the special tool, seat the crankshaft rear seal. Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.

Courtesy of FORD MOTOR COMPANY
Install the bolts and tighten in sequence shown. Remove Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.
Torque 89 lb.in (10 Nm)

Fig 1: Crankshaft Rear Seal Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

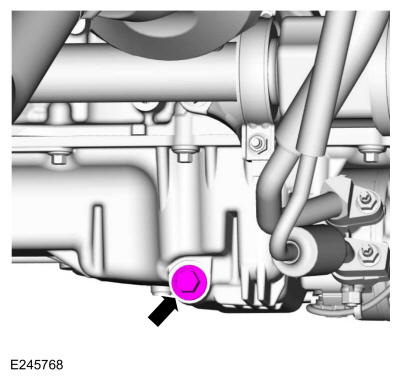

- Remove the drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install drain plug.
  Torque 20 lb.ft (27 Nm)
Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY

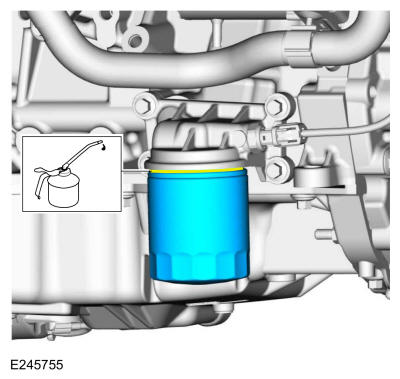

NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

Install a new engine oil filter.

Torque: Stage1: 71 lb.in (8 Nm) / Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY

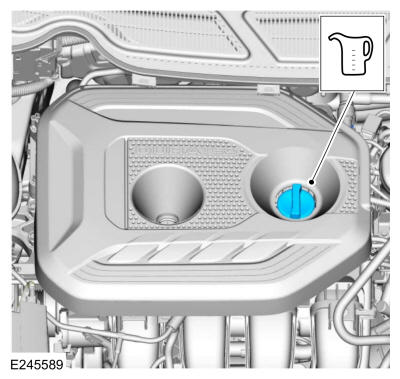

Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Install the flexplate. Refer to: Flexplate .
