Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

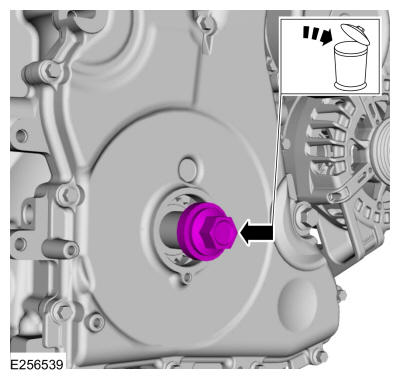

  1. Remove and discard the crankshaft pulley bolt.
    GFD325460Courtesy of FORD MOTOR COMPANY

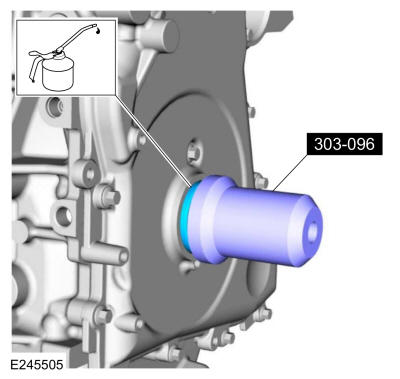

  2. NOTE: Remove the through-bolt from the special tool.
    NOTE: Lubricate the crankshaft front seal with clean engine oil.

    Using the special tools, install the crankshaft front seal. Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

    GFD325461Courtesy of FORD MOTOR COMPANY
  3. Install the crankshaft pulley. Refer to: Crankshaft Pulley .
