Disassembly And Assembly Of Subassemblies: Piston: Disassembly
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

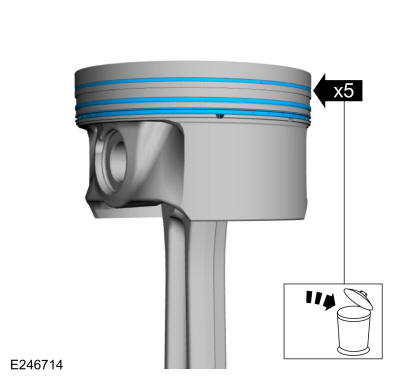

- Remove the piston rings and discard.
-

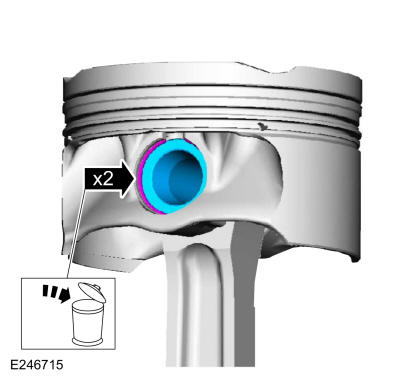

- Remove the piston pin retainers and discard.
- Remove the piston pin.
- Remove the piston from the connecting rod.

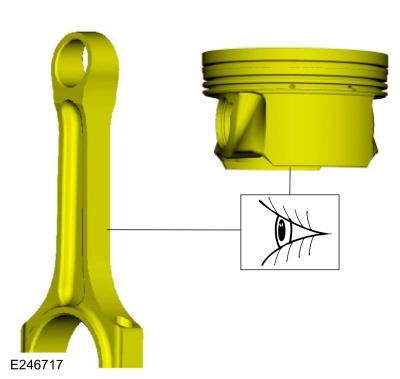

- Inspect the piston. Refer to: Piston Inspection .
