Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

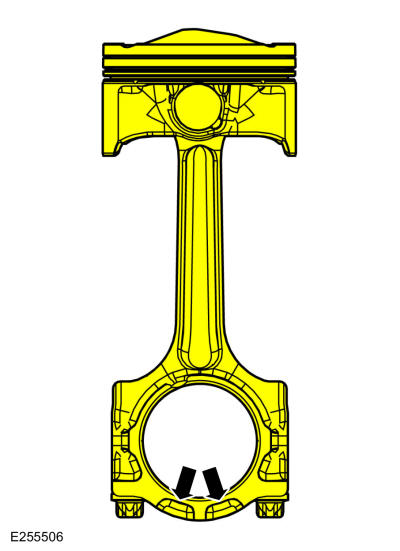

  1. Indicates front of engine.
    GFD325844Courtesy of FORD MOTOR COMPANY
  2. Install the piston to the connecting rod.
    GFD325845Courtesy of FORD MOTOR COMPANY

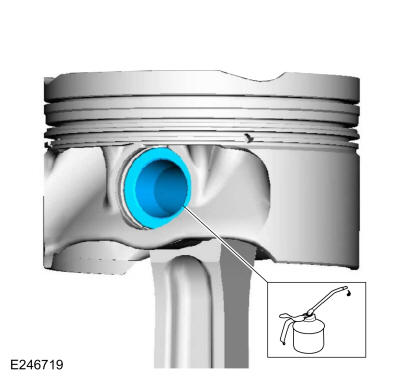

  3. Lubricate with clean engine oil and install the piston pin.
    GFD325846Courtesy of FORD MOTOR COMPANY

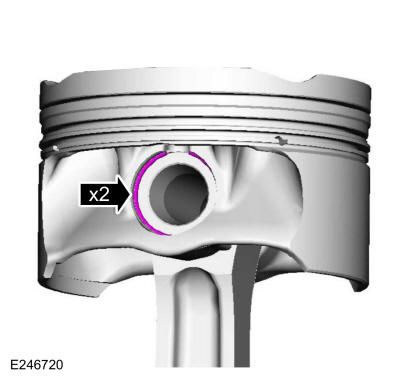

  4. Install the piston pin retainers.
    GFD325847Courtesy of FORD MOTOR COMPANY

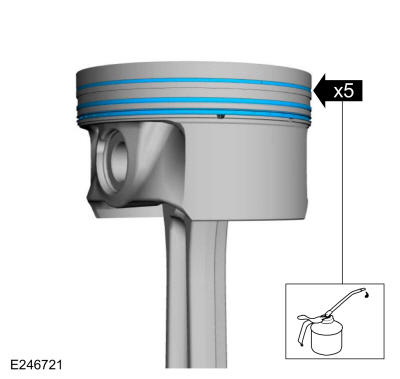

  5. Lubricate with clean engine oil and install the piston rings.
    GFD325848Courtesy of FORD MOTOR COMPANY

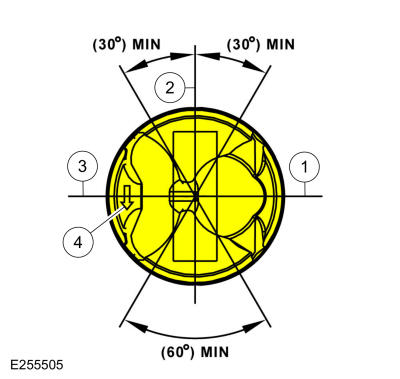

  6. NOTE: Align the piston rings on the piston.

    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.
    4. Piston to be assembled with the arrow pointing to the front of the engine.

GFD325849Courtesy of FORD MOTOR COMPANY
