Engine - Overview: Overview
The 2.0L Duratec GDI engine which may also be described with these terms:
- GDI - Gasoline direct injection
- DI - Direct injection
- TIVCT - Twin independent variable camshaft timing
- I4 - 4 cylinder engine
- 16 V - 4 valves per cylinder
- 4V - 4 valves per cylinder, 16 valves total
FSAO 2.0L Duratec HE (125kW/170PS) - MI4/2.0L Duratec - HE Flex Fuel (129kW/175PS):
- 2.0L - Engine displacement
- 170PS or 175PS- Engine power rating
China - North America 2.0L Duratec HE (129kW/175PS):
- 2.0L - Engine displacement
- 175PS- Engine power rating
The 2.0L Twin Independent Variable Cam Timing (Ti-VCT) Gasoline Direct Injection (GDI) 4-cylinder engine has the following features:
- Dual overhead camshafts
- Four valves per cylinder
- Composite intake manifold
- Aluminum cylinder head
- Gasoline Direct Injection (GDI)
- Twin Independent Variable Cam Timing (Ti-VCT)
- An electronic ignition system with 4 ignition coil-on-plugs
Engine Identification
Always refer to these labels when installation of new parts is necessary or when checking engine calibrations. The engine parts often differ within a CID family. Verification of the identification codes will make sure the correct parts are obtained. These codes contain all the pertinent information relating to the dates, optional equipment and revisions.

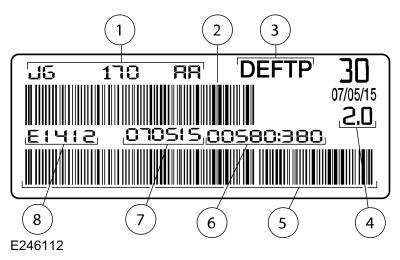

Engine Code Information Label
The engine code information label, located on the front cover, contains the following:
| Item | Description |
|---|---|
| 1 | Engine part number |
| 2 | Bar code |
| 3 | Dearborn engine plant |
| 4 | Engine displacement |
| 5 | Bar code |
| 6 | Bar code |
| 6 | Running number |
| 7 | Engine build date (DDMMYY) |
| 8 | Plant shift line |

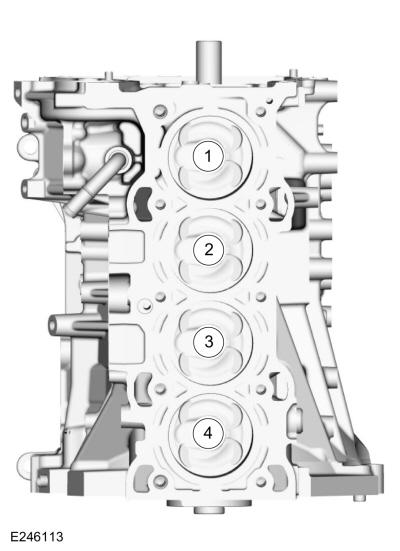

Engine Cylinder Identification

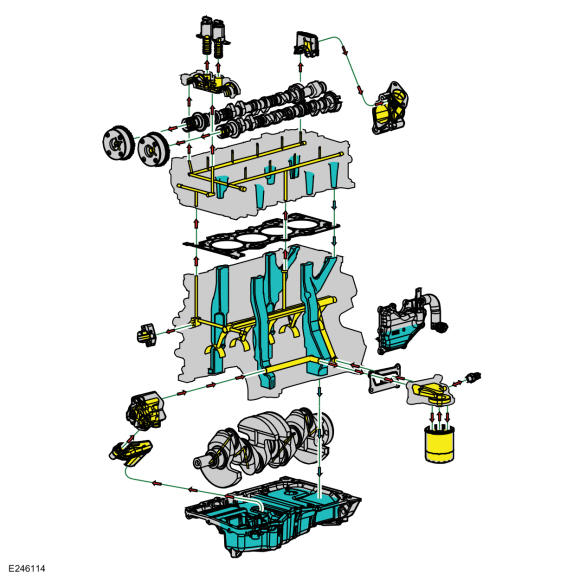

Oil Flow Diagram
Lubrication System
| Item | Description |
|---|---|
| Yellow | High pressure oil flow |
| Blue | Oil return/low pressure oil flow |
