Section 53 (Engine - 1.0L ECOBOOST (92KW/125PS)): Removal: Engine

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Magnetic Socket
Lifting Bracket
Floor Crane
Oil Drain Equipment
Trolley Jack
Hose Clamp Remover/Installer
Wooden Block
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  4. Remove the following items:

    1. Refer to: Hood .
    2. Refer to: Cowl Panel .
    3. Refer to: Accessory Drive Belt .

  5. Disconnect the vacuum pump inlet tube coupling.
    GFD324829Courtesy of FORD MOTOR COMPANY
  6. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

    1. Loosen the clamps and remove the nuts.
    2. Release the clamp and disconnect the vacuum hose. Use the General Equipment: Hose Clamp Remover/Installer
    3. Disconnect the quick release couplings. Refer to: Quick Release Coupling .
    4. Disconnect the crankcase pressure sensor electrical connector.
    5. Disconnect the PCV coupling.
    6. Disconnect the MAP sensor electrical connector and remove the air cleaner outlet pipe assembly.

    GFD324906Courtesy of FORD MOTOR COMPANY

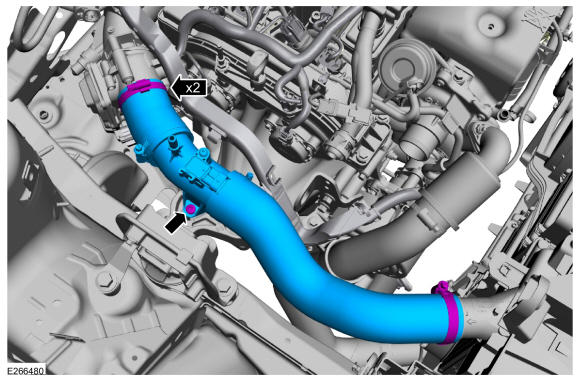

  7. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

    1. Remove the bolt.
    2. Loosen the clamps and remove the CAC outlet pipe.

    GFD324907Courtesy of FORD MOTOR COMPANY

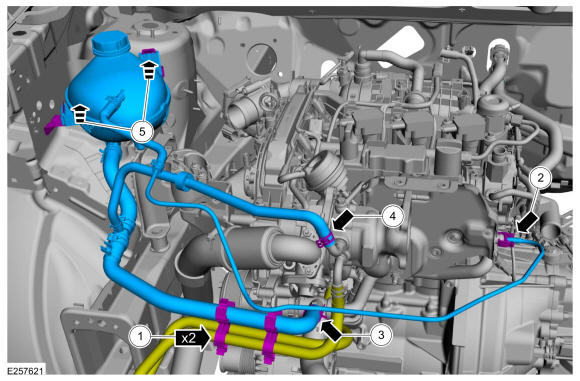

    1. Detach the coolant hose retainers.
    2. Disconnect the degas bottle coolant tube.
    3. Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    4. Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    5. Release the tabs and remove the degas bottle and hose assembly.
    GFD324990Courtesy of FORD MOTOR COMPANY

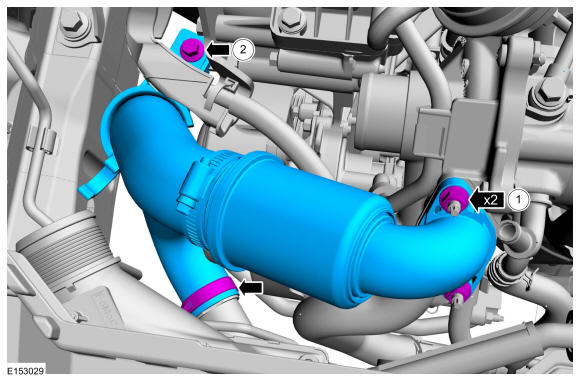

  9. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

    1. Remove the nuts.
    2. Remove the bolt.

    • Loosen the clamp and remove the CAC inlet pipe.

    GFD324991Courtesy of FORD MOTOR COMPANY
  10. Remove the following items:

    1. Refer to: Air Cleaner .
    2. Refer to: Battery Tray .
    3. Refer to: Catalytic Converter .
    4. Refer to: Starter Motor .
    5. Refer to: Throttle Body .

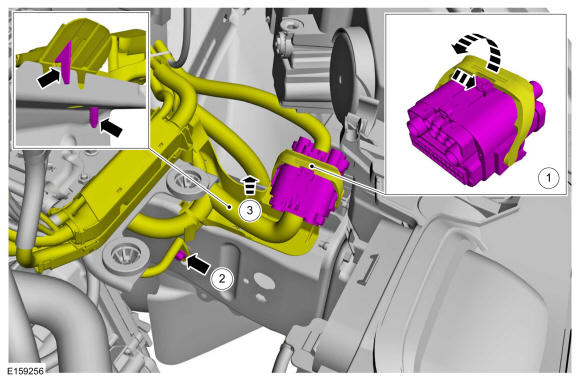

    1. Disconnect the engine wiring harness electrical connector.
    2. Remove the ground bolt.
    3. Detach the wiring harness retainer.
    GFD324992Courtesy of FORD MOTOR COMPANY

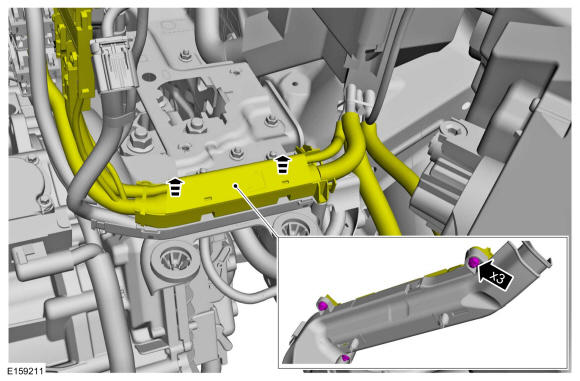

    1. Detach the wiring harness retainer.
    2. Remove the retainers and position the wiring harness aside.
    GFD324993Courtesy of FORD MOTOR COMPANY

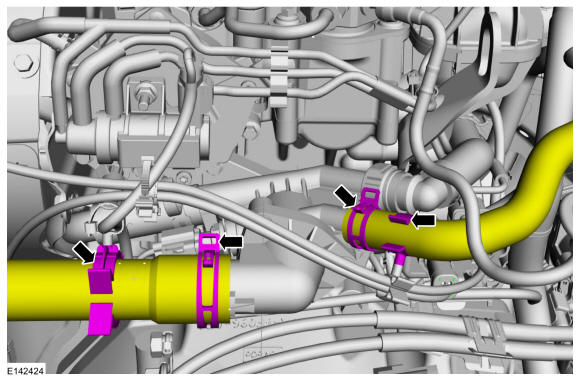

    1. Detach the coolant hose retainers.
    2. Loosen the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD324994Courtesy of FORD MOTOR COMPANY

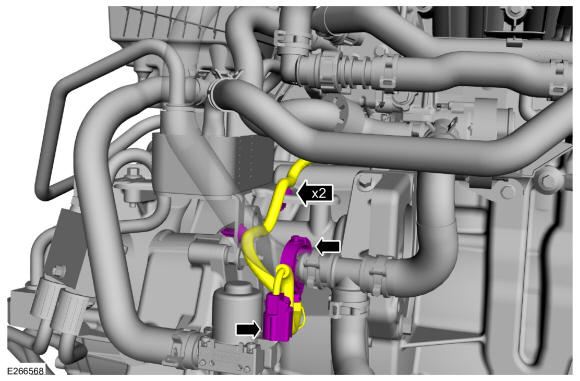

    1. Disconnect the coolant solenoid electrical connector.
    2. Detach the coolant hose retainer.
    3. Detach the wiring harness retainers.
    GFD324995Courtesy of FORD MOTOR COMPANY

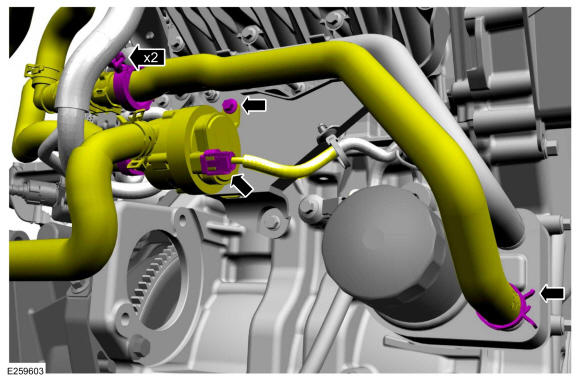

    1. Detach the coolant hose retainers.
    2. Release the clamp and disconnect the coolant hose.
    3. Disconnect the coolant pump electrical connector.
    4. Remove the bolt and position the coolant pump aside.
    GFD324996Courtesy of FORD MOTOR COMPANY

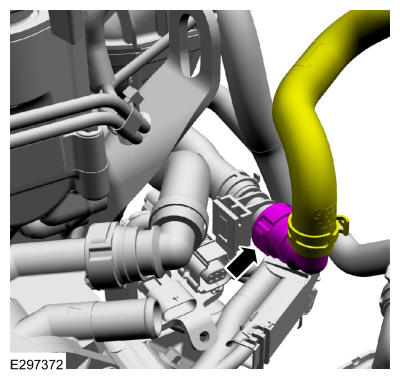

  16. Disconnect the coolant hose.
    GFD324997Courtesy of FORD MOTOR COMPANY

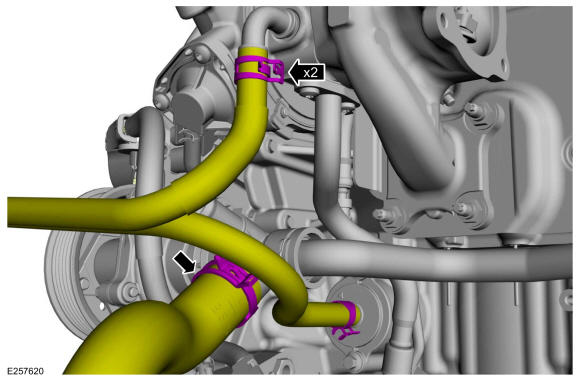

  17. Loosen the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD324998Courtesy of FORD MOTOR COMPANY

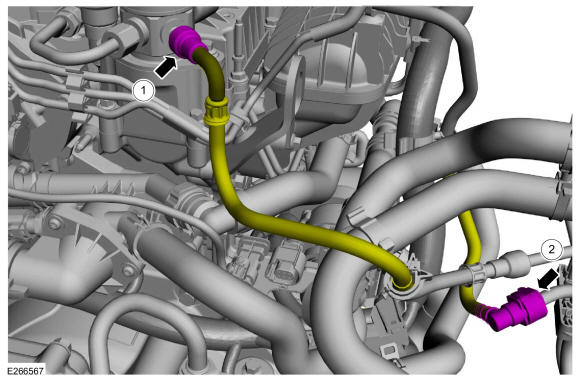

    1. Disconnect the fuel supply tube. Refer to: Spring Lock Couplings .
    2. Disconnect the EVAP vapor supply tube. Refer to: Quick Release Coupling .
    GFD324999Courtesy of FORD MOTOR COMPANY

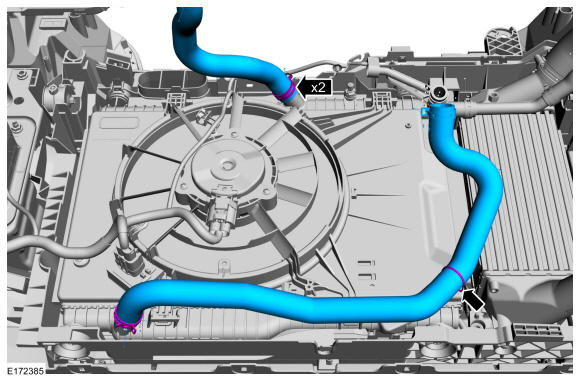

  19. Loosen the clamps and remove the radiator hoses. Use the General Equipment: Hose Clamp Remover/Installer
    GFD325000Courtesy of FORD MOTOR COMPANY

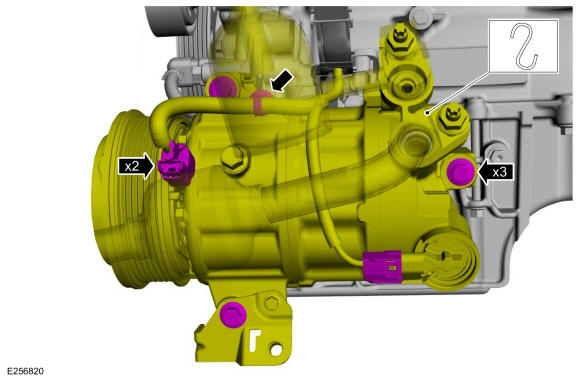

    1. Disconnect the A/C compressor electrical connectors.
    2. Detach the wiring harness retainer.
    3. Remove the bolts and support the A/C compressor.
    GFD324975Courtesy of FORD MOTOR COMPANY

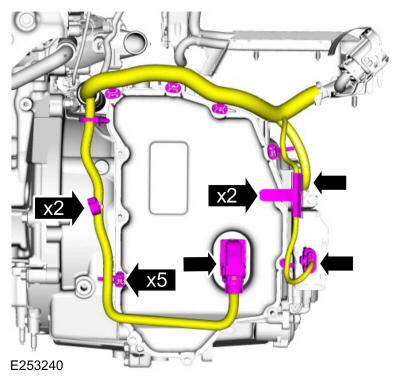

    1. Disconnect the transmission main control and TSS electrical connectors.
    2. Detach the wiring harness retainers from the main control cover stud bolts and position the wiring harness aside.
    GFD325001Courtesy of FORD MOTOR COMPANY

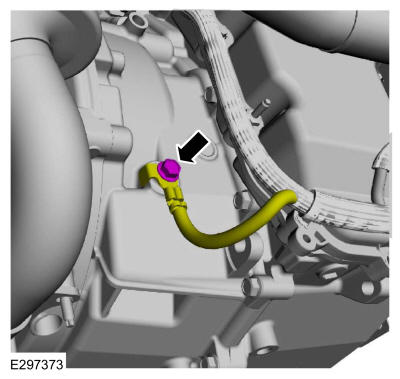

  22. Remove the bolt and the ground wire.
    GFD325002Courtesy of FORD MOTOR COMPANY

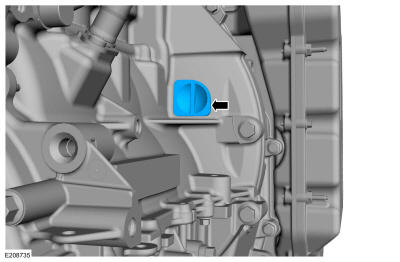

  23. Remove the torque converter nut access plug.
    GFD325003Courtesy of FORD MOTOR COMPANY

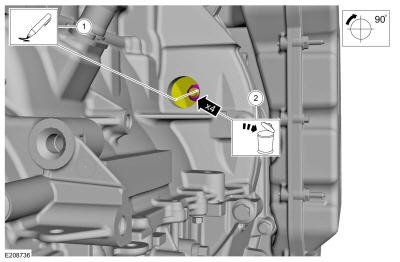

  24. NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.
    NOTE: Index mark one stud and flexplate for assembly reference.
    NOTE: The torque converter nuts are accessed from the top of the vehicle.

    Using a magnetic socket, remove and discard the torque converter nuts. Use the General Equipment: Magnetic Socket

    GFD325004Courtesy of FORD MOTOR COMPANY

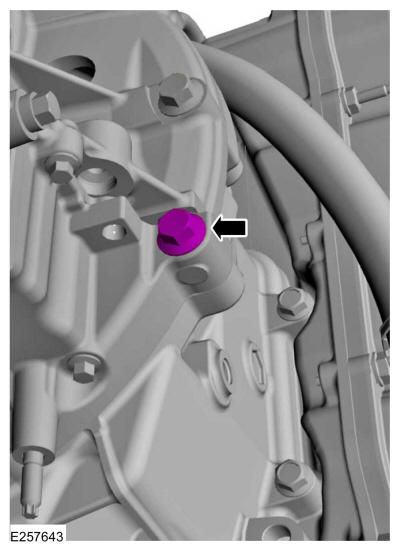

  25. Remove the transmission-to-engine bolt.
    GFD325005Courtesy of FORD MOTOR COMPANY

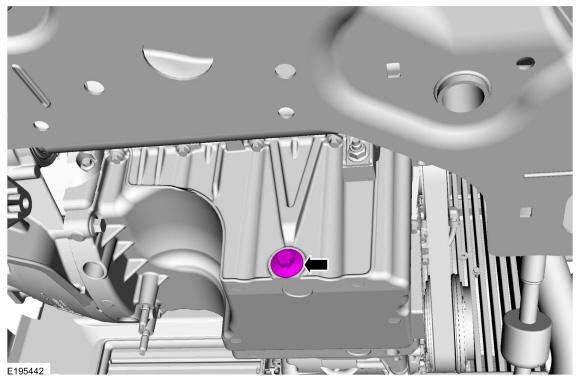

  26. NOTE: Be prepared to collect escaping fluid.

    Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

    Torque 18 lb.ft (25 Nm)

    GFD324898Courtesy of FORD MOTOR COMPANY

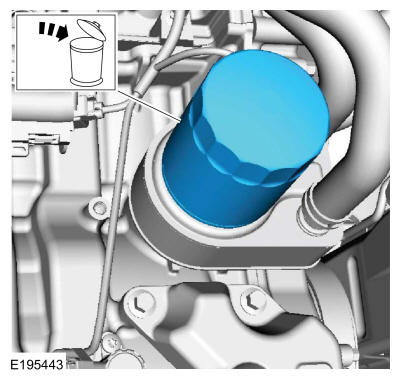

  27. NOTE: Be prepared to collect escaping fluid.

    Remove and discard the engine oil filter.

    GFD324899Courtesy of FORD MOTOR COMPANY

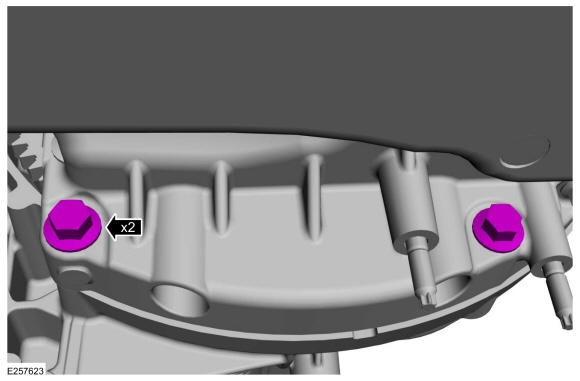

  28. Remove the transmission-to-engine bolts.
    GFD325006Courtesy of FORD MOTOR COMPANY

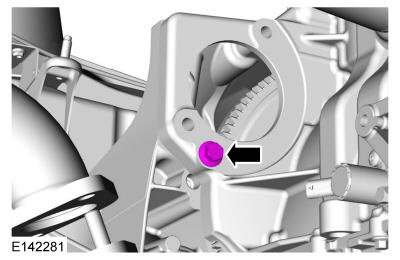

  29. Remove the transmission-to-engine bolt.
    GFD325007Courtesy of FORD MOTOR COMPANY

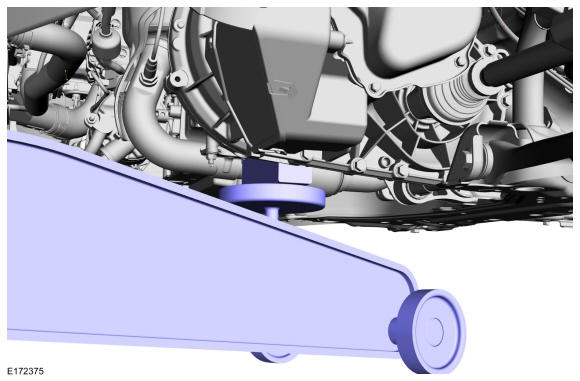

    • Install the General Equipment: Wooden Block

    • Install the General Equipment: Trolley Jack

    GFD324877Courtesy of FORD MOTOR COMPANY

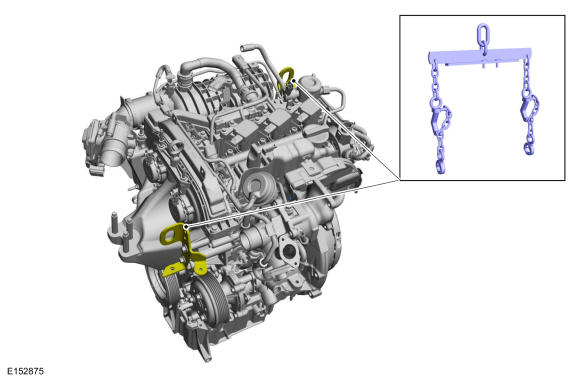

    • Install the General Equipment: Lifting Bracket

    • Install the General Equipment: Floor Crane

    GFD325008Courtesy of FORD MOTOR COMPANY

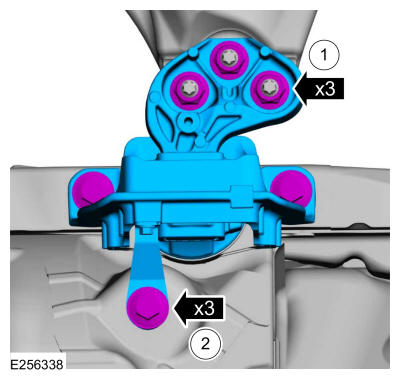

    1. Remove the nuts.
    2. Remove the bolts and the engine mount.
    GFD324879Courtesy of FORD MOTOR COMPANY

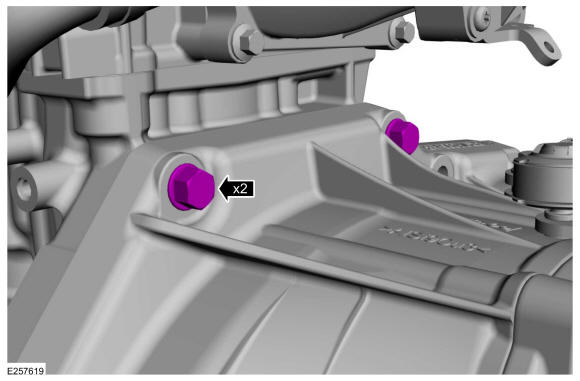

  33. Remove the transmission-to-engine bolts.
    GFD325009Courtesy of FORD MOTOR COMPANY

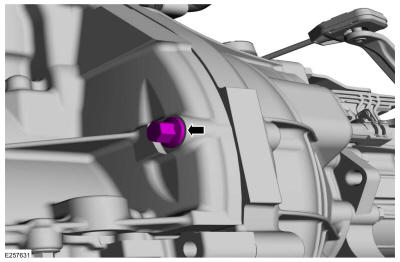

  34. Remove the transmission-to-engine bolt.
    GFD325010Courtesy of FORD MOTOR COMPANY

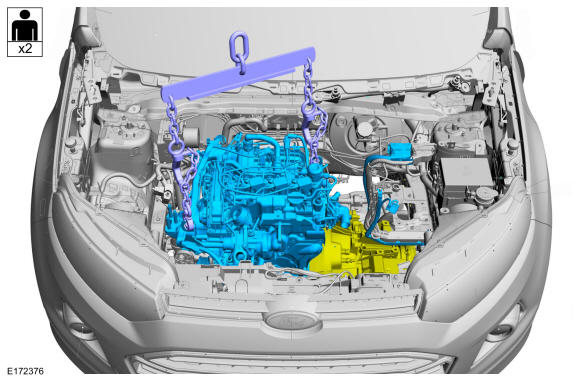

  35. NOTE: Make sure that no components catch.

    Remove the engine from the vehicle. Use the General Equipment: Floor CraneUse the General Equipment: Lifting Bracket

GFD325011Courtesy of FORD MOTOR COMPANY
