Valve Cover: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
NOTE: Make sure that the component is clean, free of foreign material and lubricant.
1. Apply a 5 mm (0.196 in) bead of silicone sealant.
  Material Motorcraft® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
2. Apply a 4 mm (0.157 in) bead of gasket maker.
  Material Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)
Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.
1. Install the valve cover and finger tighten the fasteners.
2. Install the oil level indicator.
Courtesy of FORD MOTOR COMPANY
Tighten the valve cover studs and bolts in sequence shown.
Torque 89 lb.in (10 Nm)

Fig 1: Valve Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

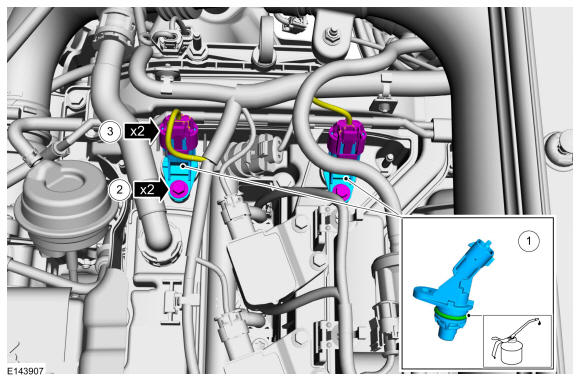

1. NOTE: The O-ring seal is to be reused unless damaged.

  Lubricate the O-ring seals with clean engine oil.
2. Install the CMP sensors and the bolts.
  Torque 89 lb.in (10 Nm)
3. Connect the CMP sensors.

Courtesy of FORD MOTOR COMPANY
