Timing Belt: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to: Engine Front Cover .
    1. Remove the bolts.
    2. Remove and discard the banjo bolt.
    3. Remove and discard the oil supply tube and sealing washers.

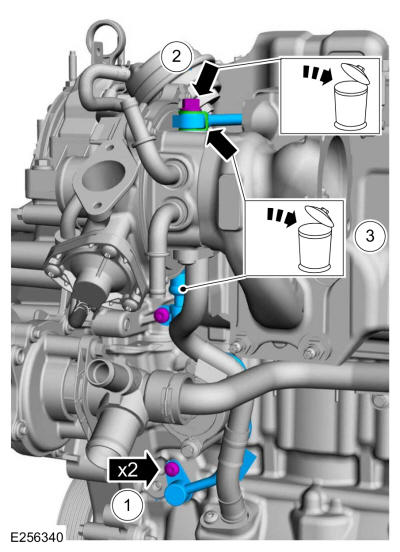

    GFD324958Courtesy of FORD MOTOR COMPANY
    1. Install the special service tool and the mounting bolts loosely. Use Special Service Tool: 303-1605 Alignment Tool, Camshaft.
    2. Tighten the camshaft alignment tool camshaft bolts until each camshaft is held securely.
    3. Tighten the camshaft alignment tool mounting bolts.

      Torque 89 lb.in (10 Nm)

    GFD324813Courtesy of FORD MOTOR COMPANY
  4. WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

    • Rotate the timing belt tensioner clockwise.

    • Install a suitable locking pin.

    • Remove timing belt.

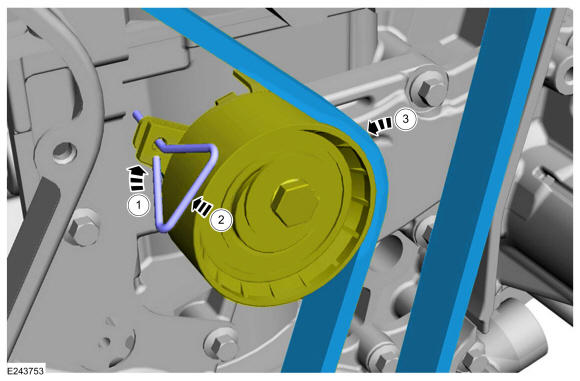

GFD324959Courtesy of FORD MOTOR COMPANY
