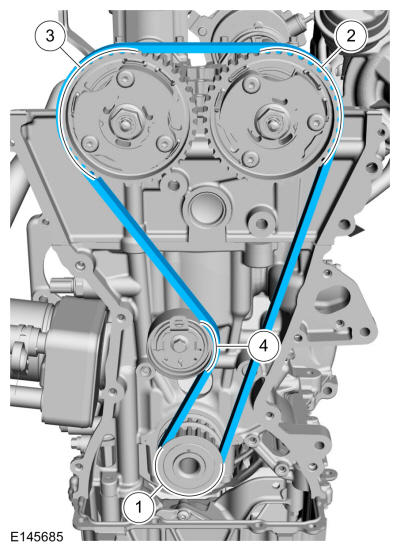

Timing Belt: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new component, determine the part number.

Courtesy of FORD MOTOR COMPANY
WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

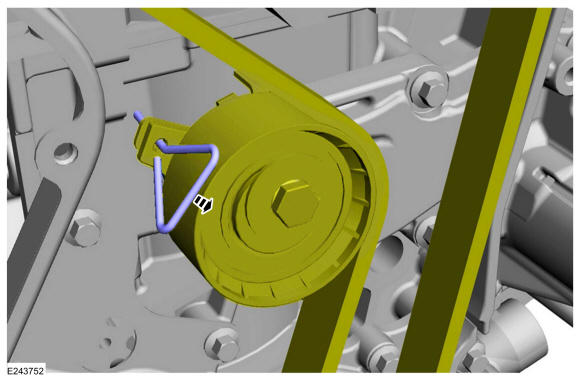

Remove the locking pin.

Courtesy of FORD MOTOR COMPANY

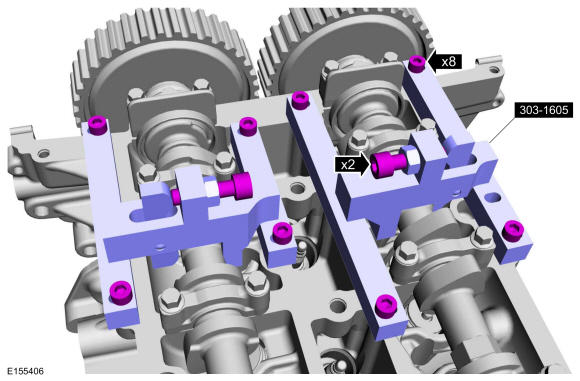

Remove Special Service Tool: 303-1605 Alignment Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

NOTE: Only tighten the bolts finger tight at this stage.

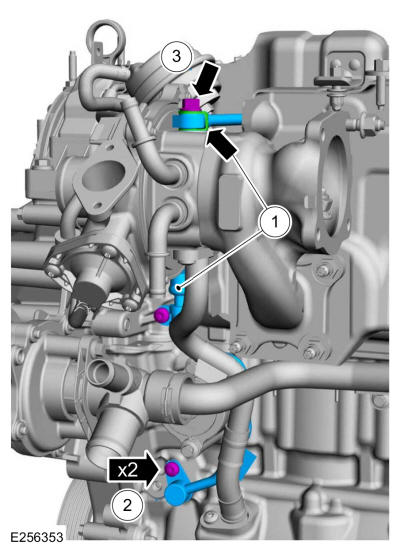

1. Install a new oil supply tube and sealing washers.
2. Install the bolts finger tight.
3. Install a new banjo bolt finger tight.
Courtesy of FORD MOTOR COMPANY

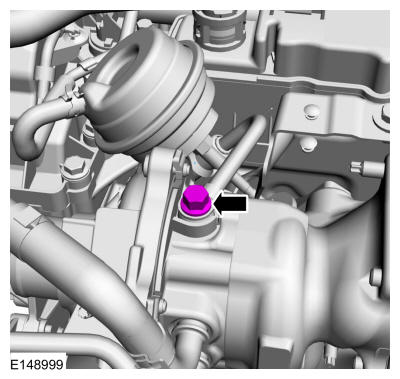

Tighten the bolt.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

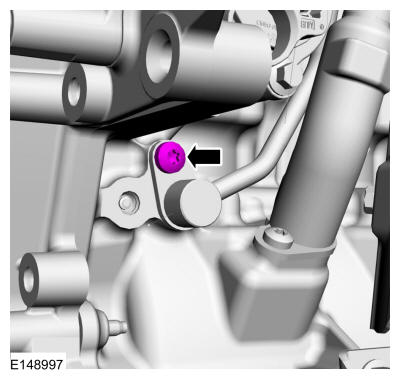

Tighten the bolt.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

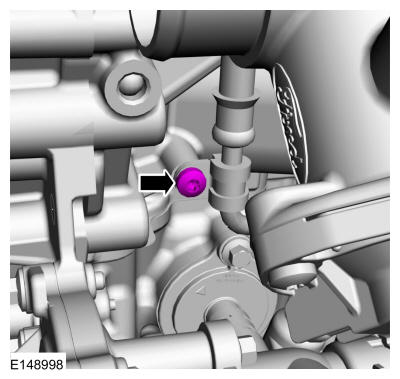

Tighten the banjo bolt.
Torque 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine front cover. Refer to: Engine Front Cover .
