Oil Pump Drive Belt - 6-Speed Automatic Transmission 6F15: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Release the fuel system pressure.
- Remove the oil pan. Refer to: Oil Pan .
-
NOTE: Take extra care when handling the component.

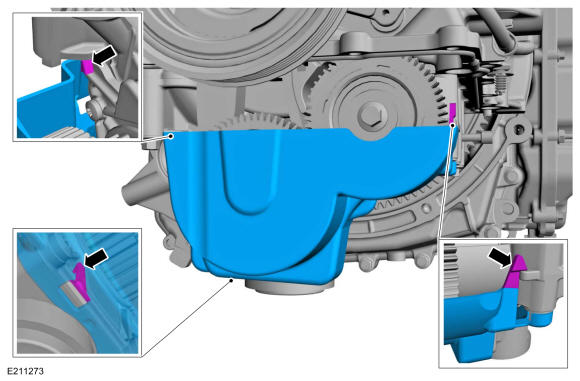

Remove the oil pump cover.
- Remove the timing belt. Refer to: Timing Belt .

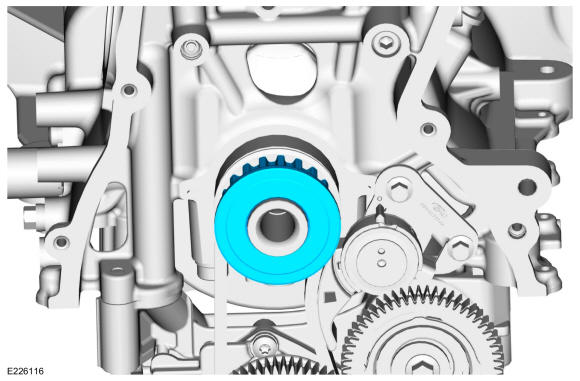

- Remove the timing belt sprocket.

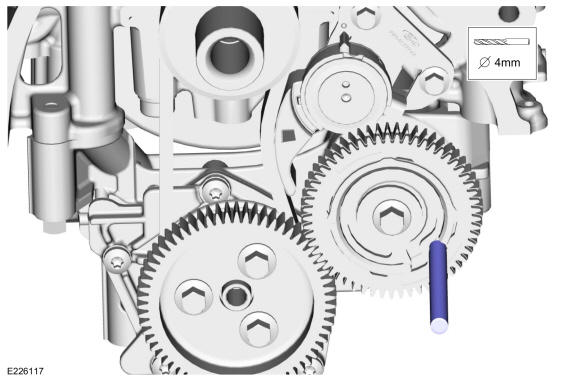

- Install a 4 mm drill bit into the balance shaft gear. Use the General Equipment: 4 mm Drill Bit

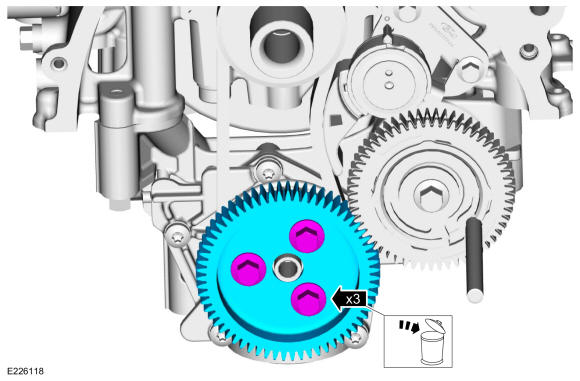

- Remove and discard the bolts.
- Remove the oil pump gear.
-

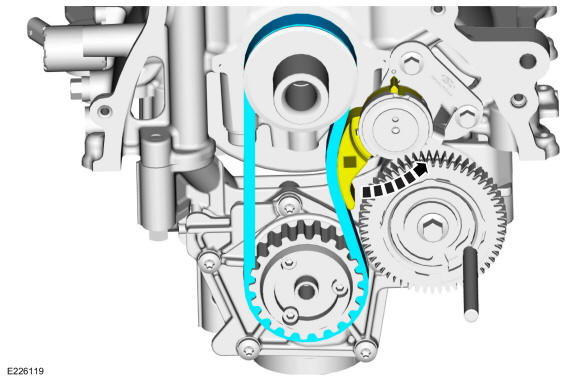

- Using a suitable tool, rotate the oil pump belt tensioner.
- Remove the oil pump belt.
