Oil Pump - 6-Speed Automatic Transmission 6F15: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Remove the oil pan. Refer to: Oil Pan .
NOTE: Only rotate the crankshaft clockwise.

Rotate the crankshaft until piston No. 1 is approximately 35 deg. before top dead center (BTDC).

Courtesy of FORD MOTOR COMPANY
Remove the plug.

Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY

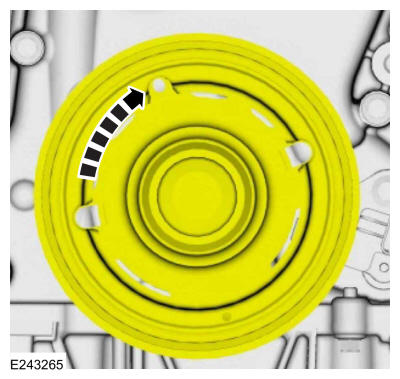

NOTE: Only rotate the crankshaft clockwise.

Rotate the crankshaft slowly until the crankshaft stops.

Courtesy of FORD MOTOR COMPANY
1. Install 3/16 inch punch. Use the General Equipment: Punch
2. Remove 3/16 inch punch. Use the General Equipment: Punch
Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care when handling the component.

Remove the oil pump cover.

Courtesy of FORD MOTOR COMPANY
Install a 6 mm drill bit through the oil pump housing and into the balance shaft. Use the General Equipment: 6 mm Drill Bit

Courtesy of FORD MOTOR COMPANY
Install a 4 mm drill bit into the balance shaft gear. Use the General Equipment: 4 mm Drill Bit

Courtesy of FORD MOTOR COMPANY

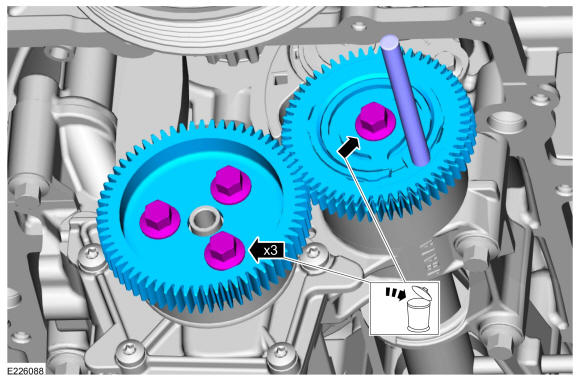

NOTE: The 4 mm drill bit must remain in the balance shaft gear when it is removed.

Remove and discard the bolts.
- Remove the oil pump and balance shaft gears.
Courtesy of FORD MOTOR COMPANY

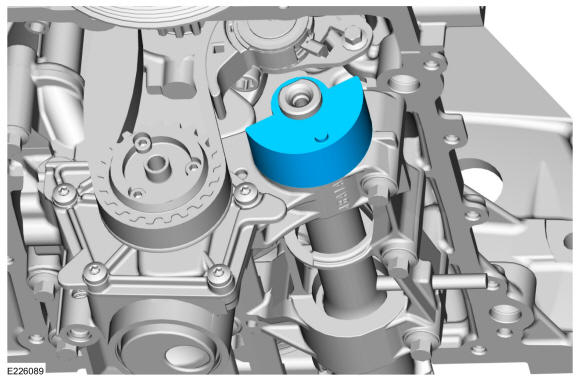

NOTE: Note the position of the component before removal.

Remove the balance shaft weight.

Courtesy of FORD MOTOR COMPANY

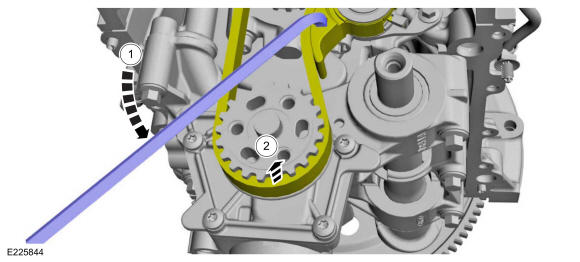

1. Using a suitable tool, rotate the oil pump belt tensioner.
2. Slide the belt off of the oil pump sprocket.
Courtesy of FORD MOTOR COMPANY

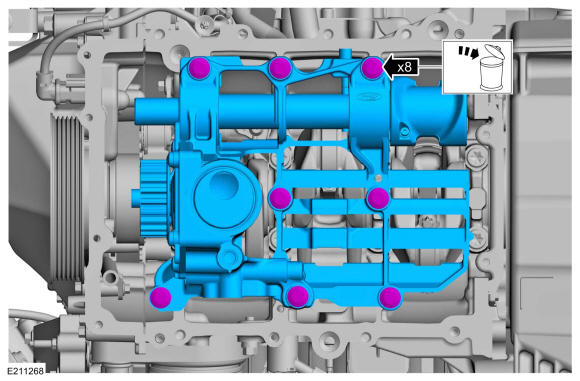

NOTE: Discard the bolts.

Remove the bolts and the oil pump.

Courtesy of FORD MOTOR COMPANY
