Oil Pump - 6-Speed Automatic Transmission 6F15: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
-
NOTE: Make sure that new bolts are installed.NOTE: Only tighten the bolts finger tight at this stage.

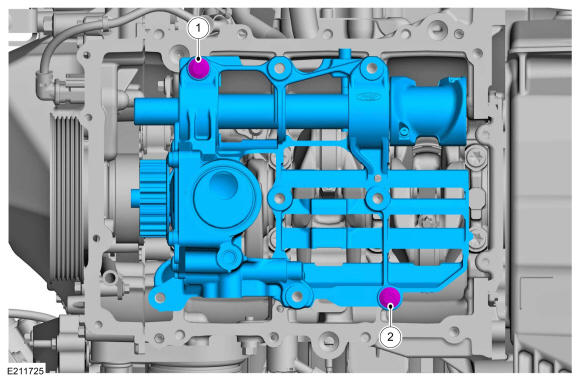

Install the oil pump and the bolts.
-
NOTE: Make sure that new bolts are installed.

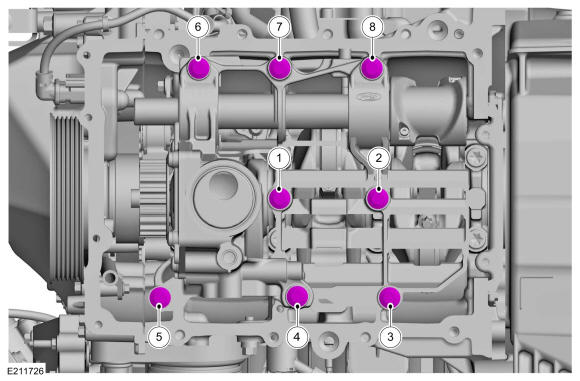

Install the remaining bolts and tighten in sequence shown.
Torque 1-3, M8x50: 17 lb.ft (23 Nm) 4, M8x65: 17 lb.ft (23 Nm) 5, M8x50: 17 lb.ft (23 Nm) 6-8, M8x65: 17 lb.ft (23 Nm)
-

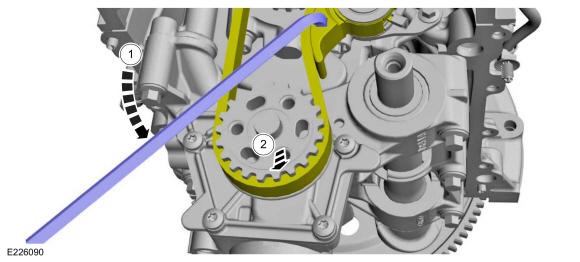

- Using a suitable tool, rotate the oil pump belt tensioner.
- Slide the belt onto the oil pump sprocket.
-
NOTE: Make sure that the component is installed to the position noted before removal.

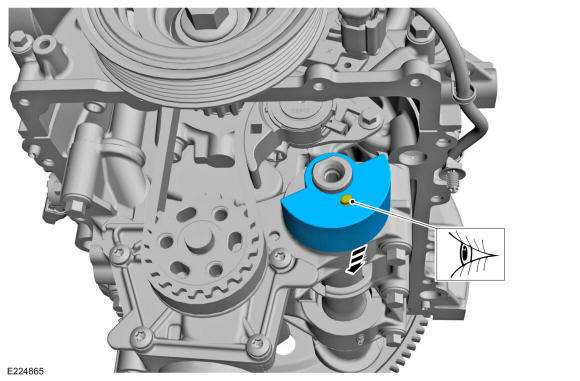

Install the balance shaft weight.
-
NOTE: Make sure that a new bolt is installed.NOTE: Make sure that the component is correctly installed.NOTE: Only tighten the bolt finger tight at this stage.

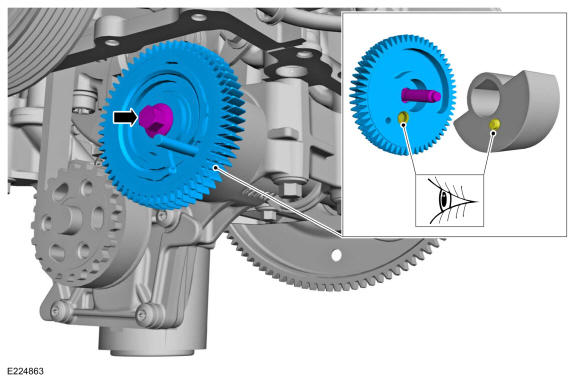

Install the balance shaft gear and the bolt.
-
NOTE: Make sure that new bolts are installed.NOTE: Install all the bolts finger tight before final tightening.

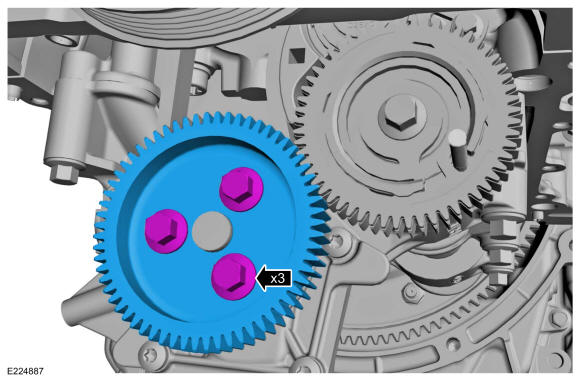

Install the oil pump gear and the bolts.
Torque 26 lb.ft (35 Nm)

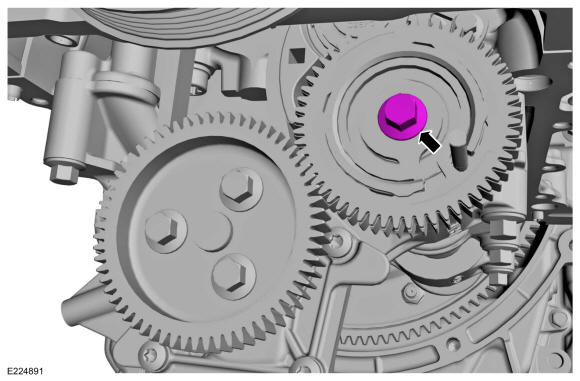

- Tighten the balance shaft gear bolt.
Torque 26 lb.ft (35 Nm)

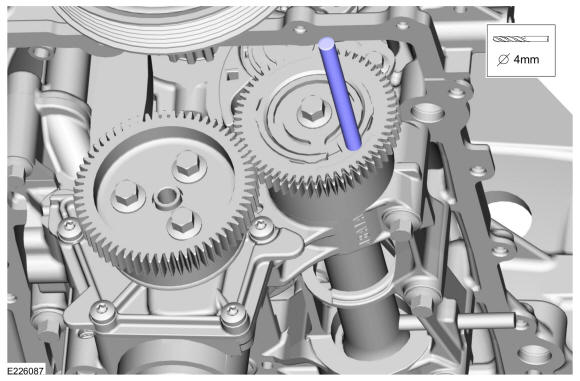

- Remove the 4 mm drill bit. Remove the General Equipment: 4 mm Drill Bit

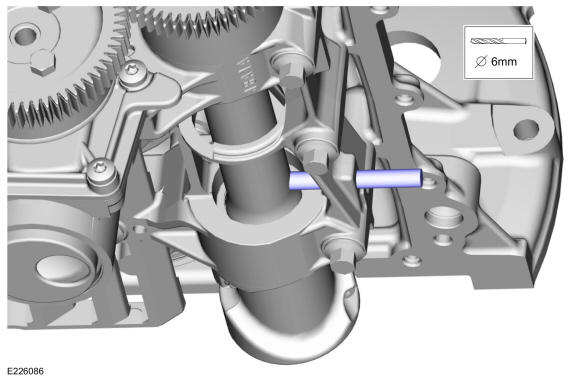

- Remove the 6 mm drill bit. Remove the General Equipment: 6 mm Drill Bit
-
NOTE: Make sure that the component is correctly installed.

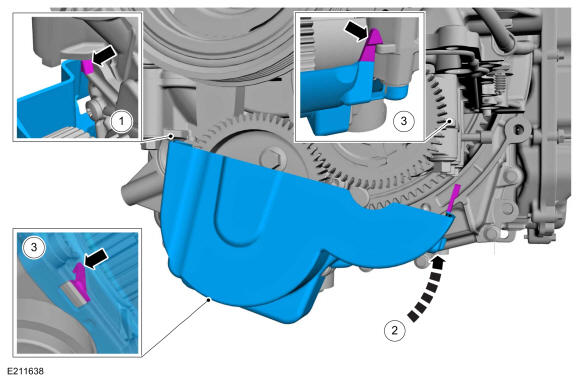

Install the oil pump cover.

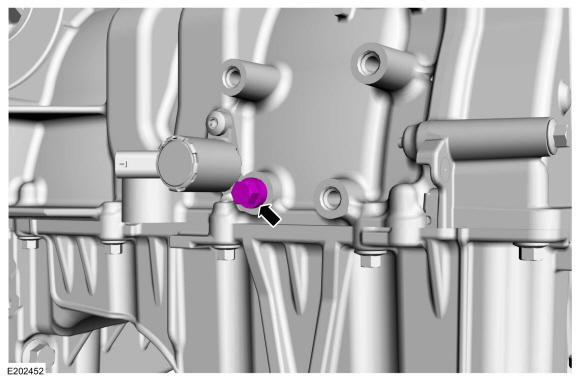

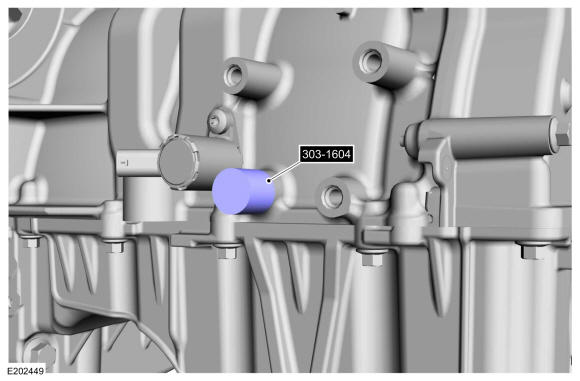

- Remove Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.
- Torque
177 lb.in (20 Nm)
- Install the oil pan. Refer to: Oil Pan .
