Oil Pressure Switch: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

- Install the oil pressure switch finger-tight.
  Torque Stage 1: 44 lb.in (5 Nm) Stage 2: 177 lb.in (20 Nm)

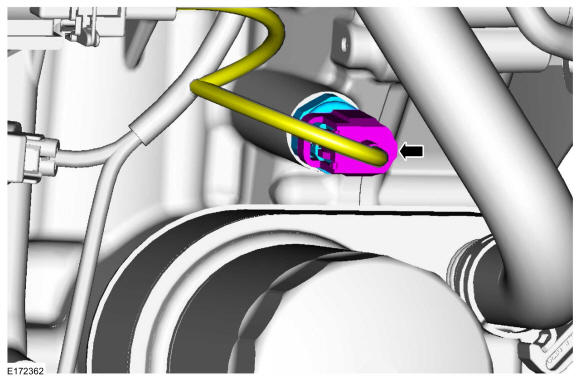

- Connect the oil pressure switch electrical connector.

Courtesy of FORD MOTOR COMPANY
