Oil Pan: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the catalytic converter. Refer to: Catalytic Converter .
WARNING: Be prepared to collect escaping fluid.

Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
WARNING: Be prepared to collect escaping fluid.

Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY

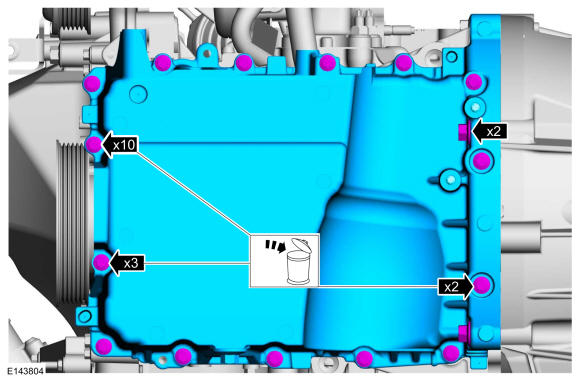

6-Speed Manual Transmission - 6MX65
Remove and discard the bolts.
- Remove the oil pan.
Courtesy of FORD MOTOR COMPANY

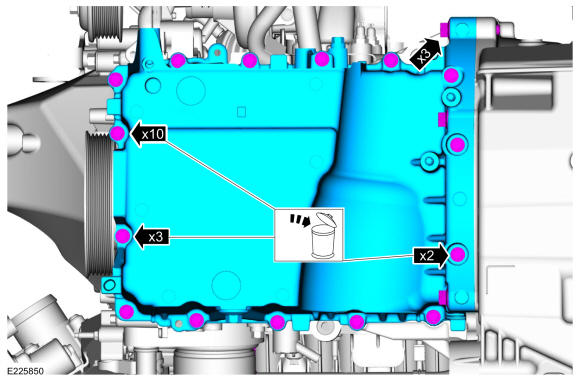

6-Speed Automatic Transmission - 6F15
Remove and discard the bolts.
- Remove the oil pan.
Courtesy of FORD MOTOR COMPANY

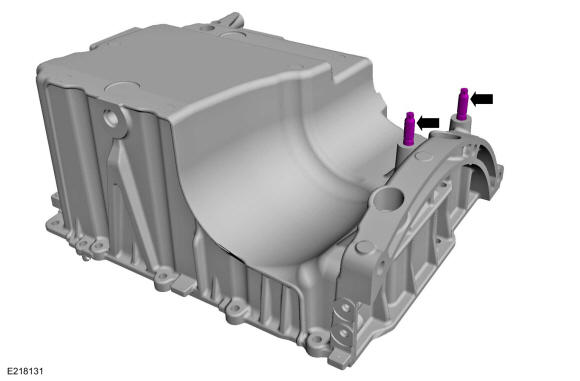

NOTE: This step is only necessary when installing a new component.

NOTE: Note the different lengths of the bolts.

Remove the studs.

Courtesy of FORD MOTOR COMPANY

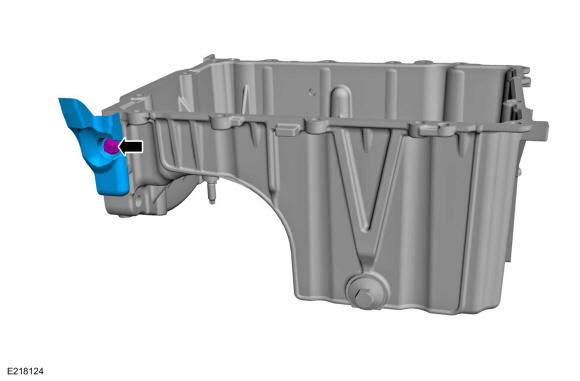

NOTE: This step is only necessary when installing a new component.

Remove the retainer and the shield.

Courtesy of FORD MOTOR COMPANY
- Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
