Oil Pan: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: This step is only necessary when installing a new component.NOTE: Note the different lengths of the bolts.
Install the studs.
Torque 89 lb.in (10 Nm)
- Install the shield and the retainer.
Torque 97 lb.in (11 Nm)
-
NOTE: The component must be installed within 10 minutes of applying the sealant.
Apply a 3.5 mm (0.137 in) bead of silicone sealant.
Material Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

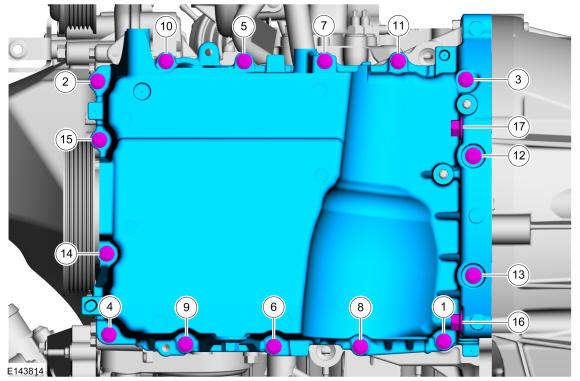

6-Speed Manual Transmission - 6MX65
-
- Install the oil pan and the bolts finger tight.
- Tighten the oil pan bolts in sequence shown.
Torque 1-15: 89 lb.in (10 Nm) 16-17: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY

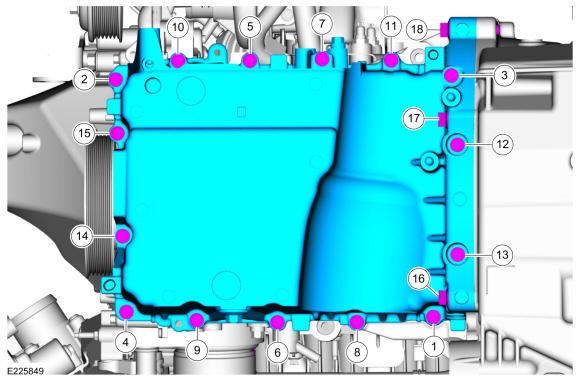

6-Speed Automatic Transmission - 6F15
-
- Install the oil pan and the bolts finger tight.
- Tighten the oil pan bolts in sequence shown.
Torque 1-15: 89 lb.in (10 Nm) 16-18: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
6-Speed Automatic Transmission - 6F15/6-Speed Manual Transmission - 6MX65
-
NOTE: Lubricate the engine oil filter seal with clean engine oil.
Install a new engine oil filter.
Torque 133 lb.in (15 Nm)
- Install the catalytic converter. Refer to: Catalytic Converter .
- Fill the engine with clean engine oil. Refer to: Specifications .
