Oil Cooler: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: Be prepared to collect escaping fluid.

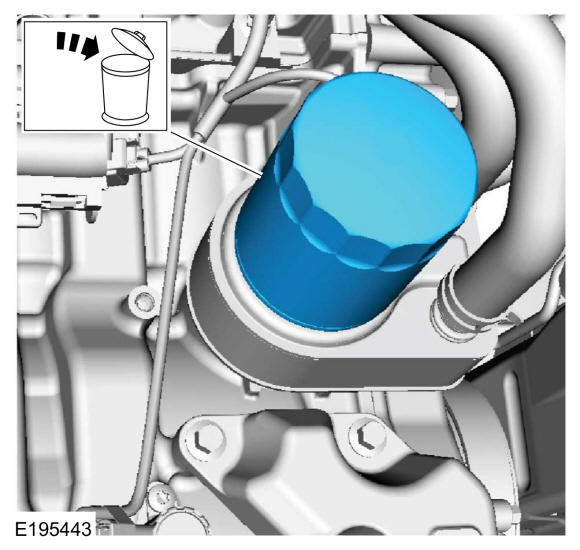

Remove and discard the engine oil filter.
-

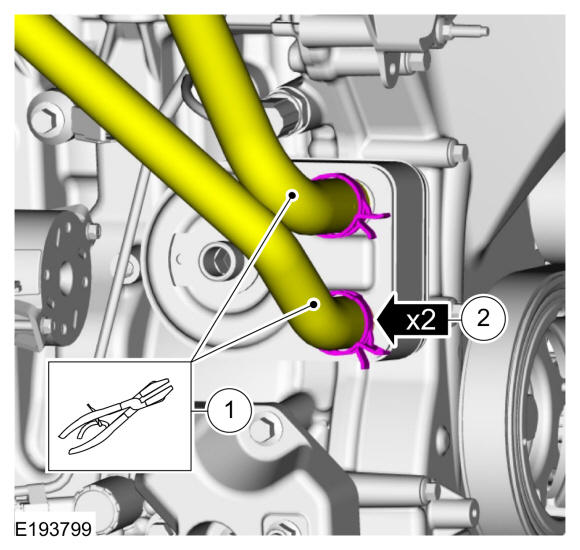

- Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
- Release the clamps and disconnect the oil cooler coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the bolt and the oil cooler.
-
NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to ENGINE
- Inspect the oil cooler.
