Oil Cooler: Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

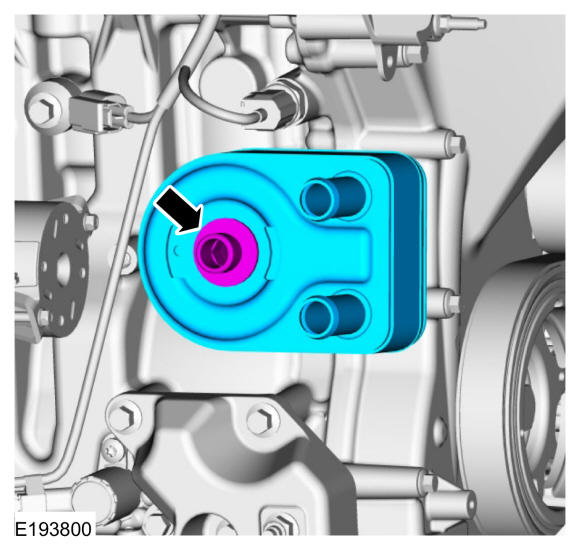

- Install the oil cooler and the bolt. Install the oil cooler and the bolt.
Torque 41 lb.ft (55 Nm)
-

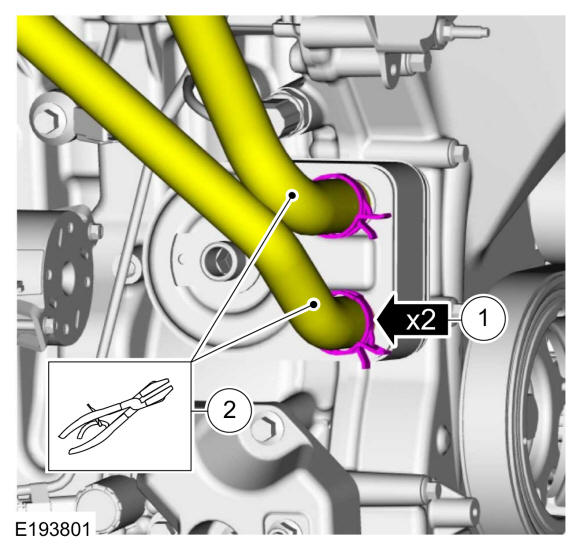

- Install the oil cooler coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the hose locking pliers.
-

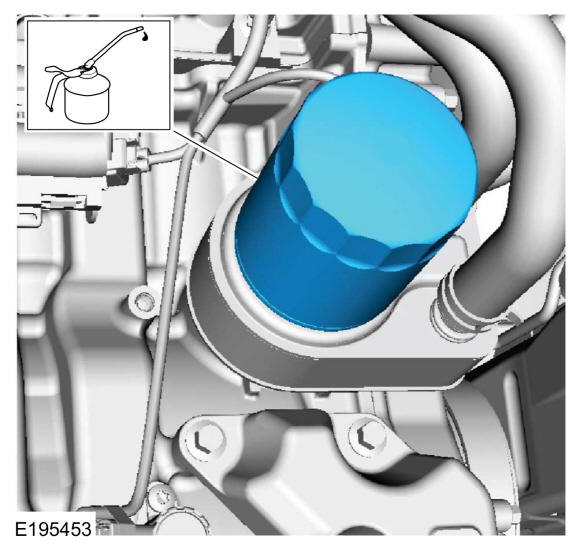

NOTE: Lubricate the engine oil filter seal with clean engine oil.
Install a new engine oil filter.
Torque 133 lb.in (15 Nm)
- Inspect and adjust the engine oil level. Refer to: Specifications .
- Bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
