Engine Mount: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the vacuum pump inlet tube coupling.

Courtesy of FORD MOTOR COMPANY
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

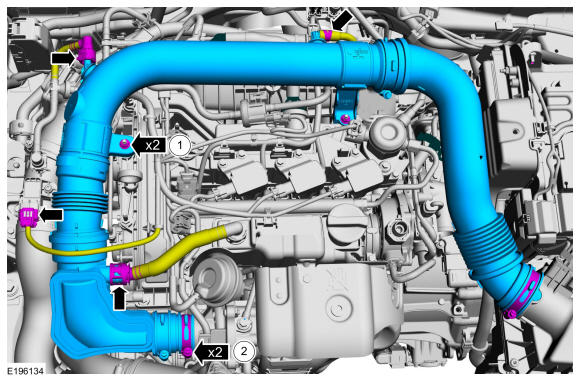

1. Loosen the air cleaner outlet pipe clamps, remove the nuts. Disconnect the vacuum tube from air outlet pipe. Use the General Equipment: Hose Clamp Remover/Installer
  Torque 1: 97 lb.in (11 Nm) 2: 44 lb.in (5 Nm)
2. Disconnect the fuel evaporative tube quick release coupling. Refer to: Quick Release Coupling .
3. Disconnect the PCV coupling.
4. Disconnect the MAP sensor electrical connector and remove the air cleaner outlet pipe assembly.
Courtesy of FORD MOTOR COMPANY

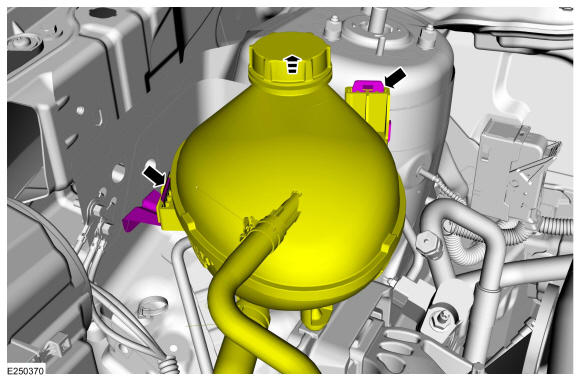

Release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
1. Disconnect the fuel evaporative tube quick release coupling. Refer to: Quick Release Coupling .
2. Remove the bolt.
  Torque 97 lb.in (11 Nm)

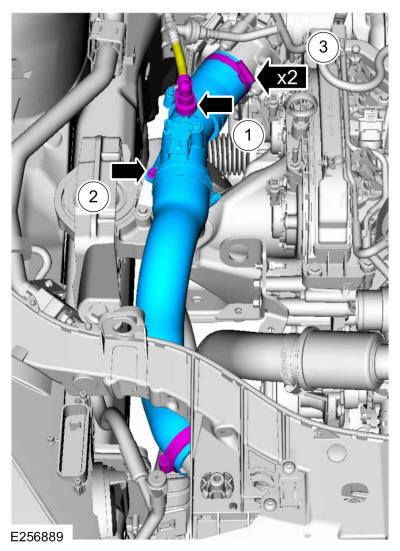

3. Loosen the clamps and remove the CAC outlet pipe.
  Torque 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Support the engine with a wood block and floor jack. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
1. Remove the nuts.
2. Remove the bolts and the engine mount.

Courtesy of FORD MOTOR COMPANY
