Engine Mount: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.

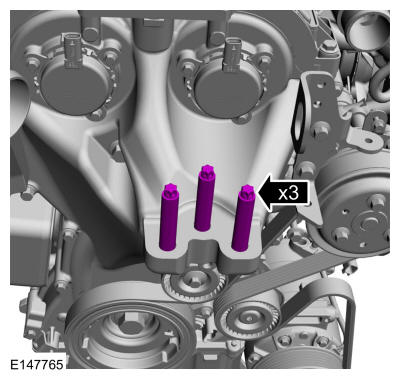

Tighten the engine mount studs.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the engine mount and the nuts.
  Torque 85 lb.ft (115 Nm)
2. NOTE: Only tighten the bolts finger tight at this stage.

  Install the engine mount bolts finger-tight.
Courtesy of FORD MOTOR COMPANY
Remove the floor jack and the wooden block. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Tighten the engine mount bolts.
Torque 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
