Engine Front Cover: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  3. Remove the following items:

    1. Refer to: Crankshaft Front Seal .
    2. Refer to: Valve Cover .
    3. Refer to: Catalytic Converter .
    4. Refer to: Generator - 1.0L EcoBoost (92kW/125PS) .

  4. NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

    1. Remove the bolt.

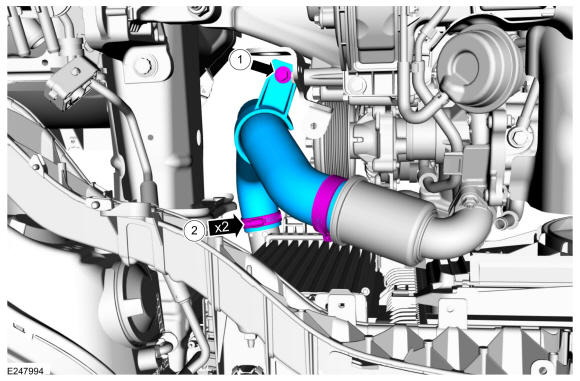

    2. Loosen the clamps and remove the CAC inlet pipe.

    GFD324872Courtesy of FORD MOTOR COMPANY
    1. Loosen the clamp.

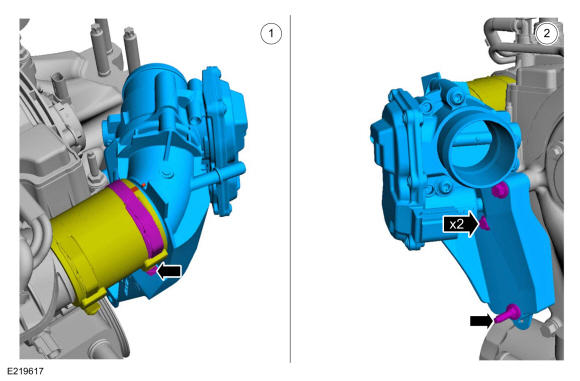

    2. Remove the fasteners and the throttle body/bracket assembly.
    GFD324873Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and the lifting eye.
    GFD324874Courtesy of FORD MOTOR COMPANY

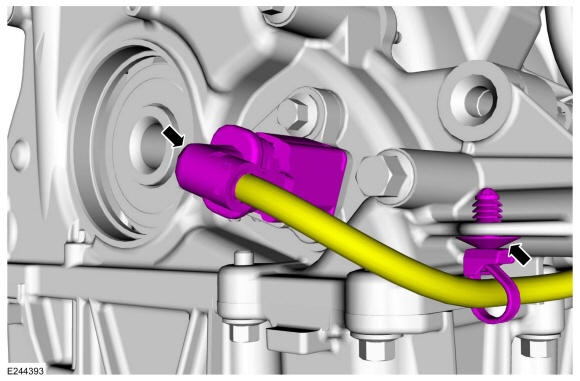

    1. Disconnect the CKP sensor electrical connector.
    2. Detach the wiring harness retainer.
    GFD324875Courtesy of FORD MOTOR COMPANY

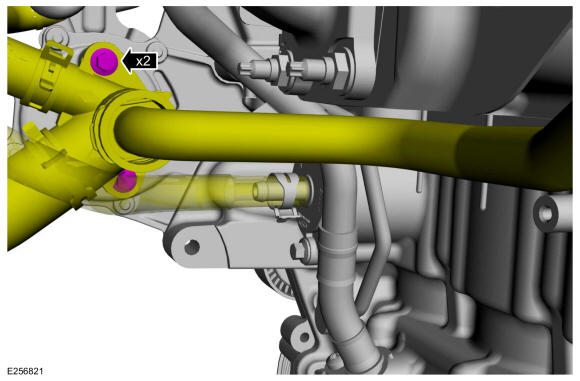

  8. Remove the bolts and separate the thermostat housing from the engine front cover.
    GFD324876Courtesy of FORD MOTOR COMPANY
  9. NOTE: Use a wooden block to protect the oil pan when supporting the engine.

    Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

    GFD324877Courtesy of FORD MOTOR COMPANY

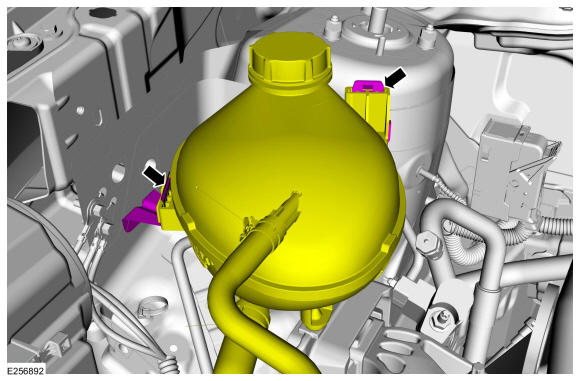

  10. Release the tabs and position the degas bottle aside.
    GFD324878Courtesy of FORD MOTOR COMPANY
    1. Remove the nuts.
    2. Remove the bolts and the engine mount.
    GFD324879Courtesy of FORD MOTOR COMPANY
  12. Remove Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.
    GFD324838Courtesy of FORD MOTOR COMPANY
  13. NOTE: Discard the bolts.

    Remove and discard the fasteners.

    • Remove the engine front cover.

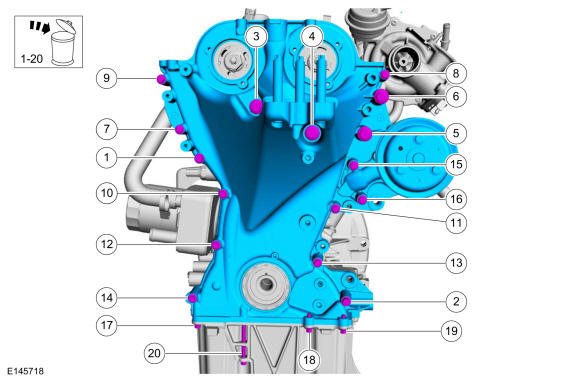

    Fig 1: Engine Front Cover Bolts Loosening Sequence
    GFD324880Courtesy of FORD MOTOR COMPANY

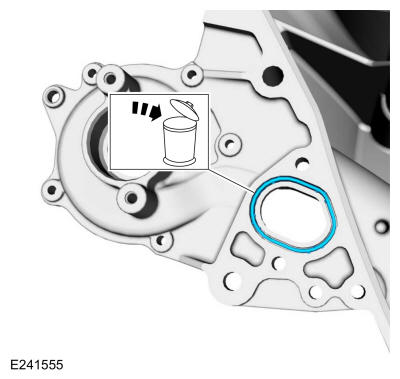

  14. Remove and discard the gasket.
    GFD324881Courtesy of FORD MOTOR COMPANY
  15. NOTE: This step is only necessary when installing a new component.

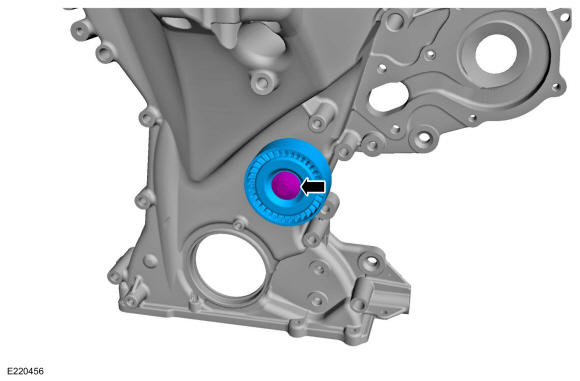

    Remove the bolt and the idler pulley.

    GFD324882Courtesy of FORD MOTOR COMPANY
  16. NOTE: This step is only necessary when installing a new component.

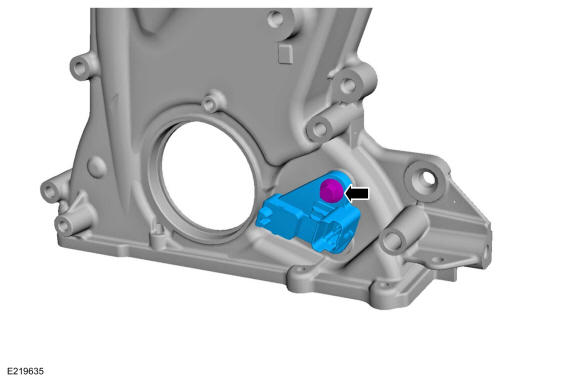

    Remove the bolt and the CKP sensor.

    GFD324883Courtesy of FORD MOTOR COMPANY
  17. NOTE: This step is only necessary when installing a new component.

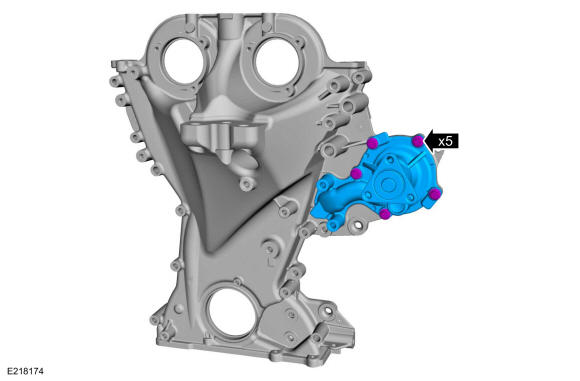

    Remove the bolts and the coolant pump.

    GFD324884Courtesy of FORD MOTOR COMPANY
  18. NOTE: This step is only necessary when installing a new component.

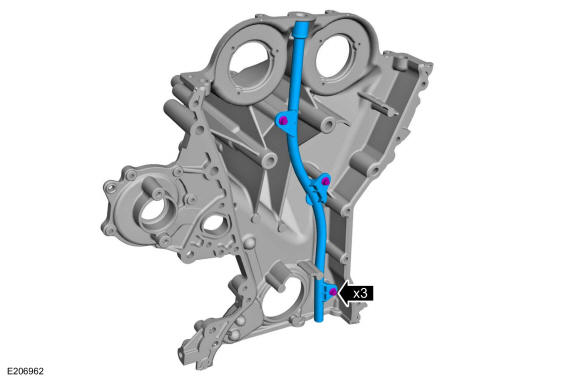

    Remove the bolts and the tube.

    GFD324885Courtesy of FORD MOTOR COMPANY

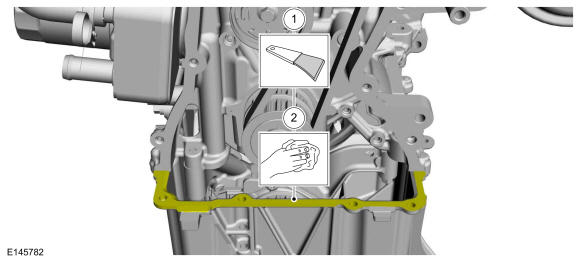

  19. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
    GFD324886Courtesy of FORD MOTOR COMPANY
  20. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .
GFD324887Courtesy of FORD MOTOR COMPANY
