Engine Front Cover: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary when installing a new component.

Install the tube and the bolts.

Torque 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

NOTE: Install all the bolts finger tight before final tightening.

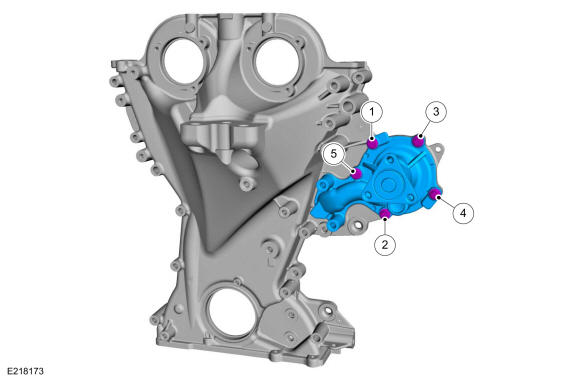

Install the coolant pump and the bolts.

Torque 89 lb.in (10 Nm)

Fig 1: Coolant Pump Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Install the CKP and the bolt.

Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Install the idler pulley and the bolt.

Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install a new gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

Apply beads of silicone sealant that are 4 mm (0.157 in) and 6 mm (0.236 in) as shown in the graphic.

Material Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

Apply beads of silicone sealant that are 4 mm (0.157 in) on the edge of the engine oil pan.

Material Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

NOTE: Note the different lengths of the bolts.
1. Torque
  1-2, M6x60: 44 lb.in (5 Nm) 3-6, M10x95: 89 lb.in (10 Nm) 7-16, M6x60: 44 lb.in (5 Nm)
2. Torque
  3-6: 30 lb.ft (40 Nm) 3-4: 52 lb.ft (70 Nm) 5-6: 52 lb.ft (70 Nm) 1-2: 80 lb.in (9 Nm) 7-16: 133 lb.in (15 Nm)
3. Torque
  3-4: 90 deg. 5-6: 90 deg. 1-2: 90 deg. 7-16: 90 deg. 17-19, M6x20: 89 lb.in (10 Nm) 20, M6x75: 89 lb.in (10 Nm)
4. Torque
  17-19: 89 lb.in (10 Nm) 20: 89 lb.in (10 Nm)
Fig 2: Engine Front Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Turn until resistance is felt.
2. Torque
  133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY
Tighten the RH engine mount studs.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the engine mount and the nuts.
  Torque 85 lb.ft (115 Nm)
2. NOTE: Only tighten the bolts finger tight at this stage.

  Install the engine mount bolts finger-tight.
Courtesy of FORD MOTOR COMPANY
Remove the General Equipment: Trolley JackRemove the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
Tighten the engine mount bolts.
Torque 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the degas bottle onto the tabs.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of foreign material.

Wipe clean the mating surfaces.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Make sure that the component is correctly installed.

  Install the throttle body/bracket assembly.
2. NOTE: Only tighten the bolts finger tight at this stage.

  Install the fasteners finger tight.
Courtesy of FORD MOTOR COMPANY
Tighten the fasteners and the clamp.
Torque 1-3: 89 lb.in (10 Nm) 4: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
Install the lifting eye and the bolts.
Torque 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY
Install the thermostat housing and bolts.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Connect the CKP sensor electrical connector.
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
1. Install the CAC inlet pipe and the bolt.
  Torque 97 lb.in (11 Nm)
2. Tighten the clamps.
  Torque 44 lb.in (5 Nm)
Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Generator - 1.0L EcoBoost (92kW/125PS) .
2. Refer to: Catalytic Converter .
3. Refer to: Crankshaft Front Seal .
4. Refer to: Valve Cover .
NOTE: Be prepared to collect escaping fluid.

Remove the drain plug, drain engine oil and install drain plug. Use the General Equipment: Oil Drain Equipment

Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the engine oil filter seal with clean engine oil.

Install a new engine oil filter.

Torque 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
