Cylinder Head: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

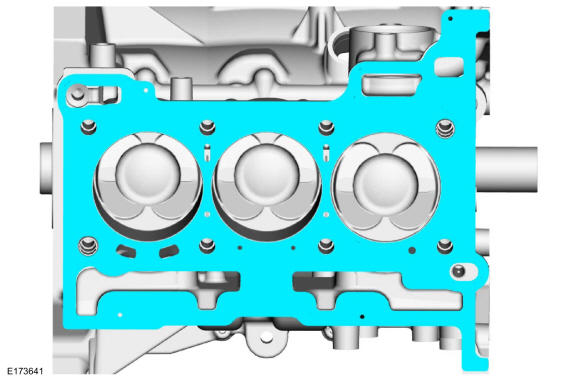

Install the cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no fluids are present in the cylinder head bolt threaded bores.
1. Install the cylinder head.
2. NOTE: Make sure that new bolts are installed.

  NOTE: Only tighten the bolts finger tight at this stage.

  Install the cylinder head bolts.
3. Tighten the cylinder head bolts in sequence shown. Use the General Equipment: Polydrive Bit Socket
  Torque Stage 1: 89 lb.in (10 Nm) Stage 2: 30 lb.ft (40 Nm) Stage 3: Loosen: 45 deg. Stage 4: 22 lb.ft (30 Nm) Stage 5: 90 deg. Stage 6: 90 deg.
Fig 1: Cylinder Head Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Attach vacuum harness retainer.

Courtesy of FORD MOTOR COMPANY
Position the thermostat housing and install the bolts.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Position the coolant hose and connect the coupling.

Courtesy of FORD MOTOR COMPANY
Install the PCM. Refer to: Powertrain Control Module (PCM) .
If equipped, connect the CHT sensor electrical connector and attach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
Position the ground wire and install the bolt.
Torque 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Refer to: Valve Tappets .
2. Refer to: Intake Manifold .
3. Refer to: Turbocharger .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
