Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Flexplate. Refer to: Flexplate .
    2. Oil pan. Refer to: Oil Pan .

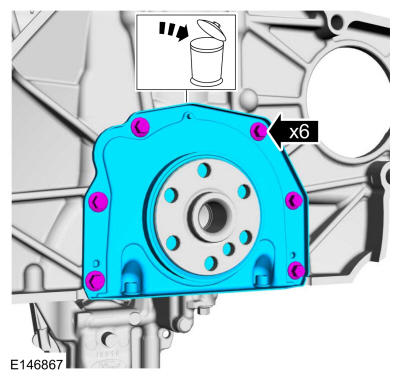

  3. Remove the bolts.

    • Remove and discard the crankshaft rear seal.

GFD324861Courtesy of FORD MOTOR COMPANY
