Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTE: Do not discard the original bolt until after the crankshaft seal is removed.

Remove the crankshaft pulley. Refer to: Crankshaft Pulley .

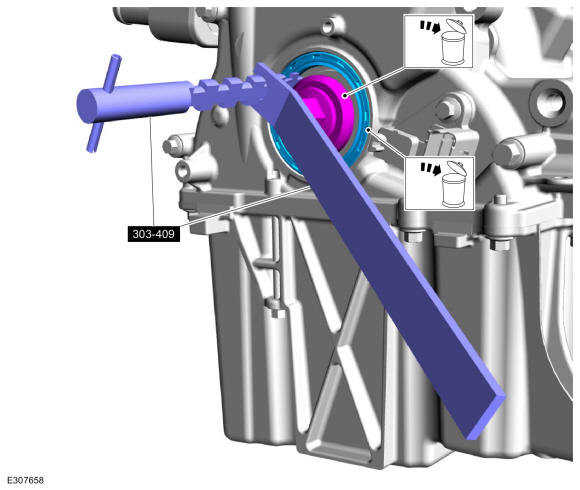

1. Install the original crankshaft pulley bolt.
2. Remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
3. Remove and discard the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY
