Section 53 (Engine - 1.0L ECOBOOST (92KW/125PS)): Disassembly: Engine

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1602Locking Tool, Crankshaft
Courtesy of FORD MOTOR COMPANY	303-1611Torque Multiplier
Courtesy of FORD MOTOR COMPANY	303-1611-01Adapter for 303-1611
Courtesy of FORD MOTOR COMPANY	303-1611-02Adapter for 303-1611, Torque MultiplierTKIT-2014A-FLTKIT-2014A-ROW
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH)Remover, Crankshaft SealTKIT-1992-FH/FMH/FLMHTKIT-1993-LMH/MH
Courtesy of FORD MOTOR COMPANY	307-005 (T59L-100-B)Slide Hammer
Courtesy of FORD MOTOR COMPANY	310-206Remover, Fuel InjectorTKIT-2009A-FLM
Lifting Bracket
Floor Crane
Mounting Stand
Polydrive Bit Socket
Hot Air Gun
Hose Clamp Remover/Installer
4 mm Drill Bit

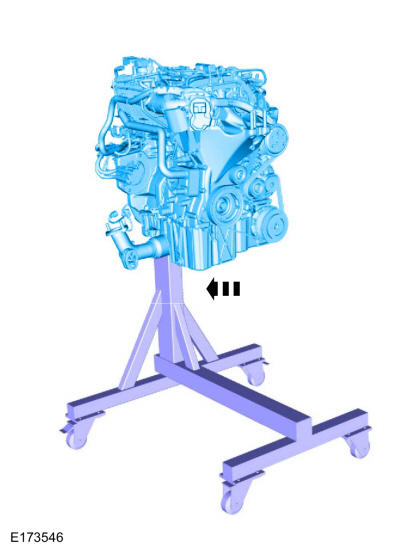

1. Install engine on the mounting stand. Use the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

2. Remove the General Equipment: Lifting BracketRemove the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

3. 1. Disconnect the EVAP canister purge valve electrical connector.
   2. Disconnect the quick release coupling. Refer to: Quick Release Coupling .
   3. Detach the retainers and remove the EVAP canister purge valve.

   Courtesy of FORD MOTOR COMPANY

4. 1. Disconnect the engine wiring harness electrical connectors.
   2. Detach the engine wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

5. Detach the wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

6. 1. Position the protective cover aside.
   2. Remove the generator nut.

   Courtesy of FORD MOTOR COMPANY

7. 1. Disconnect the generator wiring harness terminal.
   2. Disconnect the engine wiring harness electrical connector.
   3. Detach the engine wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

8. 1. Disconnect the engine wiring harness electrical connector.
   2. Detach the engine wiring harness retainers.

   Courtesy of FORD MOTOR COMPANY

9. 1. Disconnect the oil control solenoid electrical connector.
   2. Detach the wiring harness retainer.

   Courtesy of FORD MOTOR COMPANY

10. 1. Disconnect the oil pressure switch, the KS.
    2. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

11. Detach the engine wiring harness retainers and remove the wiring harness from the engine.

    Courtesy of FORD MOTOR COMPANY

12. 1. Remove the nuts.
    2. Disconnect the vacuum hoses. Use the General Equipment: Hose Clamp Remover/Installer
    3. Detach the vacuum hose retainers and remove the vacuum hose assembly from the engine.

    Courtesy of FORD MOTOR COMPANY

13. Remove the bolts and the engine lifting bracket.

    Courtesy of FORD MOTOR COMPANY

14. Remove the bolts and the coolant pump pulley.

    Courtesy of FORD MOTOR COMPANY

15. WARNING: Take extra care when handling the compressed spring.

    Remove the bolts and the accessory drive belt tensioner. Use the General Equipment: 4 mm Drill Bit

    Courtesy of FORD MOTOR COMPANY

16. Remove the bolts and the generator.

    Courtesy of FORD MOTOR COMPANY

17. Remove the bolt and the accessory drive belt idler pulley.

    Courtesy of FORD MOTOR COMPANY

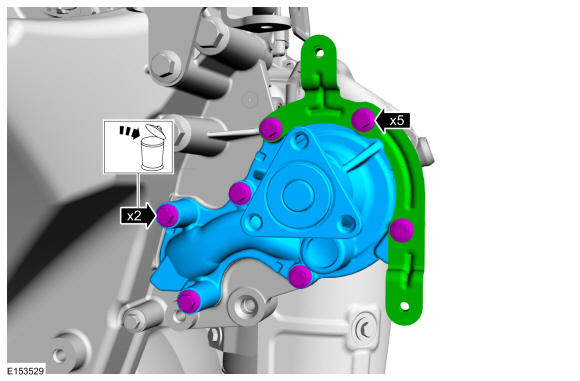

18. 1. NOTE: Brackets may vary, typical bracket shown.

       Remove the bolts, the bracket and the coolant pump.

    2. Discard the indicated bolts.

    Courtesy of FORD MOTOR COMPANY

19. 1. Disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Detach the coolant hose from the retainers.
    3. Remove the bolts and the coolant hose assembly.

    Courtesy of FORD MOTOR COMPANY

20. Remove the fasteners and the bracket.

    Courtesy of FORD MOTOR COMPANY

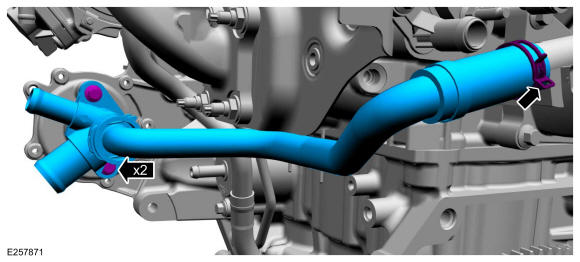

21. 1. Remove the bolts.
    2. Release the clamp and remove the coolant hose assembly. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

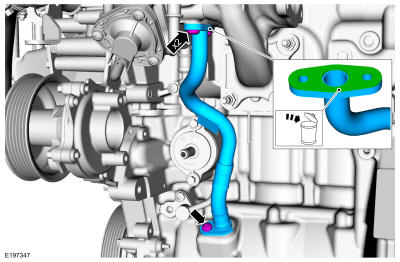

22. NOTE: Inspect the O-ring seal on the turbocharger drain tube. Replace the turbocharger drain tube, if necessary.
    1. Remove the retainers and the turbocharger oil drain tube.
    2. Remove and discard the gasket.

    Courtesy of FORD MOTOR COMPANY

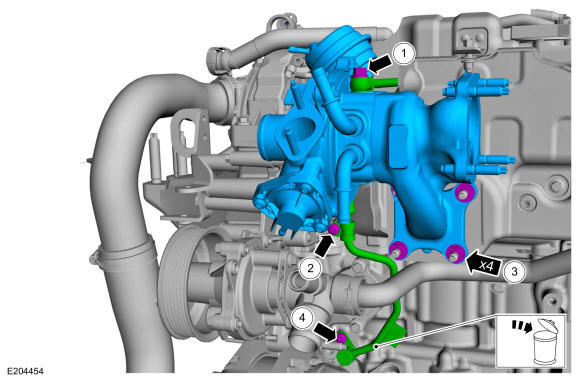

23. 1. Remove the TC oil supply tube banjo bolt.
    2. Remove the TC oil supply tube bracket bolt.
    3. Remove the nuts and the TC assembly.
    4. Remove the bolt and discard the TC oil supply tube (includes banjo bolt).

    Courtesy of FORD MOTOR COMPANY

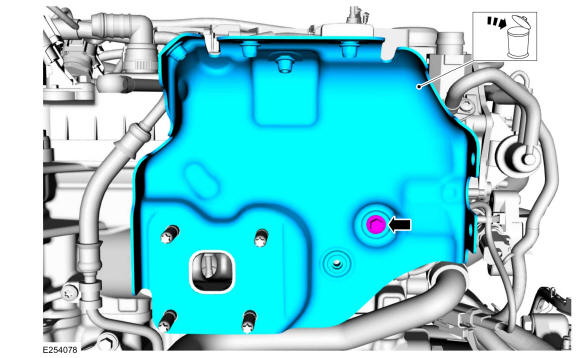

24. 1. Remove the bolt and the heat shield.
    2. Discard the heat shield.

    Courtesy of FORD MOTOR COMPANY

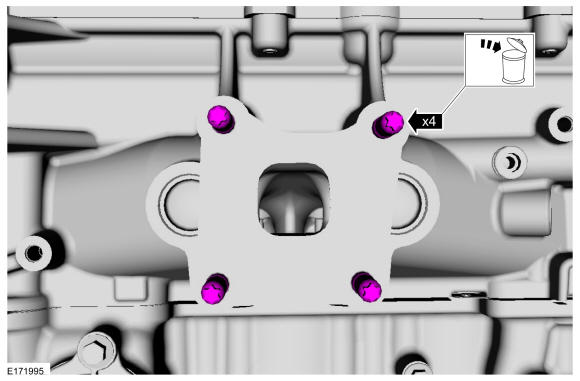

25. Remove and discard the studs.

    Courtesy of FORD MOTOR COMPANY

26. Remove the stud bolts and the vacuum pump.

    Courtesy of FORD MOTOR COMPANY

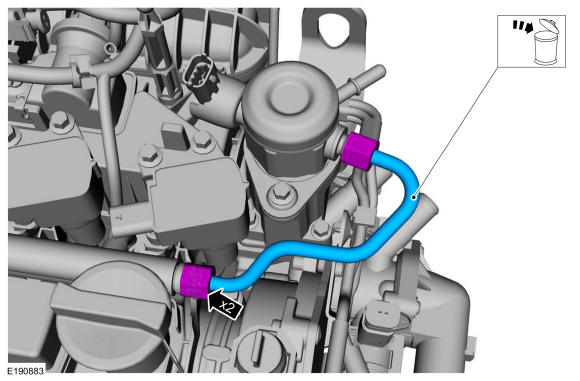

27. Remove and discard the high pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

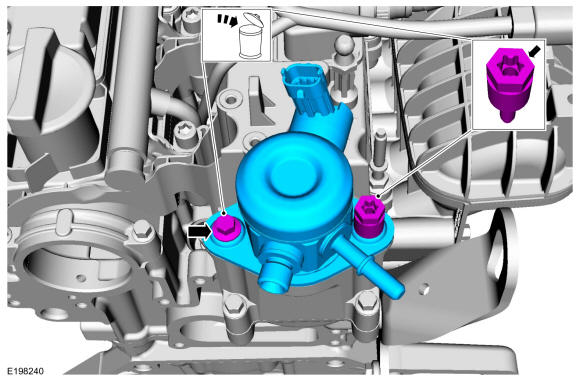

28. 1. Loosen each bolt one turn at a time until all bolts are removed.
    2. Discard the bolts.
    3. Remove the high pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

29. Remove the high-pressure fuel pump tappet.

    Courtesy of FORD MOTOR COMPANY

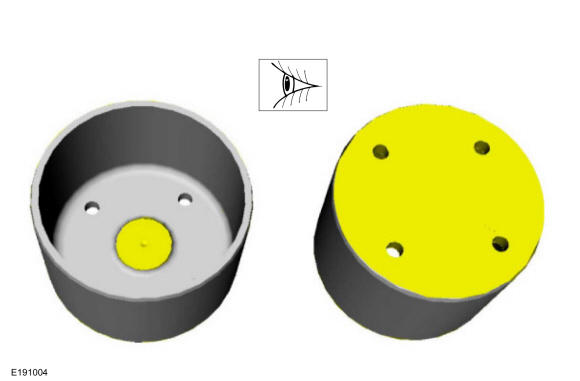

30. Inspect the high-pressure fuel pump tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the fuel pump tappet drive lobe. Install new components as needed.

    Courtesy of FORD MOTOR COMPANY

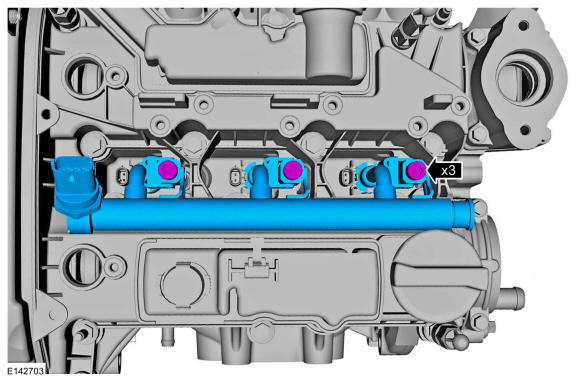

31. Remove the bolts and the ignition coil-on-plugs.

    Courtesy of FORD MOTOR COMPANY

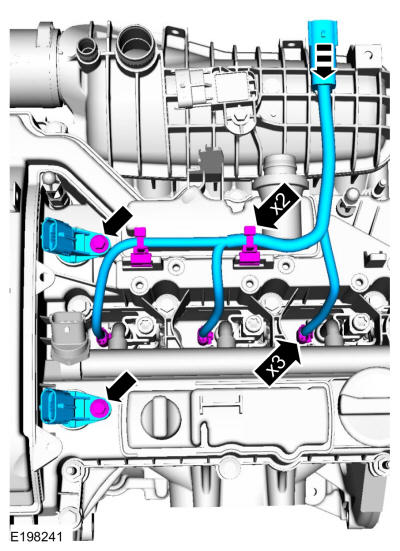

32. 1. Remove the retainers and the CMP sensors.
    2. Detach the retainers, disconnect the fuel injector electrical connectors and remove the wire harness.

    Courtesy of FORD MOTOR COMPANY

33. NOTE: Pull out the fuel rails in the direction of the fuel injector axis or damage may occur to the fuel injectors.
    NOTE: Use regulated low pressure compressed air to remove any dirt or foreign material from the cylinder head, block and general surrounding area of the fuel rail and the fuel injectors.
    NOTE: When removing the fuel rails, the fuel injectors may remain in the cylinder head and require the use of a Fuel Injector Remover tool to extract.

    Remove the bolts and the fuel rail.

    Courtesy of FORD MOTOR COMPANY

34. NOTE: Take extra care when handling the components.
    NOTE: Make sure that the component is clean, free of foreign material and lubricant.
    NOTE: Only use moderate force.

    Remove any of the fuel injectors that remained in the fuel rail.

    Courtesy of FORD MOTOR COMPANY

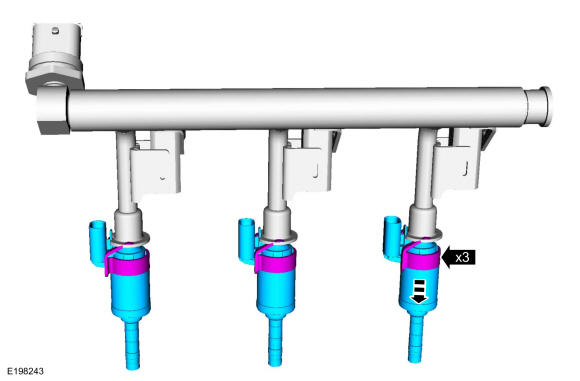

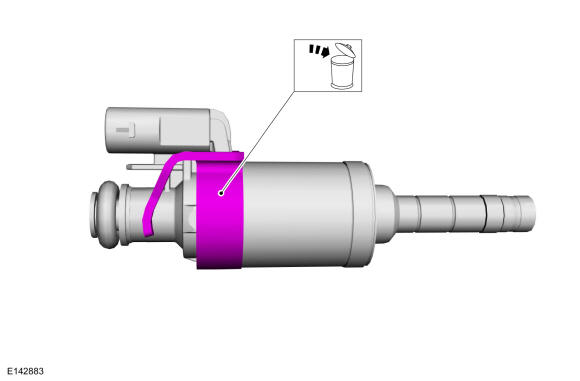

35. NOTE: Take extra care when handling the components

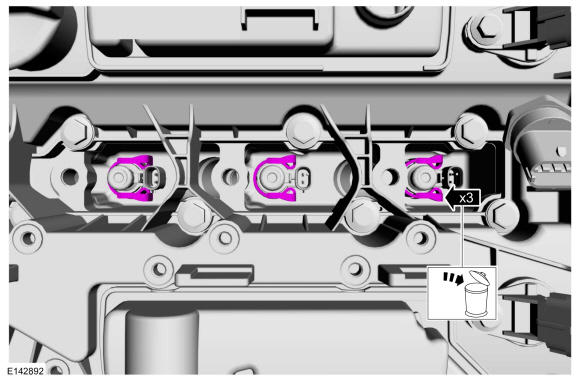

    Remove and discard the fuel injector clip.

    Courtesy of FORD MOTOR COMPANY

36. NOTE: This step is only necessary if the component remains in the cylinder head.

    Remove and discard the fuel injector clips.

    Courtesy of FORD MOTOR COMPANY

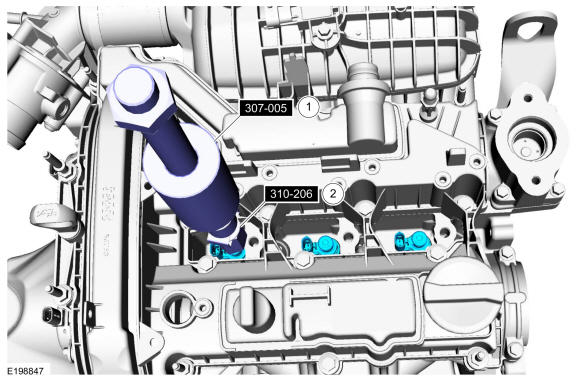

37. NOTE: Use minimal force to remove the fuel injectors that remained in the cylinder head with the fuel injector remover tool or damage to the fuel injector assembly may occur. Wiggling the injector by hand to break it loose may allow the injector to be removed by hand.
    NOTE: This step is only necessary if the component remains in the cylinder head.

    Using the special tools, remove any of the fuel injectors that remained in the cylinder head.

    • Use Special Service Tool: 307-005 (T59L-100-B) Slide Hammer.
    • Use Special Service Tool: 310-206 Remover, Fuel Injector.

    Courtesy of FORD MOTOR COMPANY

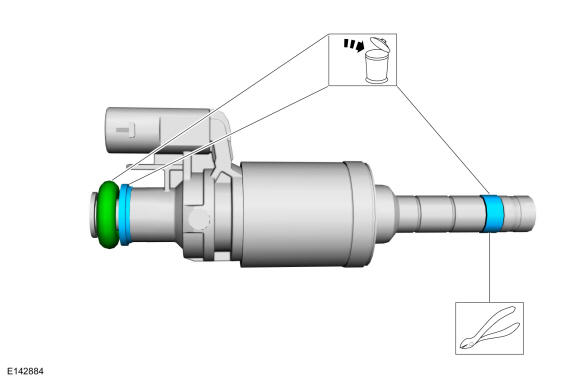

38. NOTE: Take extra care when handling the components
    NOTE: Make sure that the component is clean, free of foreign material and lubricant.

    Remove and discard the fuel injector seal, washer and O-ring seal.

    Courtesy of FORD MOTOR COMPANY

39. Remove the crankcase vent tube.

    Courtesy of FORD MOTOR COMPANY

40. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Remove the bolts, studs and the intake manifold.

    Courtesy of FORD MOTOR COMPANY

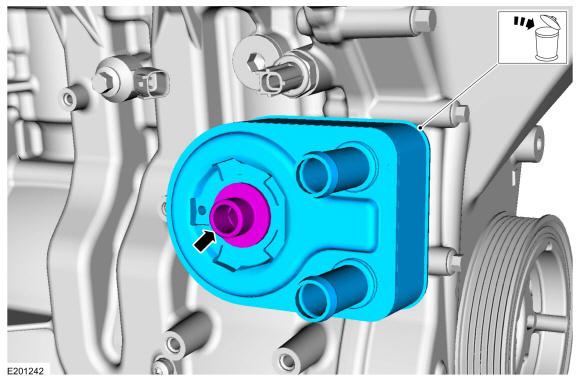

41. NOTE: A new oil cooler must be installed or severe damage to the engine occur.
    1. Remove the bolt and the oil cooler.
    2. Discard the oil cooler.

    Courtesy of FORD MOTOR COMPANY

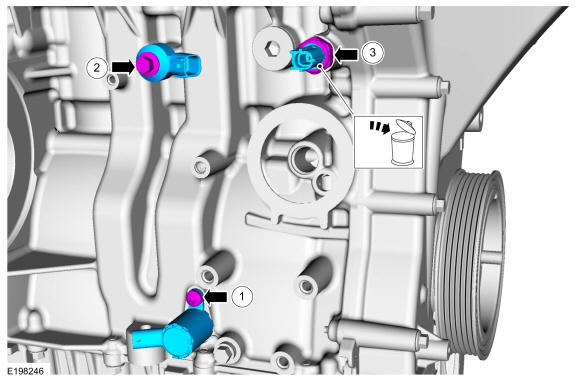

42. 1. Remove the retainer and the oil pump control solenoid.
    2. NOTE: Note the position of the component before removal.

       Remove the bolts and the KS.

    3. Remove and discard the oil pressure switch.

    Courtesy of FORD MOTOR COMPANY

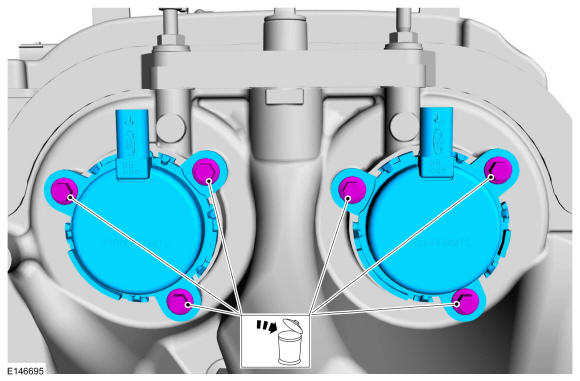

43. Remove the bolts and the VCT solenoids.

    Courtesy of FORD MOTOR COMPANY

44. Remove the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

45. Remove the studs, bolts and the valve cover.

    Courtesy of FORD MOTOR COMPANY

46. Inspect the valve cover gasket, replace if necessary.

    Courtesy of FORD MOTOR COMPANY

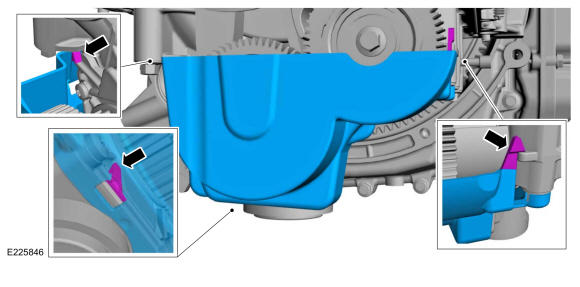

47. If equipped, remove the retainer and the shield.

    Courtesy of FORD MOTOR COMPANY

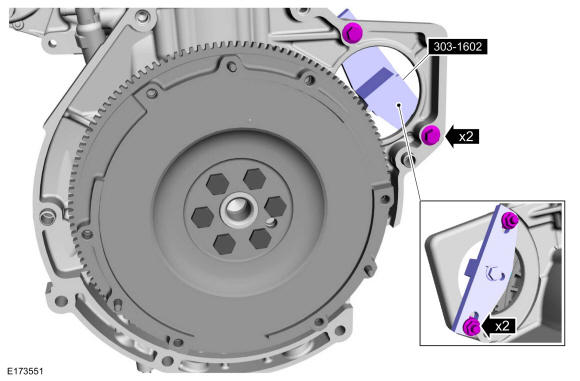

48. NOTE: Flywheel shown, flexplate similar

    Install Special Service Tool: 303-1602 Locking Tool, Crankshaft.

    Courtesy of FORD MOTOR COMPANY

49. 1. M8x30
    2. M8x25 Install Special Service Tool: 303-1611-02 Adapter for 303-1611, Torque Multiplier.

       Torque 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

50. Install Special Service Tool: 303-1611-01 Adapter for 303-1611.

    Torque 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

51. NOTE: Only tighten the nut finger tight at this stage.

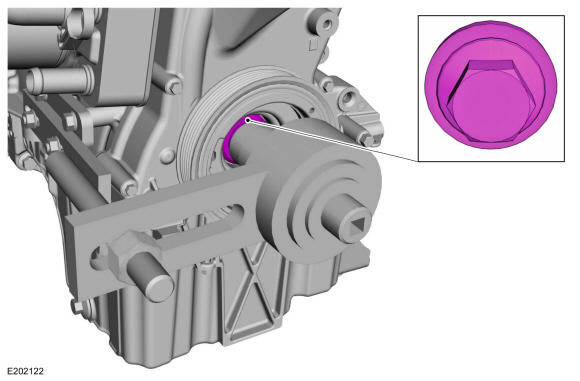

    Install Special Service Tool: 303-1611 Torque Multiplier.

    Courtesy of FORD MOTOR COMPANY

52. Loosen: 5 turn(s)

    Courtesy of FORD MOTOR COMPANY

53. Remove Special Service Tool: 303-1611 Torque Multiplier.

    Courtesy of FORD MOTOR COMPANY

54. 1. Remove the crankshaft bolt.
    2. Remove the crankshaft pulley.
    3. NOTE: The production engine is not equipped with a friction washer. Whenever the crankshaft pulley is removed, a friction washer (base part number 6378) must be installed.

       If equipped, remove and discard the friction washer.

    Courtesy of FORD MOTOR COMPANY

55. Remove Special Service Tool: 303-1611-01 Adapter for 303-1611.

    Courtesy of FORD MOTOR COMPANY

56. Remove Special Service Tool: 303-1611-02 Adapter for 303-1611, Torque Multiplier.

    Courtesy of FORD MOTOR COMPANY

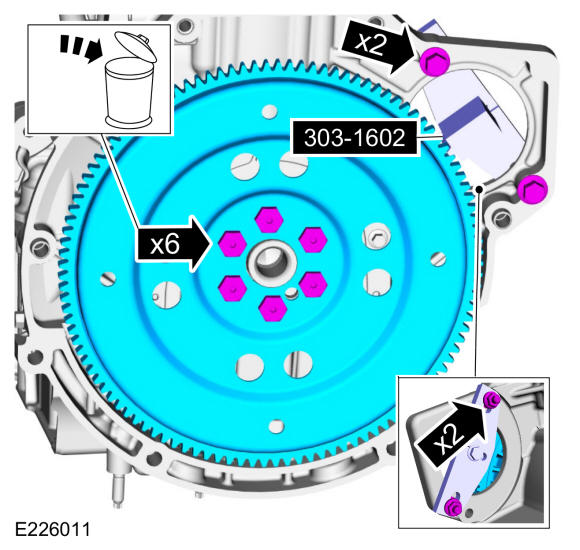

57. 1. Install Special Service Tool: 303-1602 Locking Tool, Crankshaft.
    2. Remove and discard the bolts.
    3. Remove flywheel or flexplate.
    4. Remove Special Service Tool: 303-1602 Locking Tool, Crankshaft.

    Courtesy of FORD MOTOR COMPANY

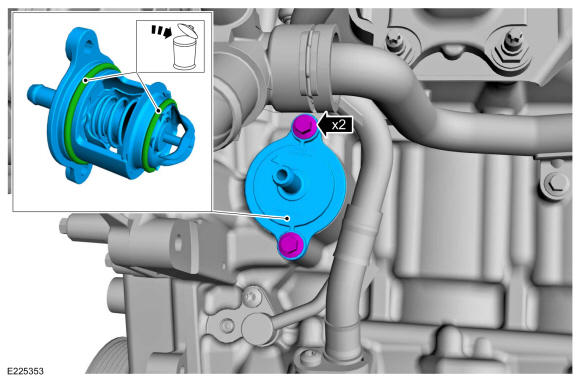

58. 1. Remove the bolts and the thermostat.
    2. Remove and discard the O-ring seals.

    Courtesy of FORD MOTOR COMPANY

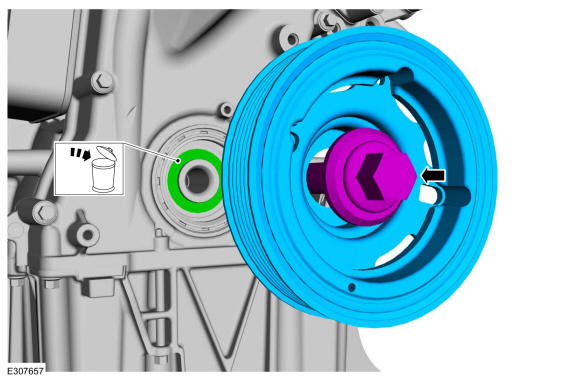

59. 1. Install the original crankshaft pulley bolt.
    2. Remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. Remove and discard the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

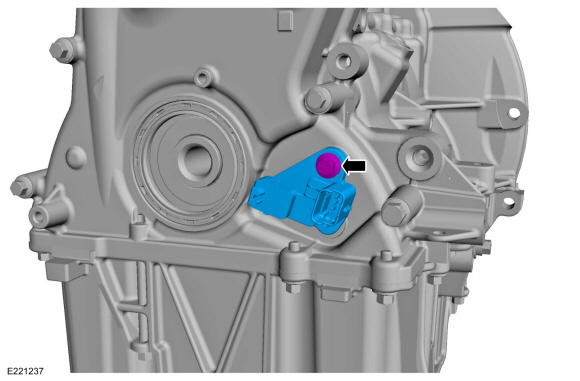

60. Remove the bolt and the CKP sensor.

    Courtesy of FORD MOTOR COMPANY

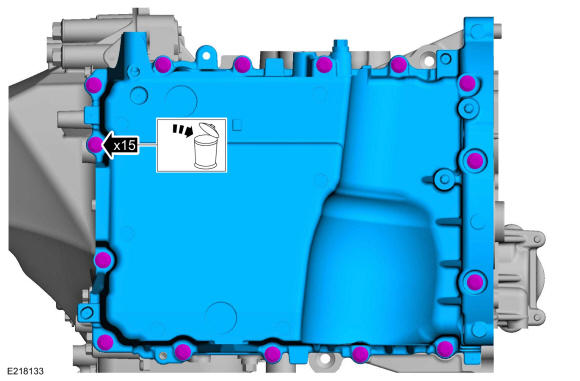

61. 1. Remove and discard the bolts.
    2. Remove the oil pan.

    Courtesy of FORD MOTOR COMPANY

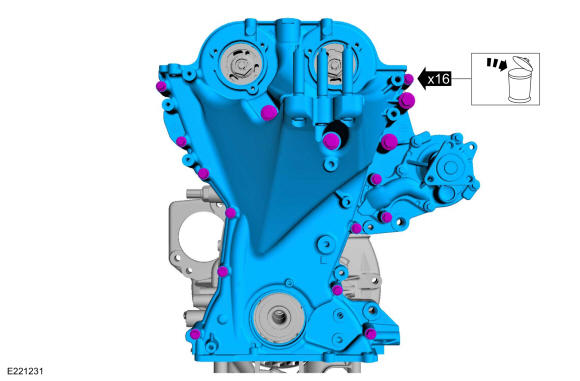

62. 1. Remove and discard the bolts.
    2. Remove the engine front cover.

    Courtesy of FORD MOTOR COMPANY

63. Remove and discard the gasket.

    Courtesy of FORD MOTOR COMPANY

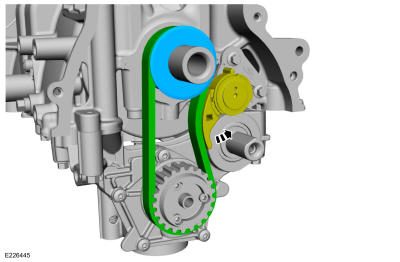

64. WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.
    • Rotate the timing belt tensioner clockwise.
    • Install a suitable locking pin.
    • Remove timing belt.

    Courtesy of FORD MOTOR COMPANY

65. WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

    Remove the bolt and the tensioner.

    Courtesy of FORD MOTOR COMPANY

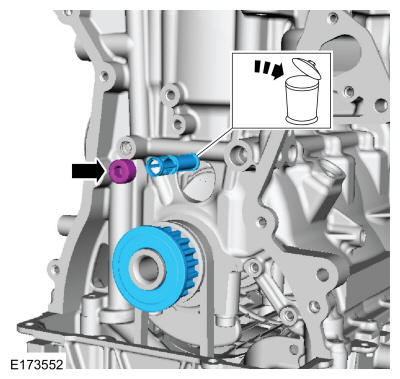

66. 1. NOTE: Note the position of the component before removal.

       Remove the bolt, remove and discard the oil supply filter.

    2. Remove the timing drive pulley.

    Courtesy of FORD MOTOR COMPANY

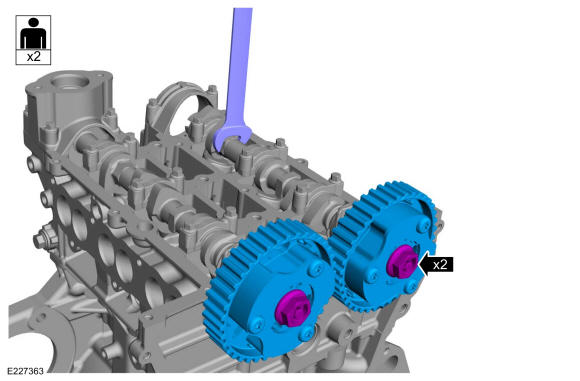

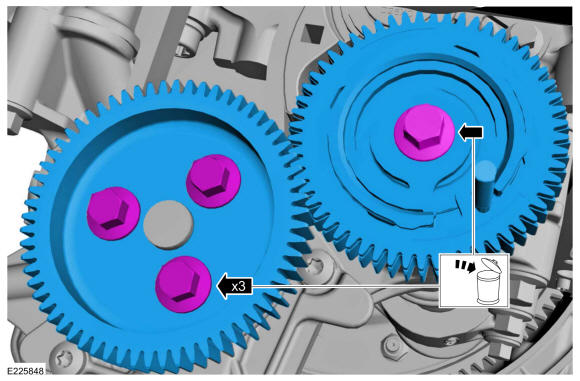

67. NOTE: Use an open-ended wrench to prevent the component from turning.

    Remove the bolts and the VCT units.

    Courtesy of FORD MOTOR COMPANY

68. NOTE: Note the position of the components before removal.
    NOTE: Use a heat gun to soften the flange sealant, this will aid in the removal of the rear camshaft caps. Failure to follow these directions may result in damage to the camshaft caps.
    NOTE: Inspect the camshaft bores for any scratches that can be felt by hand.

    Loosen the camshaft bearing caps bolts in sequence, 2 turns at a time until all tension is released from the camshaft bearing caps and remove the bolts, caps and the camshafts. Use the General Equipment: Hot Air Gun

    Courtesy of FORD MOTOR COMPANY

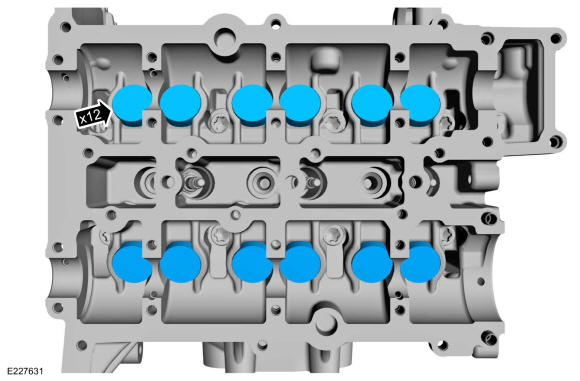

69. NOTE: Note the position of the components before removal.

    Remove the valve tappets.

    Courtesy of FORD MOTOR COMPANY

70. 1. Using a Polydrive #10 bit, remove and discard the cylinder head bolts. Use the General Equipment: Polydrive Bit Socket
    2. Remove the cylinder head.

    Courtesy of FORD MOTOR COMPANY

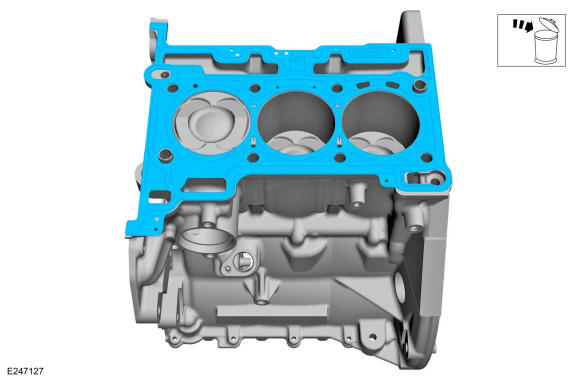

71. Remove and discard the cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

    Refer to About This Information

    Courtesy of FORD MOTOR COMPANY

72. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .
73. Check the cylinder block distortion. Refer to: Cylinder Block Distortion .

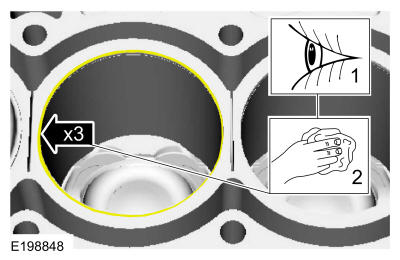

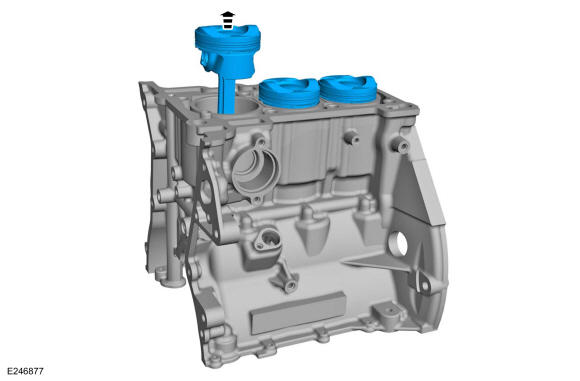

74. 1. Before removing the pistons, inspect the top of the cylinder bores.
    2. NOTE: Do not scratch the cylinder wall, remove all debris from the cylinder.

       If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

    Courtesy of FORD MOTOR COMPANY

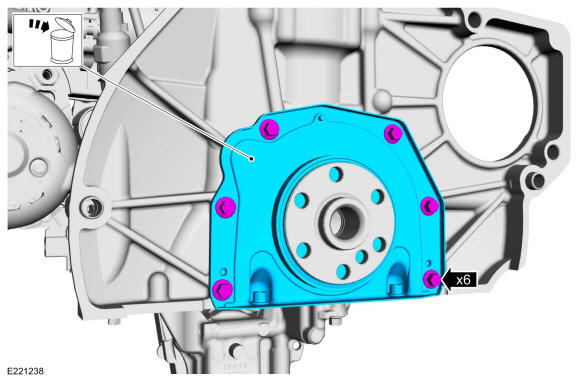

75. • Remove the bolts and the crankshaft rear seal.
    • Discard the crankshaft rear seal.

    Courtesy of FORD MOTOR COMPANY

76. NOTE: Take extra care when handling the component.

    Remove the oil pump cover.

    Courtesy of FORD MOTOR COMPANY

77. Install a 4 mm drill bit into the balance shaft gear. Use the General Equipment: 4 mm Drill Bit

    Courtesy of FORD MOTOR COMPANY

78. Remove and discard the bolts.
    • Remove the oil pump and balance shaft gears.

    Courtesy of FORD MOTOR COMPANY

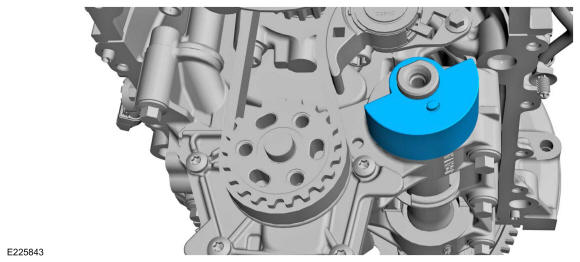

79. Remove the balance shaft weight.

    Courtesy of FORD MOTOR COMPANY

80. 1. Using a suitable tool, rotate the oil pump belt tensioner.
    2. Remove the oil pump belt.
    3. NOTE: Note the position of the component before removal.

       Remove the oil pump drive pulley.

    Courtesy of FORD MOTOR COMPANY

81. Remove the bolts and the oil pump belt tensioner.

    Courtesy of FORD MOTOR COMPANY

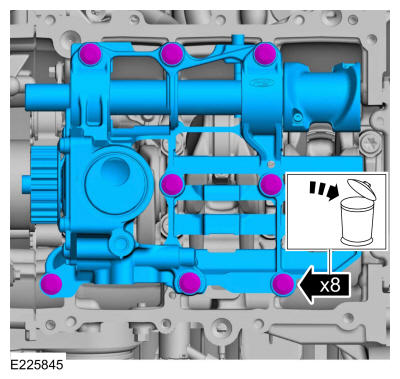

82. NOTE: Discard the bolts.

    Remove the bolts and the oil pump.

    Courtesy of FORD MOTOR COMPANY

83. Remove the alignment dowels.

    Courtesy of FORD MOTOR COMPANY

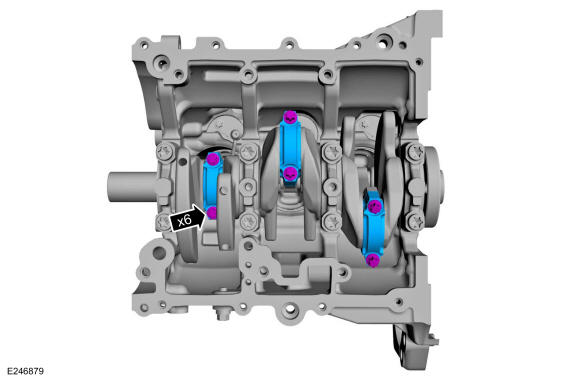

84. NOTE: Note the position of the components before removal.

    Remove the bolts and the connecting rod caps.

    Courtesy of FORD MOTOR COMPANY

85. NOTE: Note the position of the components before removal.
    NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.

    Remove the pistons.

    Courtesy of FORD MOTOR COMPANY

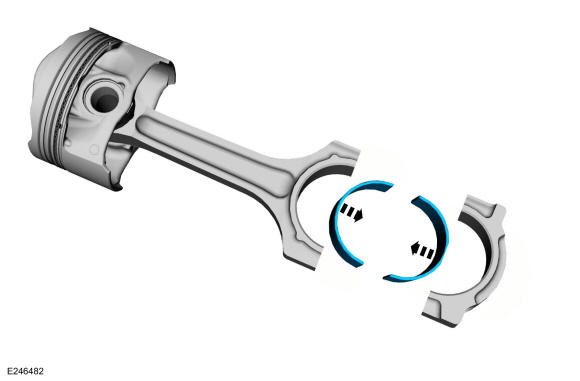

86. NOTE: Note the position of the components before removal.

    Remove the connecting rod bearings.

    Courtesy of FORD MOTOR COMPANY

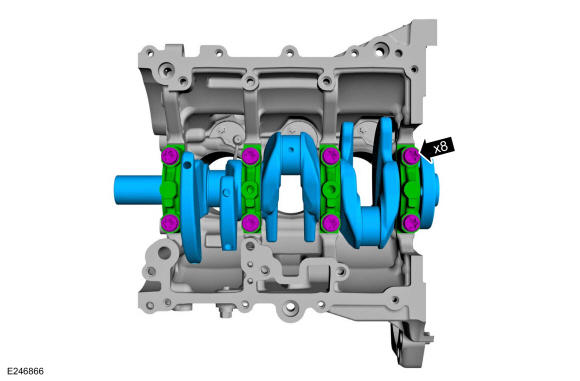

87. NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.
    1. Remove the bolts and the main bearing caps.
    2. Remove the crankshaft.

    Courtesy of FORD MOTOR COMPANY

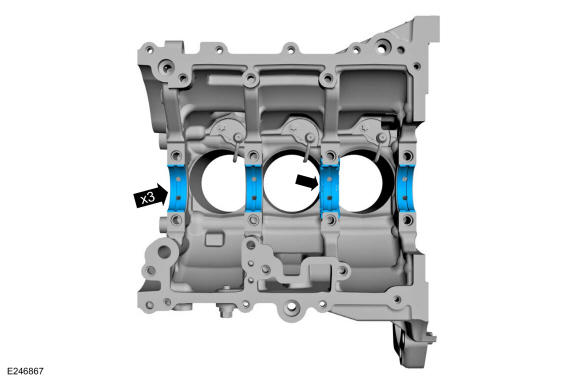

88. NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.

    Remove the crankshaft main bearings.

    Courtesy of FORD MOTOR COMPANY

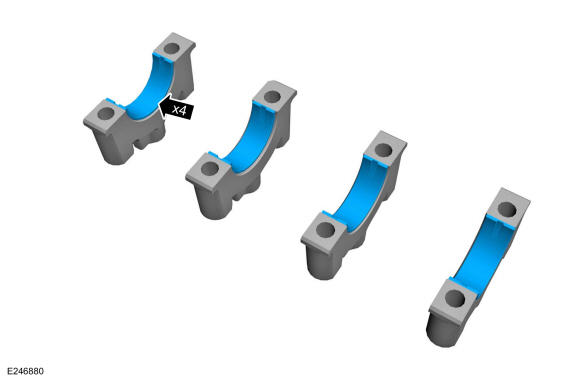

89. NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.

    Remove the crankshaft main bearings.

    Courtesy of FORD MOTOR COMPANY

90. Remove the bolts and the engine piston oil cooler valves.

Courtesy of FORD MOTOR COMPANY
