Disassembly And Assembly Of Subassemblies: Piston: Disassembly
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
-

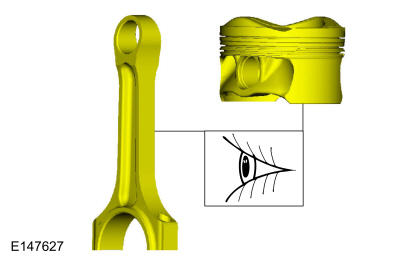

NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod reassembly.

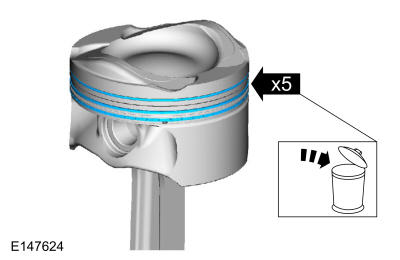

Remove and discard the piston rings.
-

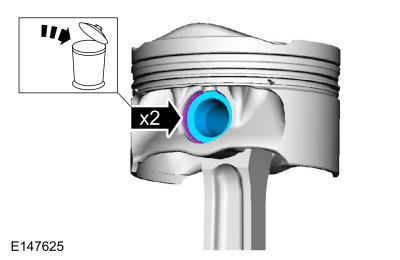

- Remove and discard the piston pin retainers.
- Remove the piston pin.
- Remove the piston from the connecting rod.
- Inspect the piston and crankshaft. Refer to: Piston Inspection .
