Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

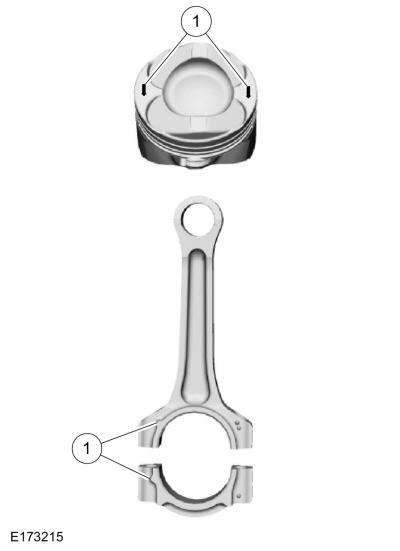

1. Indicates front of engine.
NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

Install the piston to the connecting rod.

Courtesy of FORD MOTOR COMPANY
Lubricate with clean engine oil and install the piston pin.

Courtesy of FORD MOTOR COMPANY
Install the piston pin retainers.

Courtesy of FORD MOTOR COMPANY
Lubricate with clean engine oil and install the piston rings.

Courtesy of FORD MOTOR COMPANY
NOTE: The upper and lower compression rings are to be fitted with the identification marks on the upper side.

NOTE: Arrows faces the front of the engine.
1. Upper compression ring gap location.
2. Upper oil control segment ring gap location.
3. Expander ring gap location.
4. Lower oil control segment ring gap location.
5. Lower compression ring gap location.

Courtesy of FORD MOTOR COMPANY
