Engine - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

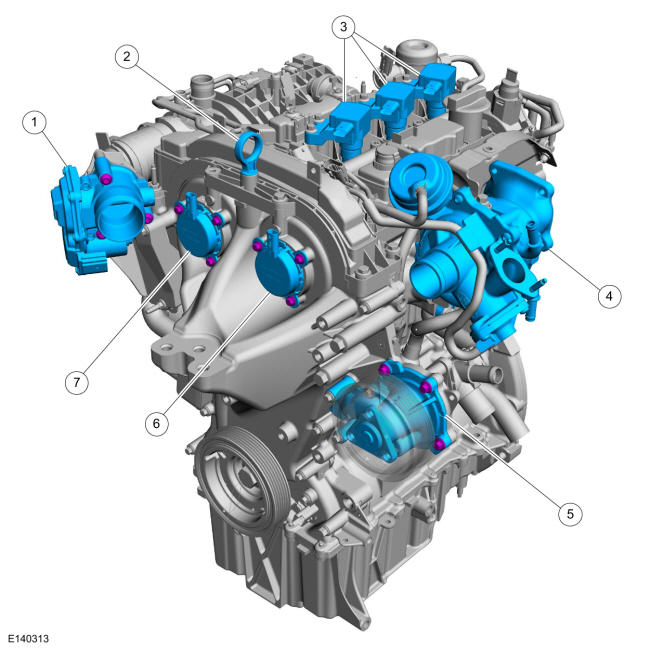

Front view
View the video version of this procedure below.
multimedia:A supplement to the article is available.
| Item | Description |
|---|---|
| 1 | Electric throttle plate |
| 2 | Oil dipstick |
| 3 | Ignition coil-on-plugs |
| 4 | TC Turbocharger |
| 5 | Coolant pump |
| 6 | VCT - Solenoid, exhaust camshaft |
| 7 | VCT - Solenoid, intake camshaft |

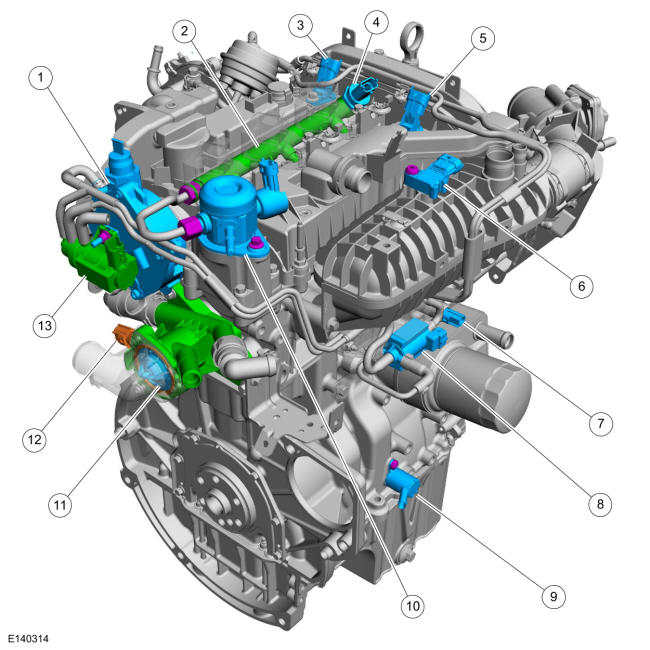

Rear view
| Item | Description |
|---|---|
| 1 | Vacuum pump |
| 2 | High-Pressure Fuel Rail |
| 3 | CMP Sensor - exhaust camshaft |
| 4 | Fuel Pressure Sensor |
| 5 | CMP Sensor - intake camshaft |
| 6 | The MAP sensor |
| 7 | EOP switch |
| 8 | Recirculated air valve solenoid |
| 9 | Oil pressure control solenoid valve |
| 10 | High-pressure pump |
| 11 | Small/large coolant circuit thermostat |
| 12 | The ECT sensor |
| 13 | Boost pressure control solenoid valve |

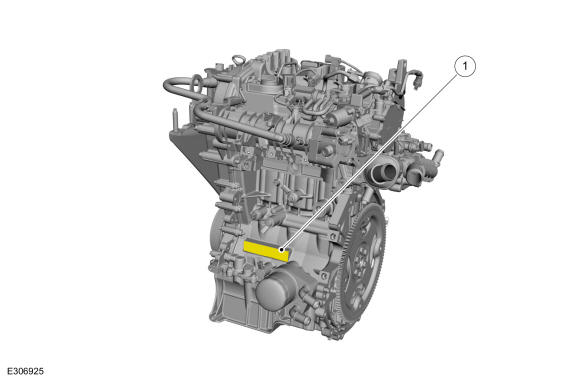

Engine serial number
| Item | Description |
|---|---|
| 1 | Engine serial number |
