Section 53 (Engine - 1.0L ECOBOOST (92KW/125PS)): Assembly: Engine

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C)Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	303-1567Sizer, Teflon SealTKIT-2010C-FLM
Courtesy of FORD MOTOR COMPANY	303-1602Locking Tool, Crankshaft

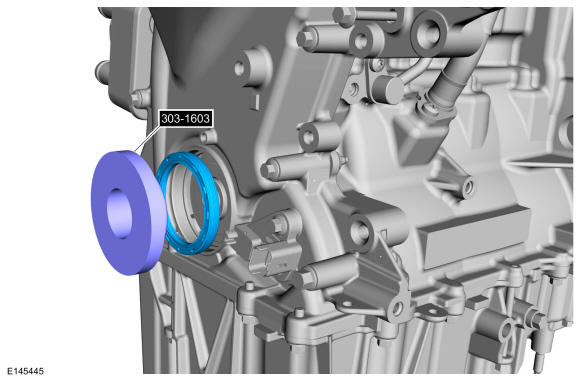

Courtesy of FORD MOTOR COMPANY	303-1603Installer, Front Cover Seal
Courtesy of FORD MOTOR COMPANY	303-1604Timing Peg, Crankshaft TDC

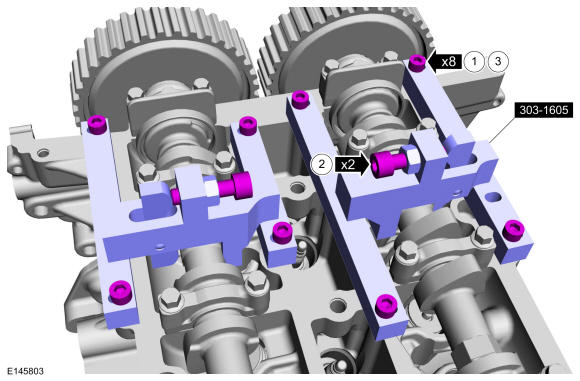

Courtesy of FORD MOTOR COMPANY	303-1605Alignment Tool, Camshaft

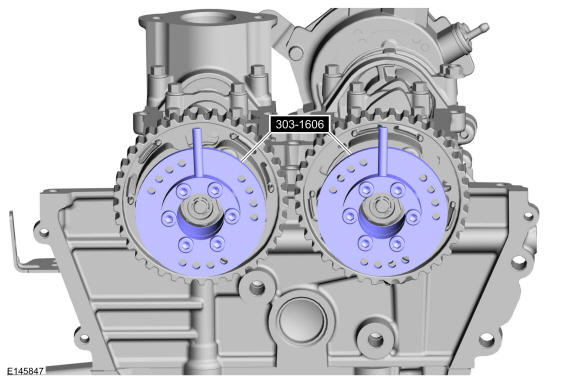

Courtesy of FORD MOTOR COMPANY	303-1606Locking Tool, Variable Camshaft Timing

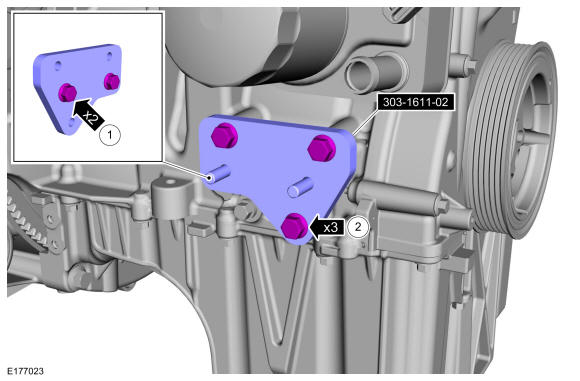

Courtesy of FORD MOTOR COMPANY	303-1611Torque Multiplier
Courtesy of FORD MOTOR COMPANY	303-1611-01Adapter for 303-1611
Courtesy of FORD MOTOR COMPANY	303-1611-02Adapter for 303-1611, Torque MultiplierTKIT-2014A-FLTKIT-2014A-ROW
Courtesy of FORD MOTOR COMPANY	310-207Installer, Fuel Injector Seal AssemblyTKIT-2009A-FLM
Feeler Gauge
Lifting Bracket
Floor Crane
Polydrive Bit Socket
Hose Clamp Remover/Installer
6 mm Drill Bit
Piston Ring Compressor
Punch
4 mm Drill Bit

Materials

Name	Specification
Motorcraft® High Performance Engine RTV SiliconeTA-357	WSE-M4G323-A6
Motorcraft® Gasket MakerTA-16	WSK-M2G348-A5

NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

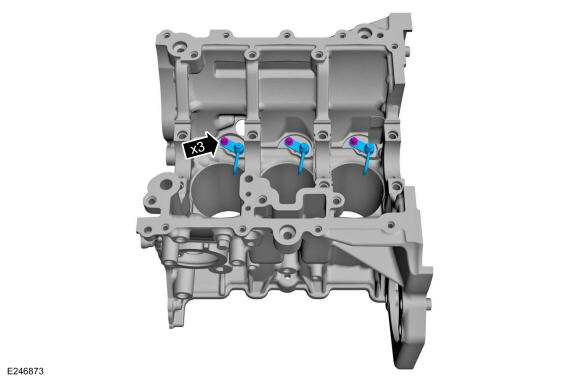

Install the engine piston oil cooler valves and the bolts.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is clean, free of foreign material and lubricant.

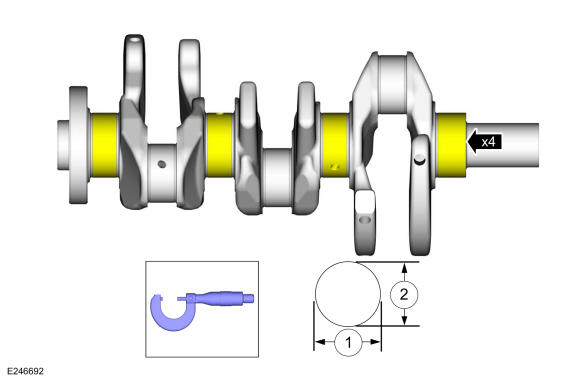

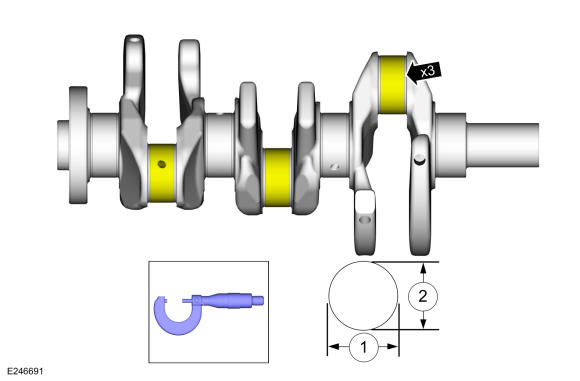

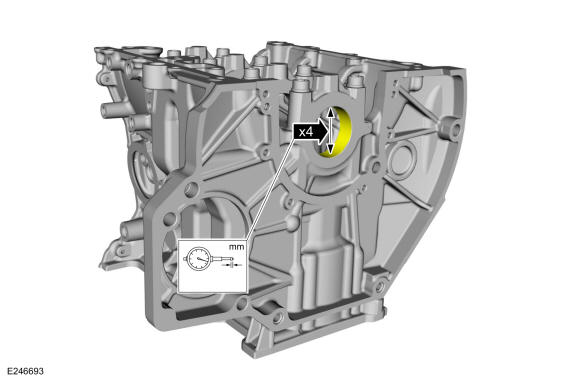

1. Measure the diameter in two directions.
2. Record the smallest measurement for each crankshaft main bearing journal.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed to the position noted before removal.

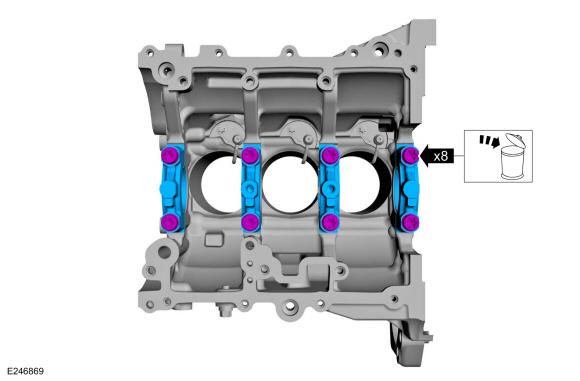

1. Using the original bolts, install the main bearing caps and the bolts finger tight.
2. Torque
  Stage 1: 89 lb.in (10 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 22 lb.ft (30 Nm) Stage 4: 90 deg.

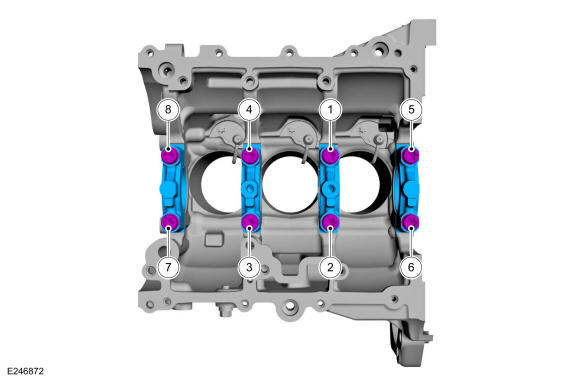

Fig 1: Main Bearing Caps Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is clean, free of foreign material and lubricant.

Measure each crankshaft block main bearing bore diameter.

Courtesy of FORD MOTOR COMPANY
1. NOTE: The upper specification is the maximum oil clearance and the lower specification is the minimum oil clearance.

  Crankshaft journal diameter
2. Cylinder block bore diameter

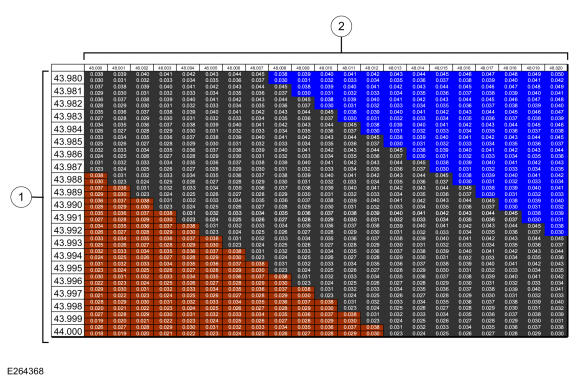

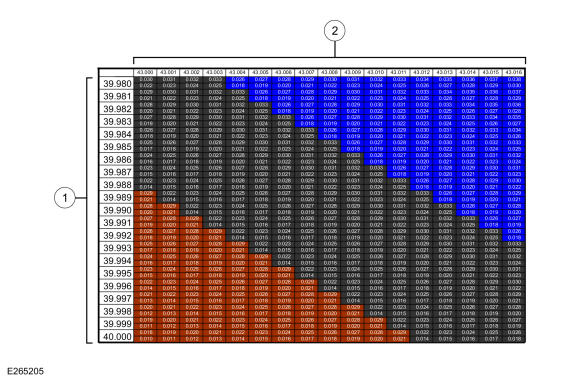

- Using the chart, select the correct grade main bearings.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed to the position noted before removal.

Using the original bolts, install the connecting rod caps and the bolts.

Torque Stage 1: 71 lb.in (8 Nm) Stage 2: 106 lb.in (12 Nm) Stage 3: 159 lb.in (18 Nm) Stage 4: 35 deg.

Courtesy of FORD MOTOR COMPANY

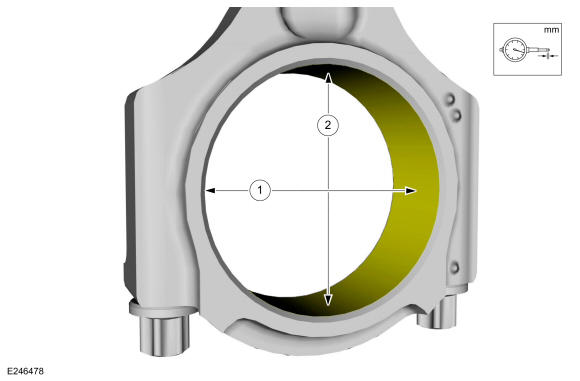

NOTE: Make sure that the component is clean, free of foreign material and lubricant.
1. Measure the diameter in two directions.
2. Record the smallest measurement for each connecting rod.
Courtesy of FORD MOTOR COMPANY

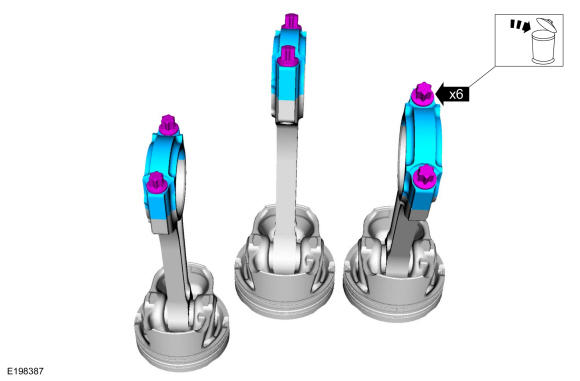

NOTE: Note the position of the components before removal.
1. Remove the bolts and the connecting rod caps.
2. Discard the bolts.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is clean, free of foreign material and lubricant.
1. Measure the diameter in two directions.
2. Record the smallest measurement for each connecting rod journal.
Courtesy of FORD MOTOR COMPANY
1. NOTE: The upper specification is the maximum oil clearance and the lower specification is the minimum oil clearance.

  Crankshaft connecting rod journal diameter
2. Connecting rod bore diameter
- Using the chart, select the correct grade connecting rod bearings for each crankshaft connecting rod journal.
Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the components before removal.
1. Remove the bolts and the main bearing caps.
2. Discard the bolts.
Courtesy of FORD MOTOR COMPANY

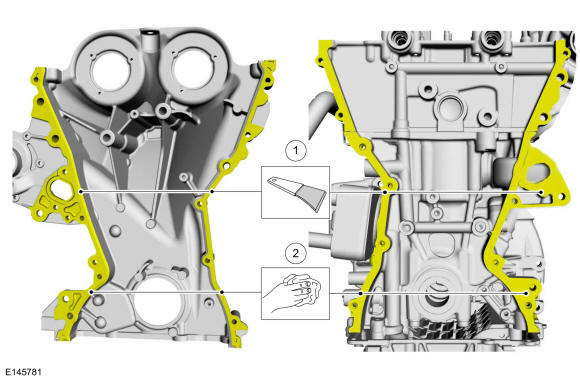

NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

NOTE: Component(s) must be lubricated with clean engine oil.

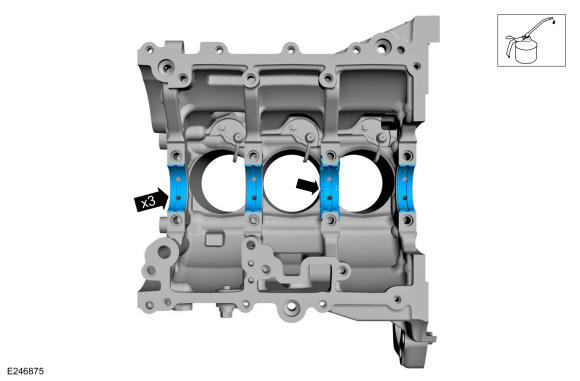

Lubricate with clean engine oil and install crankshaft main bearings.

Courtesy of FORD MOTOR COMPANY
NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

NOTE: Component(s) must be lubricated with clean engine oil.

Lubricate with clean engine oil and install the connecting rod bearings.

Courtesy of FORD MOTOR COMPANY
NOTE: Component(s) must be lubricated with clean engine oil.

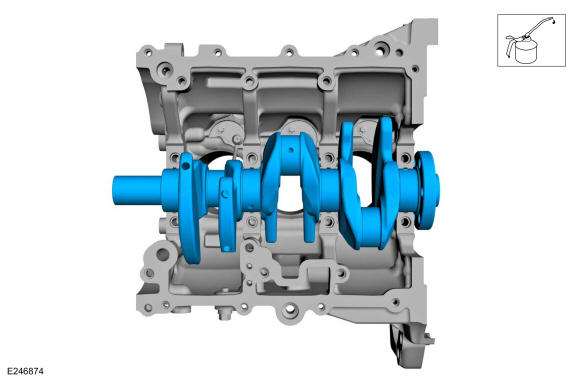

Lubricate with clean engine oil and install the crankshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed to the position noted before removal.

NOTE: Make sure that new bolts are installed.

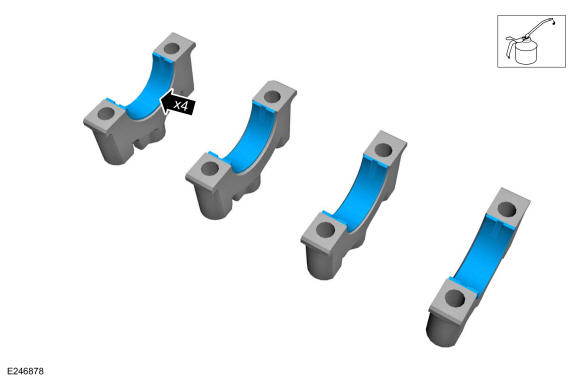

Install the main bearing caps and the bolts.

Torque Stage 1: 89 lb.in (10 Nm) Stage 2: 18 lb.ft (25 Nm) Stage 3: 22 lb.ft (30 Nm) Stage 4: 90 deg.

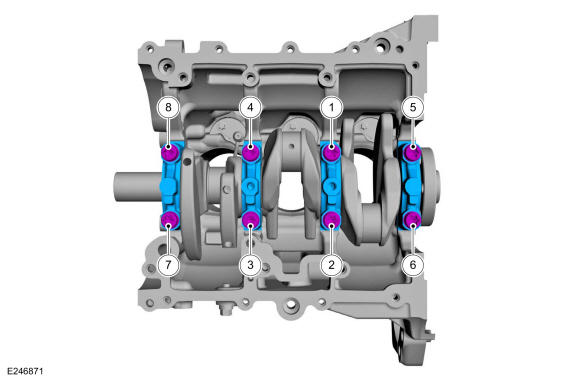

Fig 2: Main Bearing Caps Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
1. Position the crankshaft to the rear of the cylinder block.

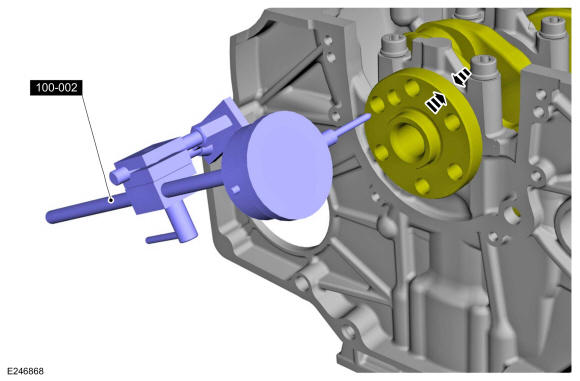

2. Zero the Dial Indicator Gauge with Holding Fixture. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
3. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
4. If the crankshaft end play exceeds the specified range, install new parts as necessary. Refer to: Specifications .
Courtesy of FORD MOTOR COMPANY
NOTE: If reusing the connecting rod bearings, install them in their original positions and orientation as noted during disassembly.

NOTE: Component(s) must be lubricated with clean engine oil.

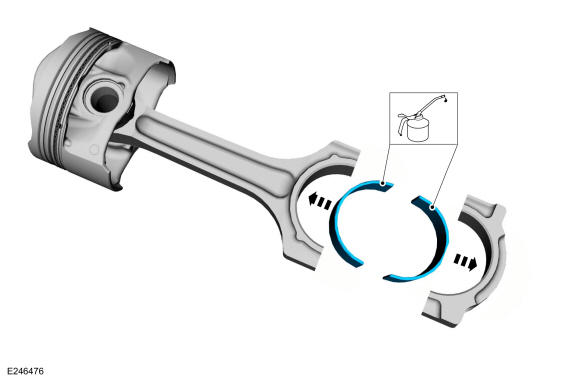

Lubricate with clean engine oil and install the connecting rod bearings.

Courtesy of FORD MOTOR COMPANY
NOTE: The upper and lower compression rings are to be fitted with the identification marks on the upper side.

NOTE: Arrows face the front of the engine.
1. Upper compression ring gap location.
2. Upper oil control segment ring gap location.
3. Expander ring gap location.
4. Lower oil control segment ring gap location.
5. Lower compression ring gap location.
Courtesy of FORD MOTOR COMPANY
NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.

NOTE: Make sure the piston arrow on top is facing toward the front of the engine.

NOTE: Component(s) must be lubricated with clean engine oil.

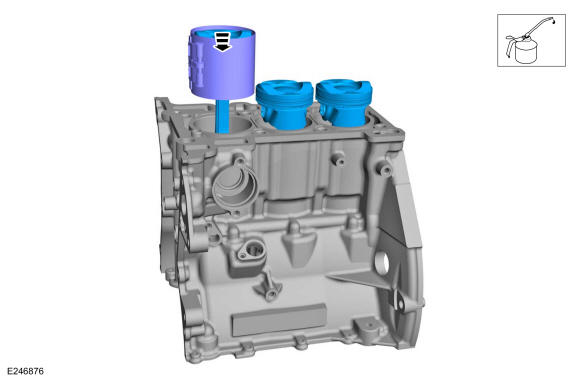

Lubricate with clean engine oil and install the pistons. Use the General Equipment: Piston Ring Compressor

Courtesy of FORD MOTOR COMPANY
NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

NOTE: Make sure that new bolts are installed.

Install the connecting rod caps and the bolts.

Torque Stage 1: 71 lb.in (8 Nm) Stage 2: 106 lb.in (12 Nm) Stage 3: 159 lb.in (18 Nm) Stage 4: 35 deg.

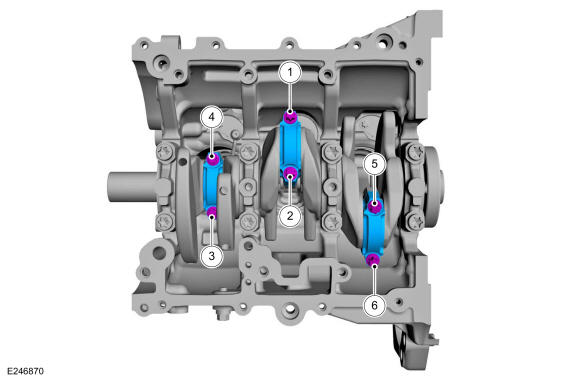

Fig 3: Connecting Rod Caps Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: New crankshaft rear seal carriers are supplied with an alignment sleeve which must be removed after installation.

NOTE: Make sure that new bolts are installed.

NOTE: Install all the bolts finger tight before final tightening.

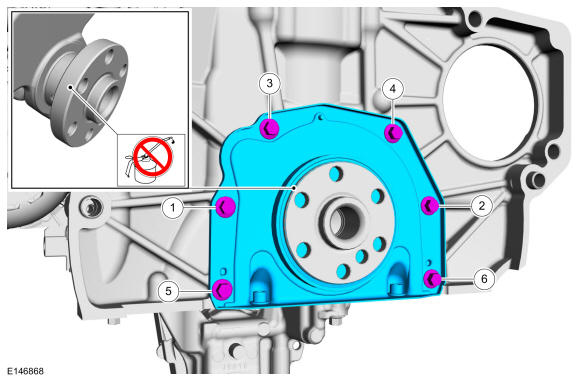

- Install the crankshaft rear seal and the bolts finger tight.
- Tighten the bolts in sequence shown.
  Torque Stage 1: 35 lb.in (4 Nm) Stage 2: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

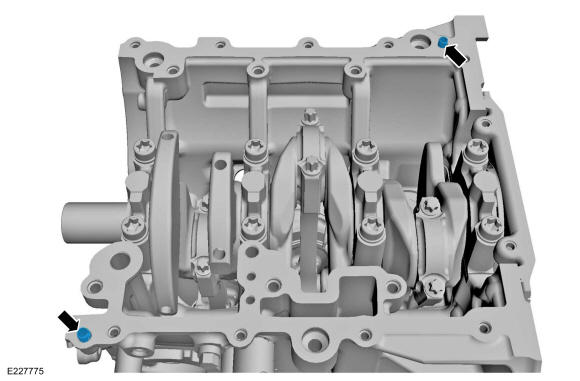

Install the alignment dowels.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

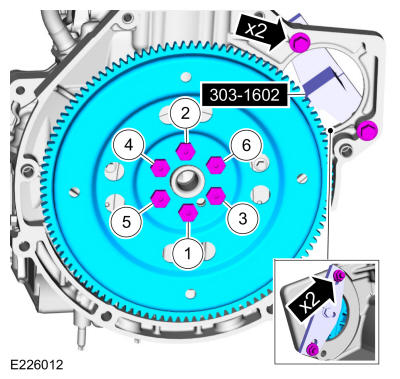

- Install the flexplate and the bolts finger-tight.
- Install Special Service Tool: 303-1602 Locking Tool, Crankshaft.
- Tighten the flexplate bolts in sequence shown.
  Torque 37 lb.ft (50 Nm)
- Remove Special Service Tool: 303-1602 Locking Tool, Crankshaft.
Fig 4: Flexplate Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

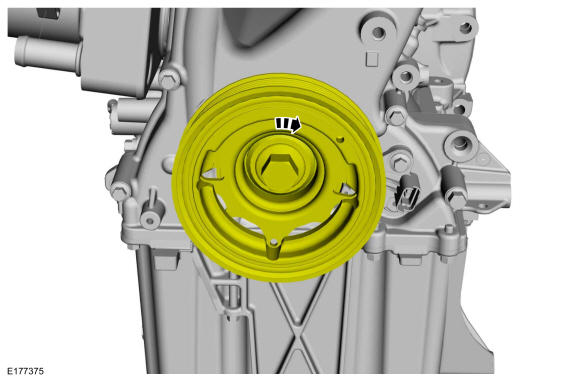

Rotate the crankshaft until piston No. 1 is approximately 35 deg. before top dead center (BTDC).

Courtesy of FORD MOTOR COMPANY

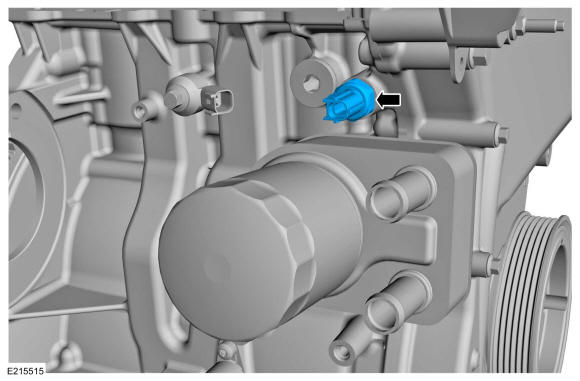

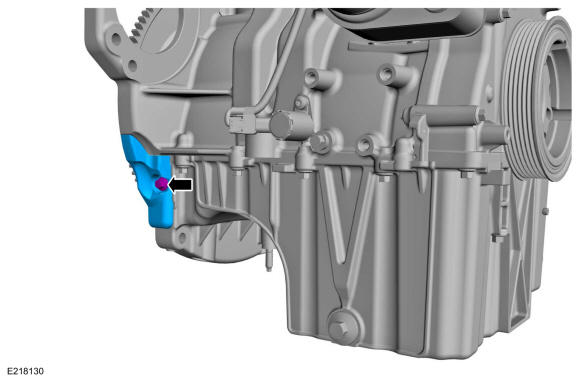

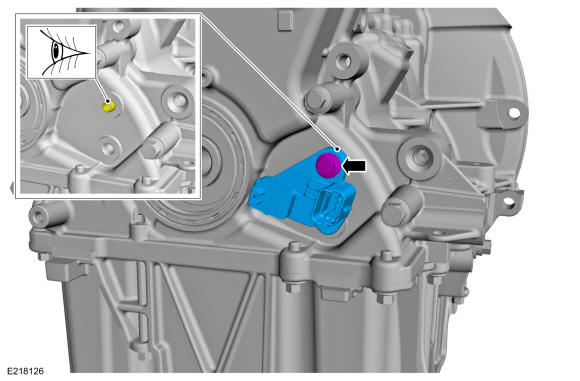

Remove the engine plug bolt.

Courtesy of FORD MOTOR COMPANY

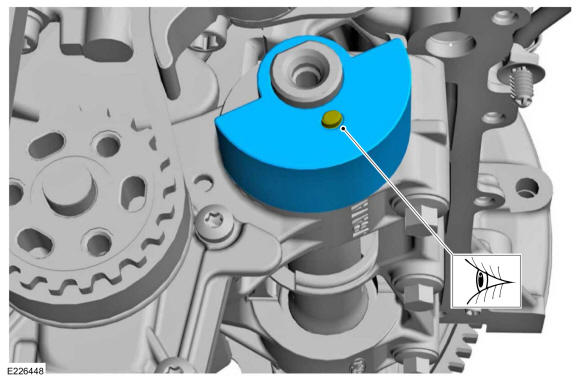

Install Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY

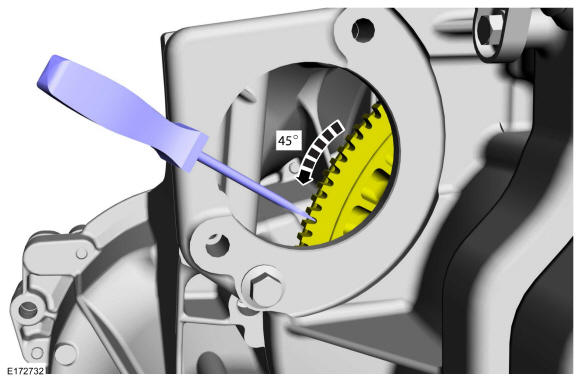

NOTE: Only rotate the crankshaft clockwise.

Using the screwdriver, rotate the crankshaft slowly until the crankshaft stops.

Courtesy of FORD MOTOR COMPANY

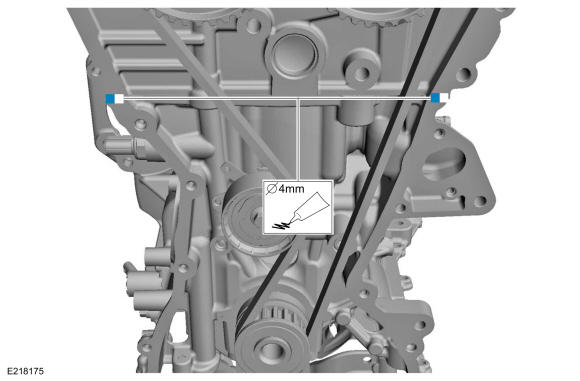

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
NOTE: The drill bit must be installed to maintain the balance shaft timing. Do not remove the drill bit until you are instructed to do so.

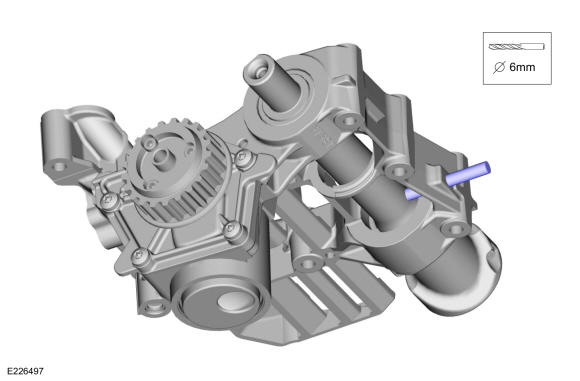

Install a 6 mm drill bit through the oil pump housing and into the balance shaft. Use the General Equipment: 6 mm Drill Bit

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

NOTE: Only tighten the bolts finger tight at this stage.

Install the oil pump and the bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

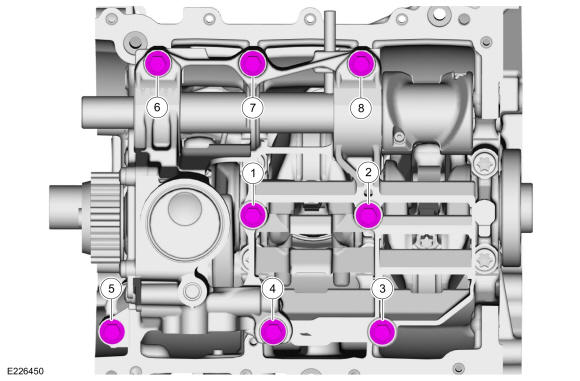

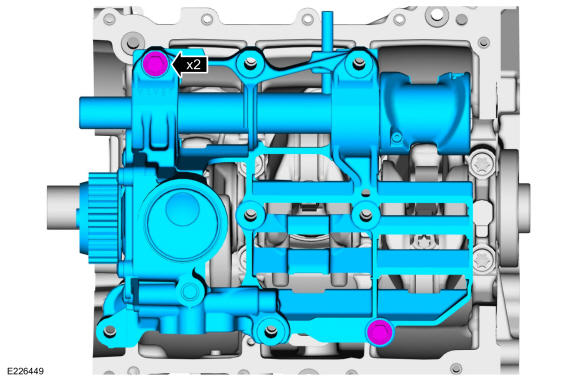

Install the remaining bolts and tighten in sequence shown.

Torque 1-3, M8x50: 17 lb.ft (23 Nm) 4, M8x65: 17 lb.ft (23 Nm) 5, M8x50: 17 lb.ft (23 Nm) 6-8, M8x65: 17 lb.ft (23 Nm)

Fig 5: Oil Pump Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

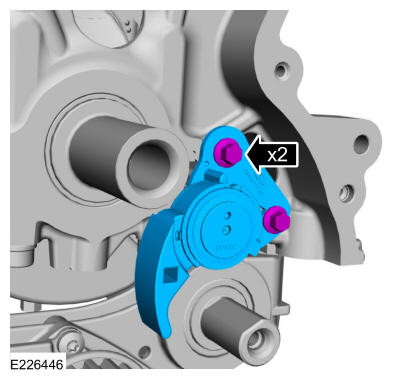

Install the oil pump belt tensioner and the bolts.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

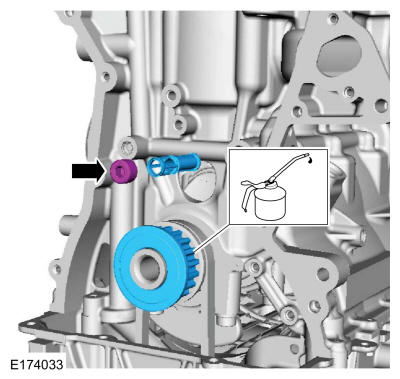

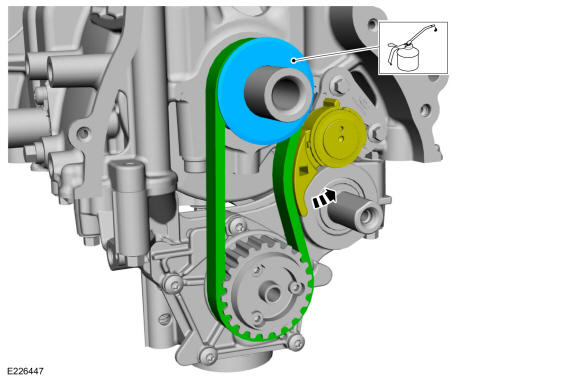

1. Lubricate with clean engine oil and install the oil pump drive pulley.
2. Using a suitable tool, rotate the oil pump belt tensioner.
3. Install the oil pump belt.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is installed to the position noted before removal.

Install the balance shaft weight.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new bolt is installed.

NOTE: Make sure that the component is correctly installed.

NOTE: Only tighten the bolt finger tight at this stage.

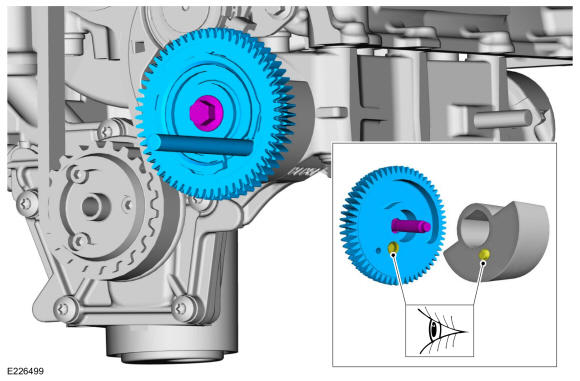

Install the balance shaft gear and the bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

NOTE: Install all the bolts finger tight before final tightening.

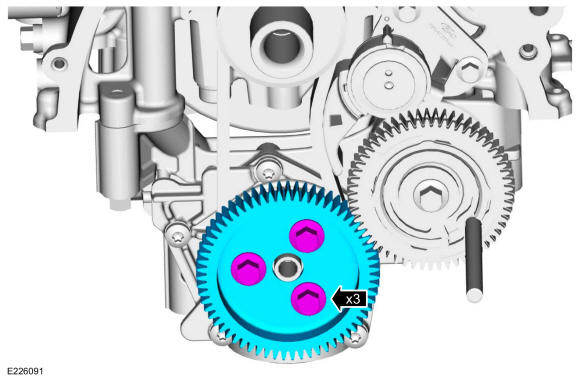

Install the oil pump gear and the bolts.

Torque 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

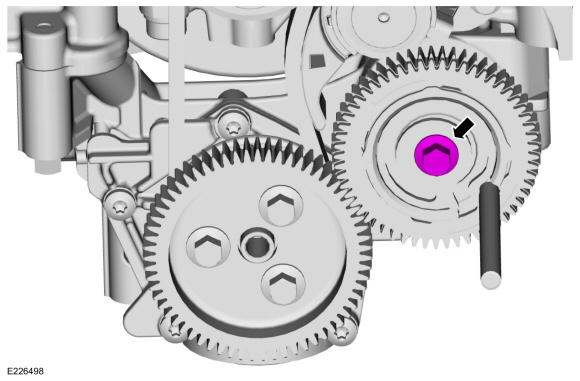

Tighten the balance shaft gear bolt.
Torque 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the 4 mm drill bit. Remove the General Equipment: 4 mm Drill Bit

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is correctly installed.

Install the oil pump cover.

Courtesy of FORD MOTOR COMPANY

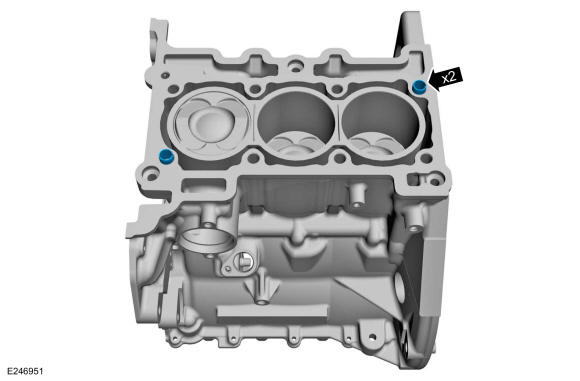

Install the alignment dowels.

Courtesy of FORD MOTOR COMPANY

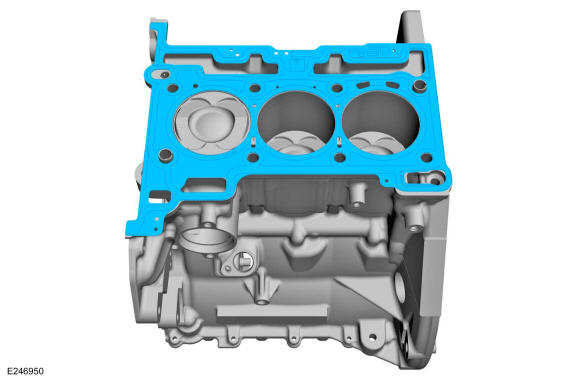

Install a new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no fluids are present in the cylinder head bolt threaded bores.
1. Install the cylinder head.
2. NOTE: Make sure that new bolts are installed.

  NOTE: Only tighten the bolts finger tight at this stage.

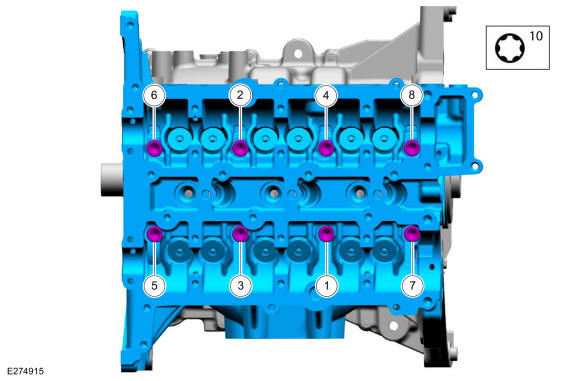

  Install the cylinder head bolts.
3. Tighten the cylinder head bolts in sequence shown. Use the General Equipment: Polydrive Bit Socket
  Torque Stage 1: 89 lb.in (10 Nm) Stage 2: 30 lb.ft (40 Nm) Stage 3: Loosen: 45 deg. Stage 4: 22 lb.ft (30 Nm) Stage 5: 90 deg. Stage 6: 90 deg.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed to the position noted before removal.

NOTE: Component(s) must be lubricated with clean engine oil.

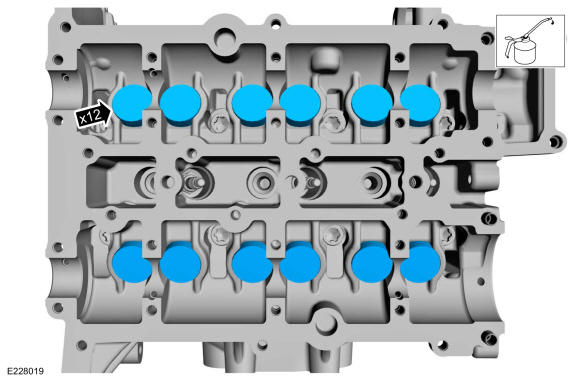

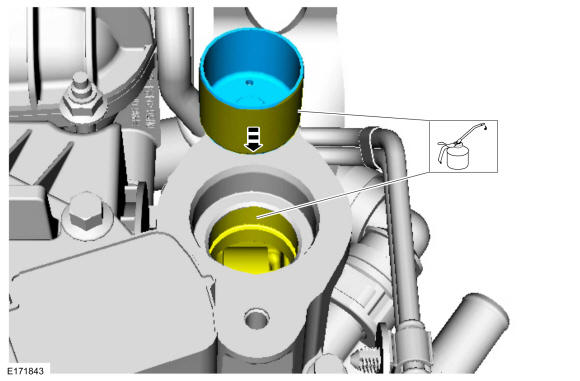

Lubricate with clean engine oil and install the valve tappets.

Courtesy of FORD MOTOR COMPANY
Using the screwdriver, rotate the flywheel in a counterclockwise direction.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed to the position noted before removal.

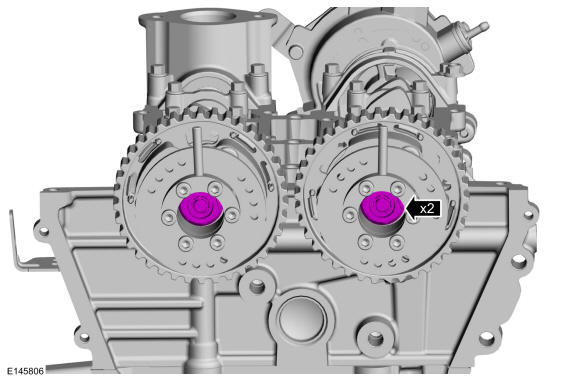

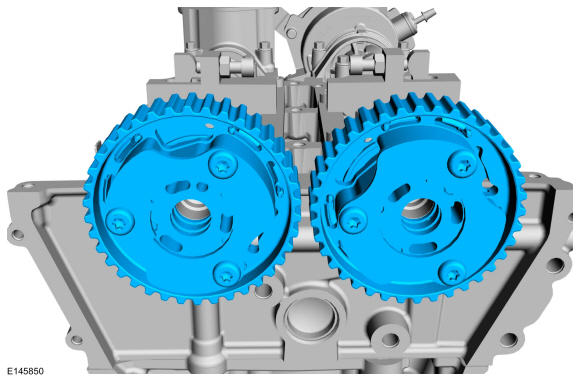

1. Lubricate and install the camshafts approximately at valve overlap position cylinder No. 1.
2. Lubricate the camshaft journals and camshaft bearing caps with clean engine oil and install.
3. Install all the original bolts finger tight before final tightening.

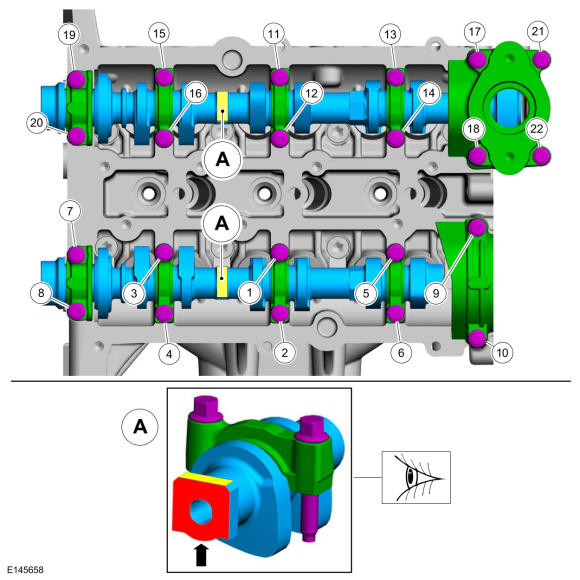

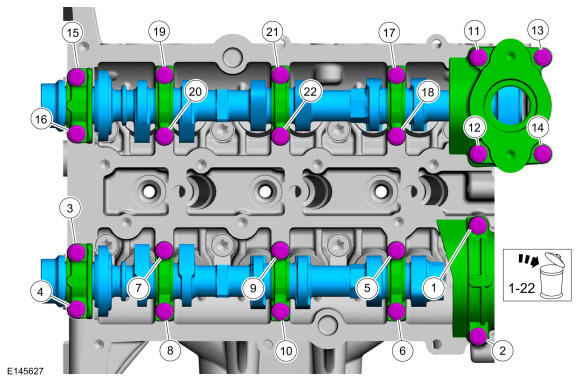

4. Tighten 2 turns at a time in the sequence shown in 2 stages.
  Torque Stage 1: 35 lb.in (4 Nm) Stage 2: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

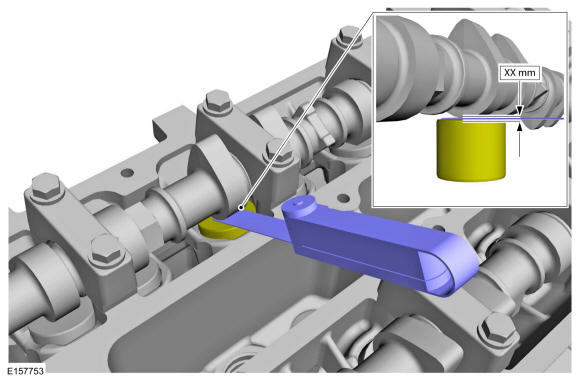

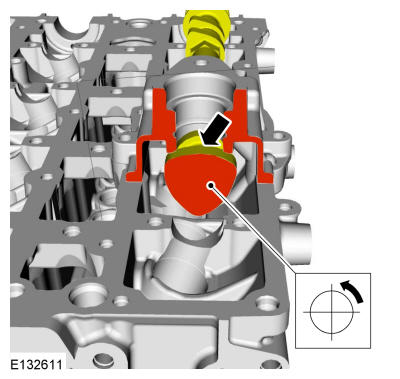

1. Rotate the camshafts and measure the valve clearances. Note each cylinder number and the valve clearances measured. Use the General Equipment: Feeler Gauge
2. Compare the measured valve clearance(s) with the specifications. Refer to: Specifications .
Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the components before removal.

Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps and remove the bolts, caps and the camshafts.
- Discard the bolts.
Courtesy of FORD MOTOR COMPANY
- Remove the valve tappet and read the thickness from the underside.
- The number on the valve tappet indicates the thickness of the bottom of the tappet. However, the number only indicates the digits after the decimal point (example: 725 = 2.725).
- Calculate the required thickness of the valve tappet with the following formula: X = S + M - V
- Required thickness of tappet = X
- Thickness of currently fitted tappet = S
- Measurement of existing valve clearance (actual value) = M
- Desired valve clearance = V

Use the chart to determine the correct size valve tappet.

Number on underside of Tappet	Grade/Thickness
700	0.1063 in (2.7 mm)
725	0.1073 in (2.725 mm)
750	0.1083 in (2.75 mm)
775	0.1093 in (2.775 mm)
800	0.1102 in (2.8 mm)
825	0.1112 in (2.825 mm)
850	0.1122 in (2.85 mm)
875	0.1132 in (2.875 mm)
900	0.1142 in (2.9 mm)
925	0.1152 in (2.925 mm)
950	0.1161 in (2.95 mm)
975	0.1171 in (2.975 mm)
000	0.1181 in (3 mm)
025	0.1191 in (3.025 mm)
050	0.1201 in (3.05 mm)
075	0.1211 in (3.075 mm)
100	0.1220 in (3.1 mm)
125	0.1230 in (3.125 mm)
150	0.1240 in (3.15 mm)
175	0.1250 in (3.175 mm)
200	0.1260 in (3.2 mm)
222	0.1269 in (3.222 mm)
250	0.1280 in (3.25 mm)
275	0.1289 in (3.275 mm)
302	0.1300 in (3.302 mm)
325	0.1309 in (3.325 mm)
342	0.1316 in (3.342 mm)
375	0.1329 in (3.375 mm)
400	0.1339 in (3.4 mm)
425	0.1348 in (3.425 mm)
462	0.1363 in (3.462 mm)
475	0.1368 in (3.475 mm)
502	0.1379 in (3.502 mm)
525	0.1388 in (3.525 mm)
550	0.1398 in (3.55 mm)
575	0.1407 in (3.575 mm)

Install the correct valve tappet.
NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: The component must be installed within 5 minutes of applying the sealant.

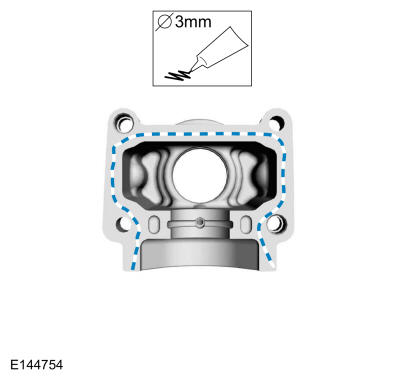

Apply 3 mm (0.118 in) beads of gasket maker to the intake rear camshaft bearing cap mating surface as shown.

Material Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the mating faces are clean and free of foreign material.

NOTE: The component must be installed within 5 minutes of applying the sealant.

Apply 3 mm (0.118 in) beads of gasket maker to the intake rear camshaft bearing cap mating surface as shown.

Material Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed to the position noted before removal.
1. Lubricate and install the camshafts approximately at valve overlap position cylinder No. 1.
2. Lubricate the camshaft journals and camshaft bearing caps with clean engine oil and install.
3. Install all the new bolts finger tight before final tightening.
4. Tighten 2 turns at a time in the sequence shown in 2 stages.
  Torque Stage 1: 35 lb.in (4 Nm) Stage 2: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
1. Install the special service tool and the mounting bolts loosely. Use Special Service Tool: 303-1605 Alignment Tool, Camshaft.
2. Tighten the camshaft alignment tool camshaft bolts until each camshaft is held securely.
3. Tighten the camshaft alignment tool mounting bolts.
  Torque 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: If installing a new component, determine the part number.

Install the VCT units.

Courtesy of FORD MOTOR COMPANY

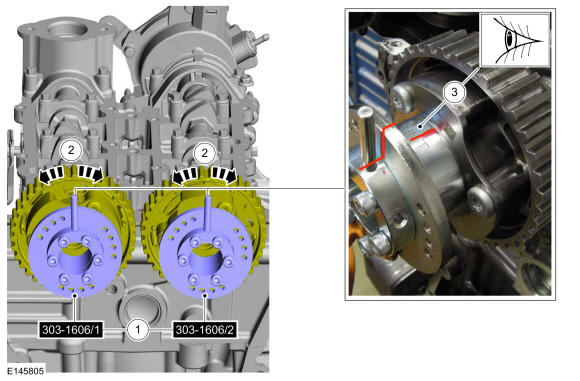

1. Install Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.
2. Align the tools to the 12 o'clock position.
3. NOTE: Ensure that the installation marks are aligned and orientated to a 12 o'clock position.
View a video version of this procedure below.

multimedia:A supplement to the article is available.

Courtesy of FORD MOTOR COMPANY

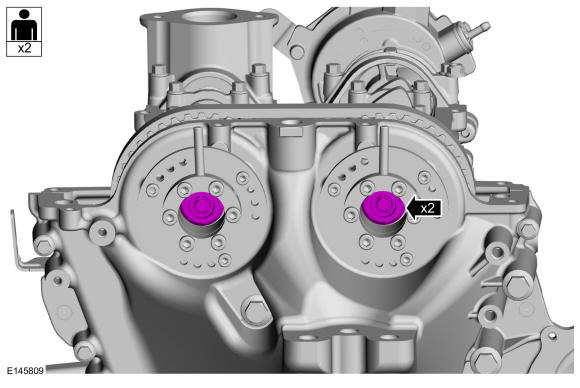

NOTE: Make sure that new bolts are installed.

NOTE: Only tighten the bolts finger tight at this stage.

Install the VCT units mounting bolt.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is installed to the position noted before removal.
1. Lubricate with clean engine oil and install the timing drive pulley.
2. Install the oil supply filter and the bolt.
  Torque 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY
WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

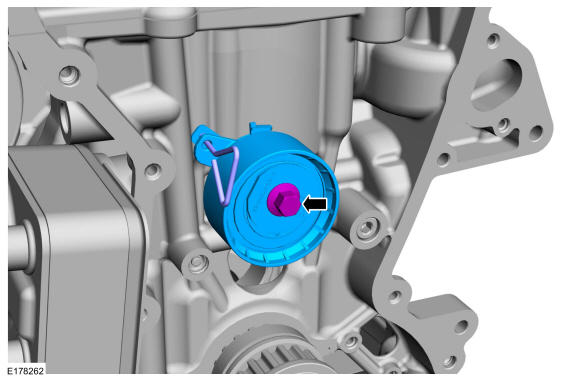

Install the timing belt tensioner.

Torque 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If installing a new component, determine the part number.

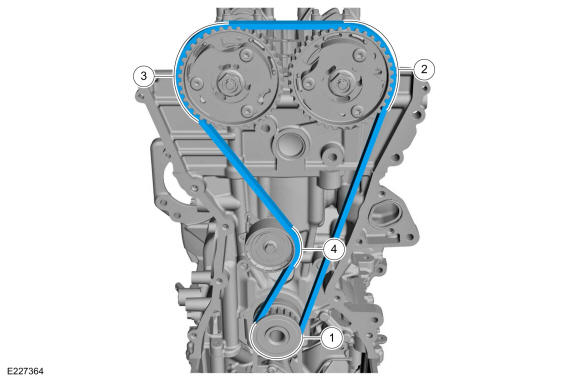

Install the timing belt in sequence shown.

Courtesy of FORD MOTOR COMPANY
WARNING: The tensioner is under spring tension. Be careful when handling the tensioner. Failure to follow this instruction may result in personal injury.

Remove the locking pin.

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
Install a new gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

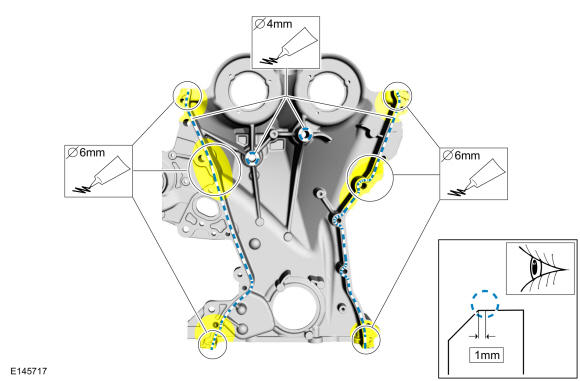

Apply beads of silicone sealant that are 4 mm (0.157 in) and 6 mm (0.236 in) as shown in the graphic.

Material Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

Complete this step within: 10min Apply beads of silicone sealant that are 4 mm (0.157 in).

Material Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

NOTE: Note the different lengths of the bolts.
1. Install the engine front cover and fasteners. Tighten in sequence in 3 stages.
- Stage 1:
  Torque 1-2, M6x60: 44 lb.in (5 Nm) 3-6, M10x95: 89 lb.in (10 Nm) 7-16, M6x60: 44 lb.in (5 Nm)
- Stage 2:
  Torque 3-6: 30 lb.ft (40 Nm) 3-4: 52 lb.ft (70 Nm) 5-6: 52 lb.ft (70 Nm) 1-2: 80 lb.in (9 Nm) 7-16: 133 lb.in (15 Nm)
- Stage 3:
  Torque 3-4: 90 deg. 5-6: 90 deg. 1-2: 90 deg. 7-16: 90 deg.

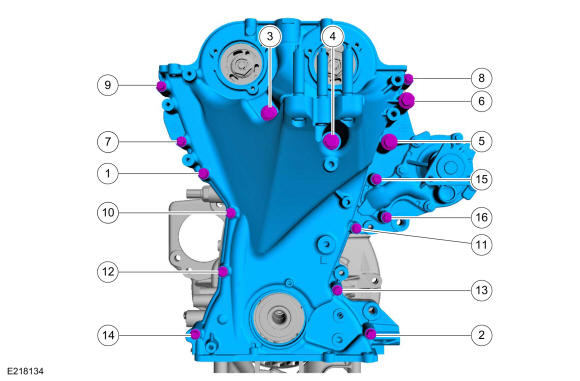

Fig 6: Engine Front Cover Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

Using the special tool, install the crankshaft front seal. Use Special Service Tool: 303-1603 Installer, Front Cover Seal.

Courtesy of FORD MOTOR COMPANY

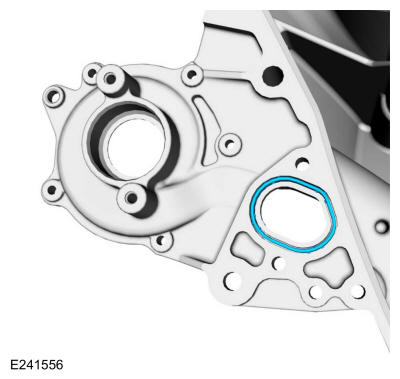

1. NOTE: Make sure the new O-ring seals are seated correctly.

  Install new O-ring seals.

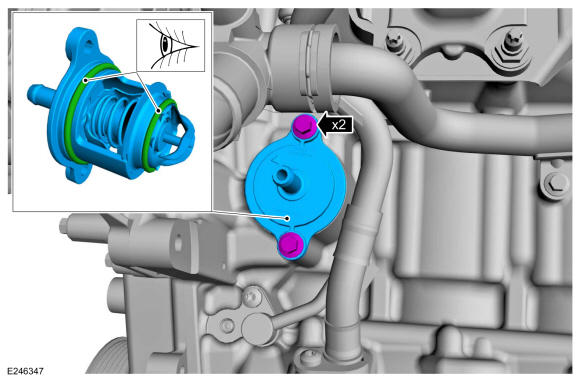

2. Install the thermostat and the bolts.
  Torque 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the CKP and the bolt.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

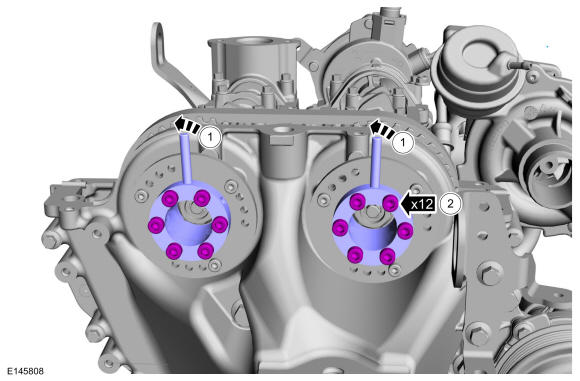

1. Turn until resistance is felt.
2. Tighten the bolts.
  Torque 133 lb.in (15 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Use an open-ended wrench to prevent the component from turning.

Tighten the bolts.

Torque 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1605 Alignment Tool, Camshaft.

Courtesy of FORD MOTOR COMPANY
NOTE: Use an open-ended wrench to prevent the component from turning.

Tighten the bolts.

Torque Stage 1: 37 lb.ft (50 Nm) Stage 2: 70 lb.ft (95 Nm) Stage 3: 45 deg.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

Using the screwdriver, rotate the crankshaft slowly until the crankshaft stops.

Courtesy of FORD MOTOR COMPANY
1. NOTE: The production engine is not equipped with a friction washer. Whenever the crankshaft pulley is removed, a friction washer (base part number 6378) must be installed.

  Install a new friction washer.
2. Install the crankshaft pulley.
3. Install a new crankshaft pulley bolt finger tight.
Courtesy of FORD MOTOR COMPANY
1. Install 3/16 inch punch. Use the General Equipment: Punch
2. Torque: Stage 1: 18 lb.ft (25 Nm) Stage 2: 52 lb.ft (70 Nm)
View a video version of this procedure below.

multimedia:A supplement to the article is available.

Courtesy of FORD MOTOR COMPANY
Remove 3/16 inch punch. Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY
1. M8x30
2. M8x25 Install Special Service Tool: 303-1611-02 Adapter for 303-1611, Torque Multiplier.
  Torque 18 lb.ft (24 Nm)
Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-1611-01 Adapter for 303-1611.
Torque 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the nut finger tight at this stage.

Install Special Service Tool: 303-1611 Torque Multiplier.

Courtesy of FORD MOTOR COMPANY
1. Torque: 44 lb.ft (60 Nm)
2. Torque: Stage 1: 90 deg. Stage 2: 90 deg. Stage 3: 90 deg. Stage 4: 90 deg. Stage 5: 90 deg.
View a video version of this procedure below.

multimedia:A supplement to the article is available.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1611 Torque Multiplier.

Courtesy of FORD MOTOR COMPANY
1. Install 3/16 inch punch. Use the General Equipment: Punch
2. Remove 3/16 inch punch. Use the General Equipment: Punch
Courtesy of FORD MOTOR COMPANY
NOTE: Exhaust and A/C compressor removed from graphic for clarity.

Remove the 6 mm drill bit. Use the General Equipment: 6 mm Drill Bit

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1606 Locking Tool, Variable Camshaft Timing.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

Rotate the crankshaft 1 and 3/4 revolutions and continue until piston No. 1 is approximately 45 deg. before top dead center (BTDC).

Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the crankshaft clockwise.

Rotate the crankshaft slowly until the crankshaft stops.

Courtesy of FORD MOTOR COMPANY
1. NOTE: The tool can only be installed if the timing is correct.

  Install 3/16 inch punch. Use the General Equipment: Punch
2. Remove 3/16 inch punch. Use the General Equipment: Punch
Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1604 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Install the engine plug bolt.
Torque 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1611-01 Adapter for 303-1611.

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-1611-02 Adapter for 303-1611, Torque Multiplier.

Courtesy of FORD MOTOR COMPANY
Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

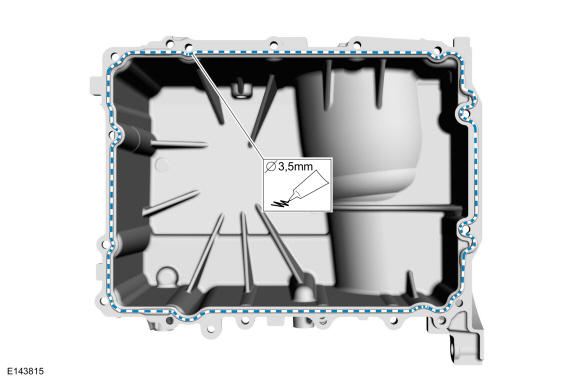

Apply a 3.5 mm (0.137 in) bead of silicone sealant.

Material Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
1. NOTE: Make sure that new bolts are installed.

  NOTE: Note the different lengths of the bolts.

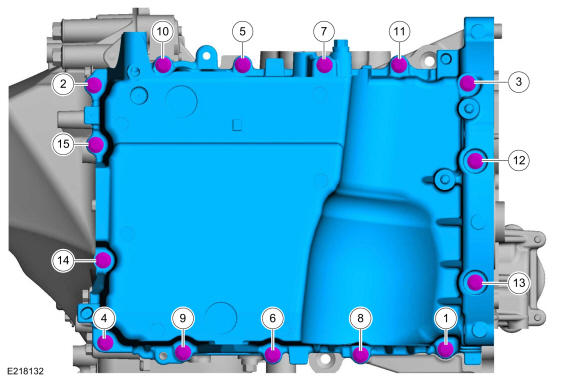

  Install the oil pan and the bolts. Tighten in sequence in 2 stages.
2. Stage 1:
  Torque 1-2, M6x20: 89 lb.in (10 Nm) 3, M6x75: 89 lb.in (10 Nm) 4-6, M6x20: 89 lb.in (10 Nm) 7, M6x75: 89 lb.in (10 Nm) 8-11, M6x20: 89 lb.in (10 Nm) 12-13, M6x100: 89 lb.in (10 Nm) 14, M6x75: 89 lb.in (10 Nm) 15, M6x20: 89 lb.in (10 Nm)
3. Stage 2:
  Torque 1-2: 89 lb.in (10 Nm) 3: 89 lb.in (10 Nm) 4-6: 89 lb.in (10 Nm) 7: 89 lb.in (10 Nm) 8-11: 89 lb.in (10 Nm) 12-13: 89 lb.in (10 Nm) 14: 89 lb.in (10 Nm) 15: 89 lb.in (10 Nm)
Fig 7: Oil Pain Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
If equipped, install the shield and the fastener.
Torque 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

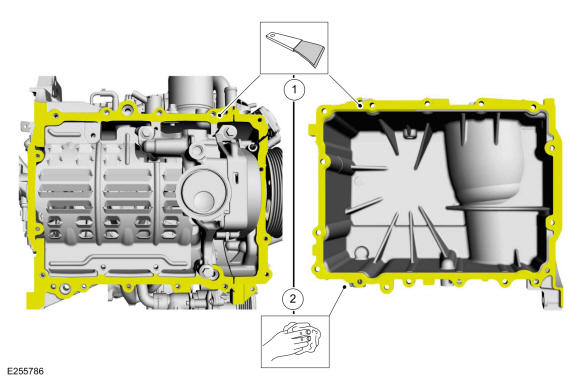

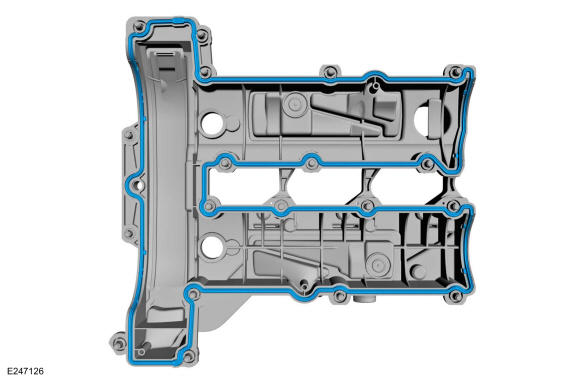

NOTE: Make sure that the component is clean, free of foreign material and lubricant.

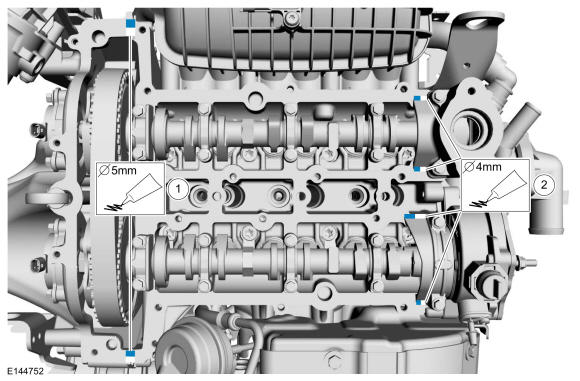

1. Apply beads of sealant as indicated.
  Material Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
2. Material
  Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)
Courtesy of FORD MOTOR COMPANY
If required, install a new gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

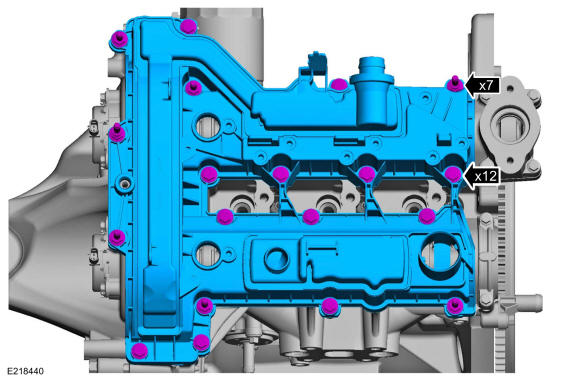

Install the valve cover and the bolts.

Courtesy of FORD MOTOR COMPANY

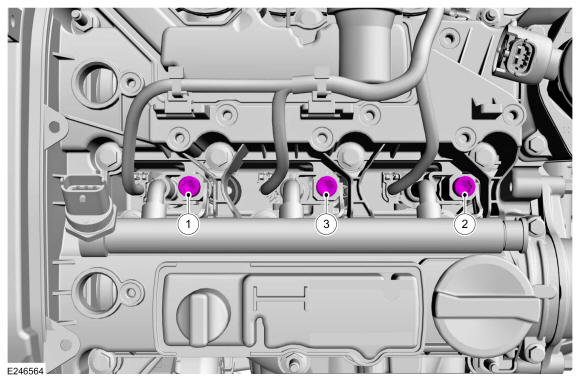

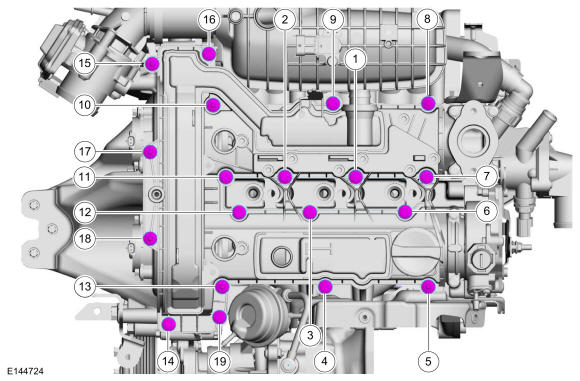

Tighten the bolts in sequence.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

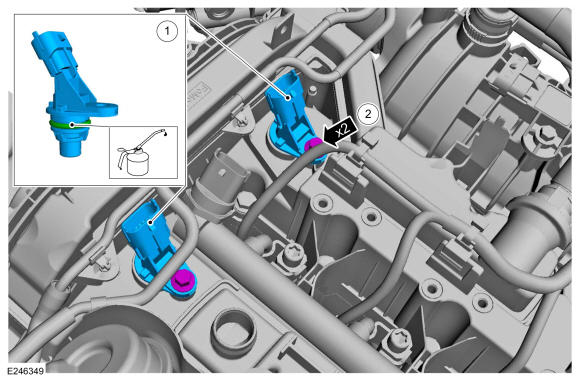

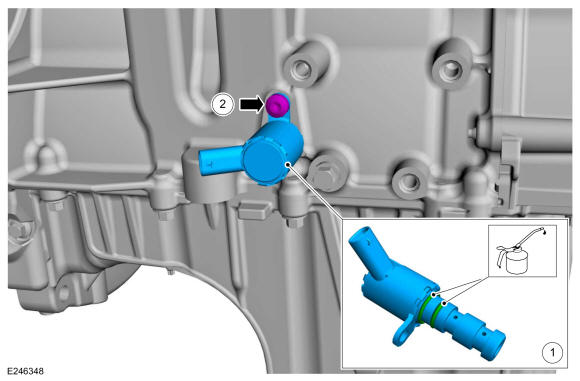

1. NOTE: The O-ring seal is to be reused unless damaged.

  NOTE: Component must be lubricated with clean engine oil.

  Lubricate the O-ring seal.
2. NOTE: Make sure that new bolts are installed.

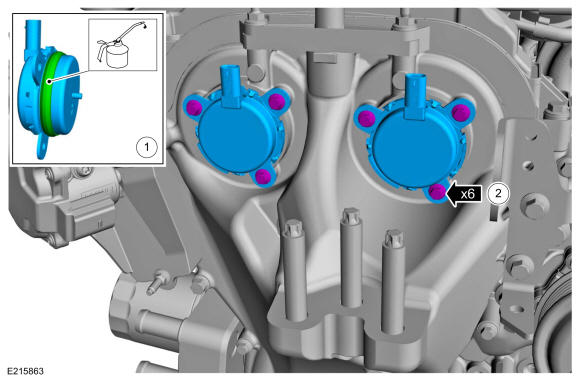

  Install the VCT solenoids and the bolts.

  Torque 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY
Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

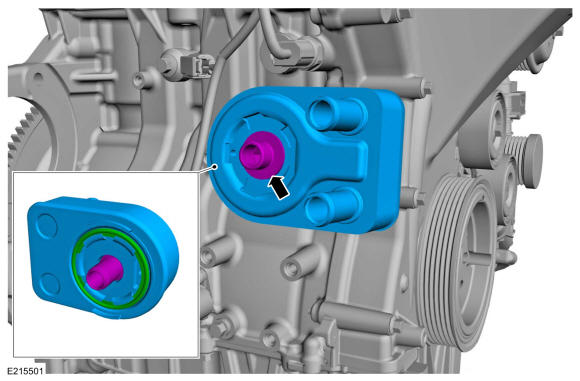

NOTE: A new oil cooler must be installed or severe damage to the engine occur.

Install the oil cooler and the bolt.

Torque 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Install the oil pump control solenoid.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

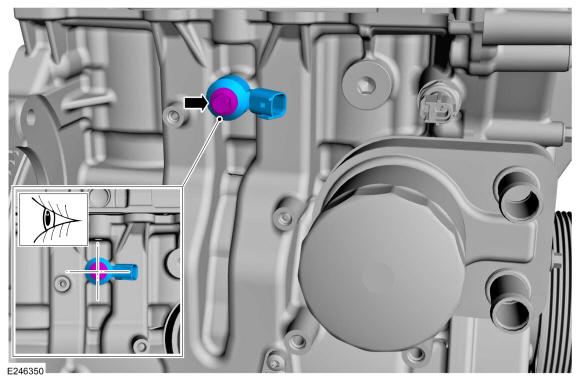

Install a new oil pressure switch.
Torque 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is correctly installed.

Install the KS.

Torque 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

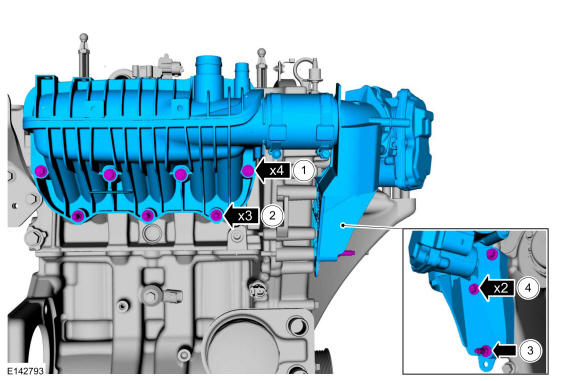

Install the intake manifold and the bolts.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts in sequence.
Torque 1-10: 89 lb.in (10 Nm)

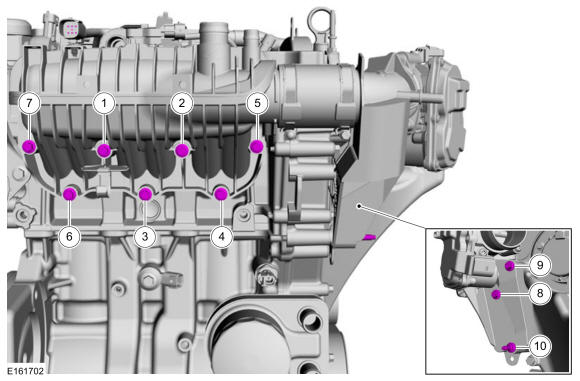

Fig 8: Intake Manifold Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

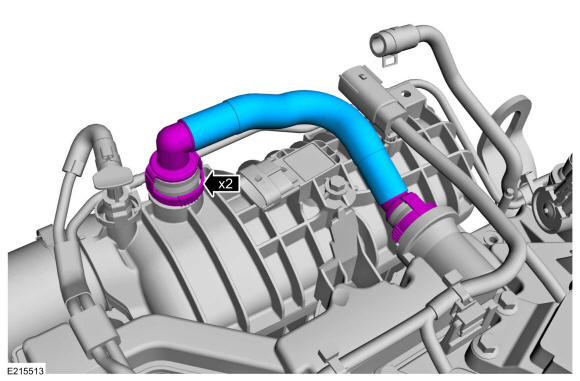

Install the crankcase vent tube.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
1. Install the Teflon® Seal Guide onto the fuel injector tip. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
2. NOTE: Once the Teflon® seal is installed on the Teflon® Seal Guide, it should immediately be installed onto the fuel injector to avoid excessive expansion of the Teflon® seal.

  NOTE: Make sure that new lower fuel injector Teflon® seals are installed.

  Install the new Teflon® seals onto the Teflon® Seal Guide, using the Pusher Tool, slide the Teflon® seals along the Teflon® Seal Guide.
3. Using the Pusher Tool, slide the Teflon® seals off of the Teflon® Seal Guide and into the groove on the fuel injectors. Use Special Service Tool: 310-207 Installer, Fuel Injector Seal Assembly.
4. Remove the special tools.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the Teflon® seal.
1. Massage and warm the Teflon® seal with your fingers before the Teflon® seal sizer tool is installed. This will aid in installing the Teflon® seal sizer tool.
2. Position the Teflon® seal sizer tool with the larger opening towards the Teflon® seal. Push while turning the Teflon® seal sizer tool 180 degrees. Use Special Service Tool: 303-1567 Sizer, Teflon Seal.
3. Once the Teflon® seal sizer tool is installed, check and make sure the Teflon® seal is in the sizing portion of the Teflon® seal sizer tool.
4. After one minute, turn the Teflon® seal sizer tool back 180 degrees and remove.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new fuel injector support rings and new fuel injector O-ring seals are installed.
1. NOTE: The new the fuel injector support rings must be installed in the correct orientation with the wide surface area facing up against the fuel injector O-ring seals. Improperly installed support rings may cause the fuel system to leak.

  Install the new the fuel injector support rings.
2. NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

  Install the new fuel injector O-ring seals and lubricate them with clean engine oil. Refer to: Specifications .
3. NOTE: Make sure that new fuel injector clips are installed.

  Install the new the fuel injector clips.
Courtesy of FORD MOTOR COMPANY
NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.

NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

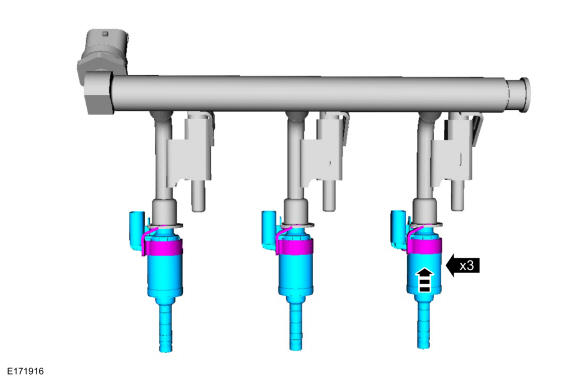

Install the fuel injectors to the fuel rail.

Courtesy of FORD MOTOR COMPANY

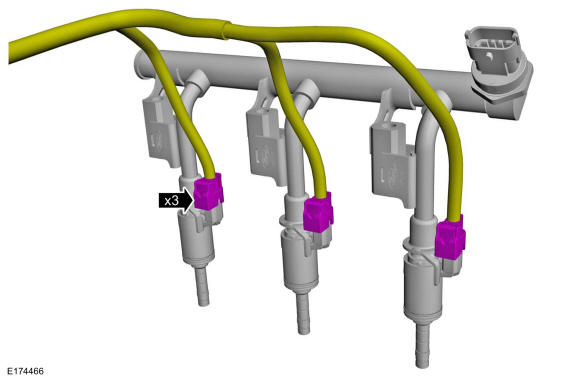

Connect the fuel rail wiring harness.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Only use moderate force.

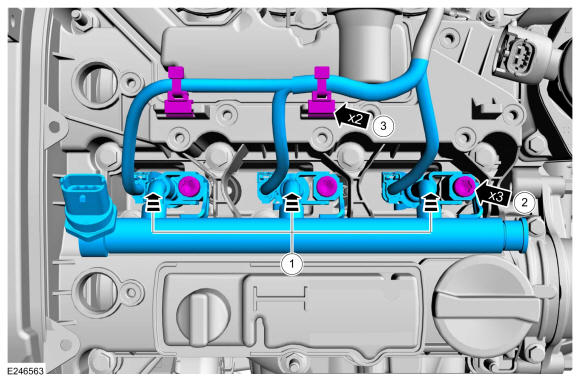

  Install the fuel rail assembly.
2. NOTE: Only tighten the bolts finger tight at this stage.

  Tighten each bolt 1 turn at a time.
3. Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
Tighten in sequence.
Torque 17 lb.ft (23 Nm)

Fig 9: Fuel Rail Assembly Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY
1. NOTE: The O-ring seal is to be reused unless damaged.

  Lubricate the O-ring seals and install the CMP sensors.
2. Install the bolts.
  Torque 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Install all the bolts finger tight before final tightening.

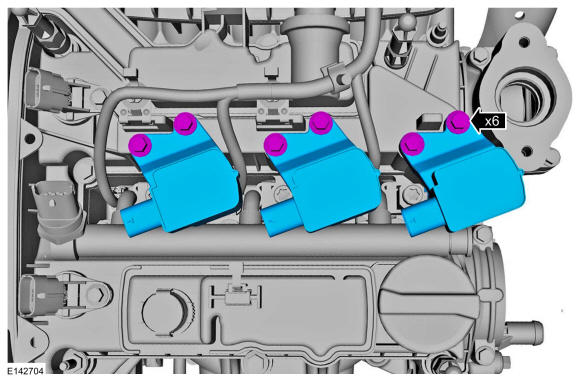

Install the coil-on-plugs and the bolts.

Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The cam lobe for the high-pressure fuel pump must be at BDC for the high-pressure fuel pump installation.

Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC.

Courtesy of FORD MOTOR COMPANY
Apply clean engine oil to the high-pressure fuel pump drive unit bore, the drive lobe and the high-pressure fuel pump tappet. Install the high-pressure fuel pump tappet.

Courtesy of FORD MOTOR COMPANY

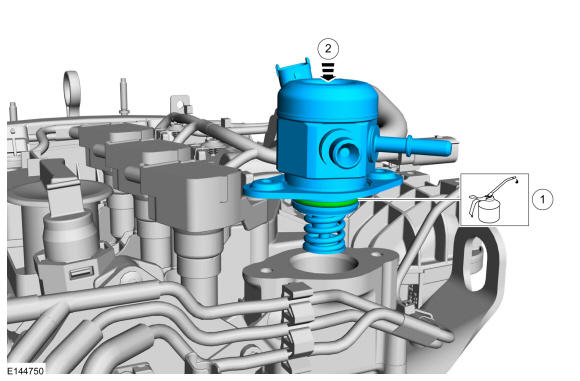

1. NOTE: Use a new seal.

  NOTE: Component(s) must be lubricated with clean engine oil.

  Install a new O-ring seal and lubricate with clean engine oil.
2. NOTE: Only use moderate force.

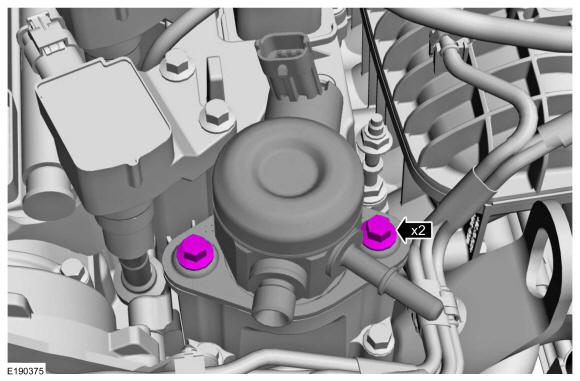

  Install the high pressure fuel pump.
Courtesy of FORD MOTOR COMPANY
1. NOTE: Make sure that new bolts are installed.

  NOTE: Only tighten the bolts finger tight at this stage.

  Tighten each bolt 0.5 turn at a time until seated.
2. Final tighten the bolts in 2 stages.
  Torque Stage 1: 44 lb.in (5 Nm) Stage 2: 115 lb.in (13 Nm)
Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that a new component is installed.

NOTE: Only tighten the 2 high-pressure fuel tube flare nuts finger tight at this stage.

NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas in the chart below.

Courtesy of FORD MOTOR COMPANY

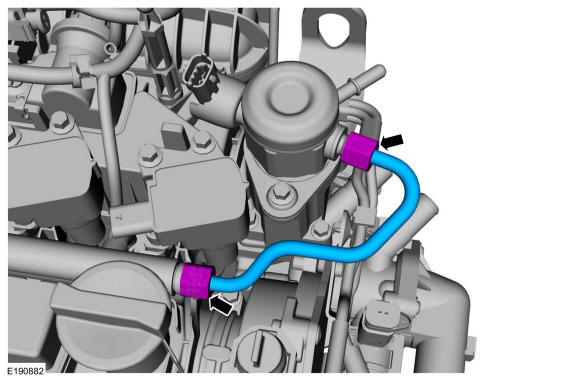

Install the new high-pressure fuel pump-to-fuel rail high-pressure fuel tube and tighten the flare nuts finger tight, then tighten the flare nuts in the following 3 stages.

Torque Stage 1: 124 lb.in (14 Nm) Stage 2: 177 lb.in (20 Nm) Stage 3: 20 deg.

Courtesy of FORD MOTOR COMPANY

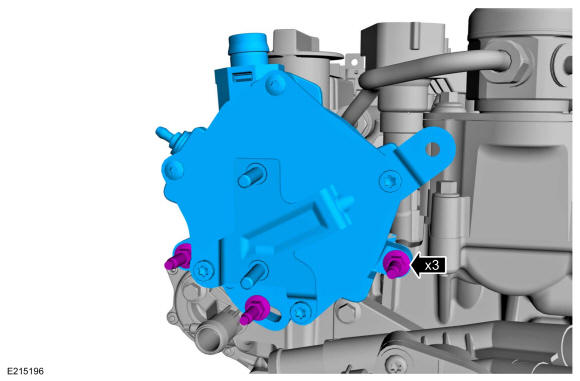

Install the vacuum pump and the stud bolts.
Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new components are installed.

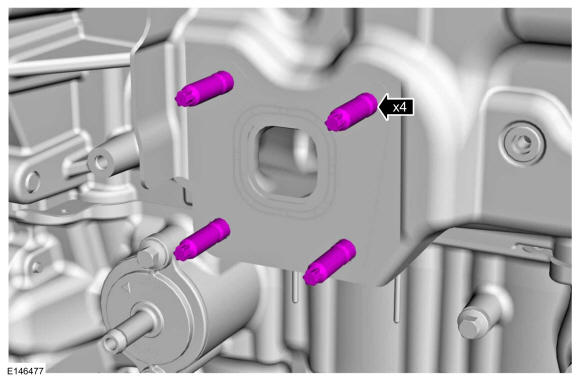

Install new studs.

Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

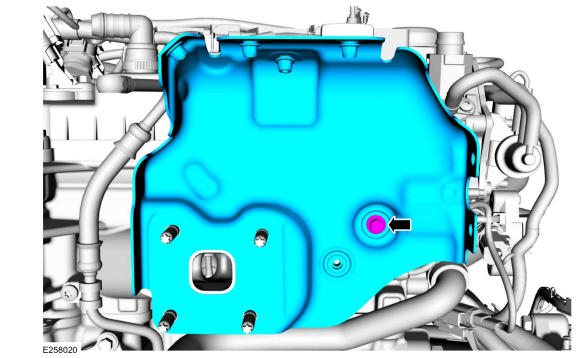

NOTE: Make sure that a new component is installed.

Install a new heat shield and the bolts.

Torque 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

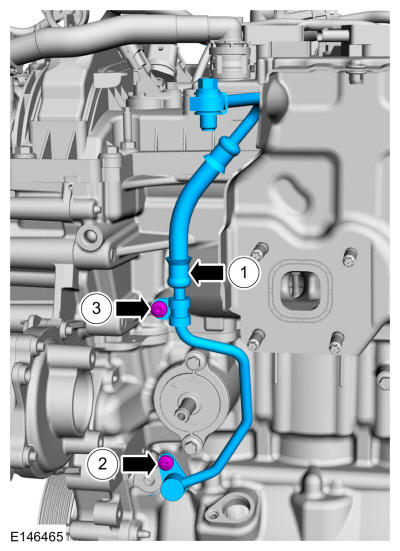

1. NOTE: Make sure that a new component is installed.

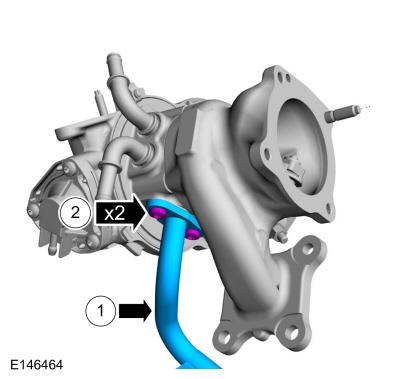

  Install the new turbocharger oil supply tube.
2. NOTE: Install all the bolts finger tight before final tightening.

  Install the bolts.

  Torque 2: 89 lb.in (10 Nm) 3: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
1. Install the oil return tube.
2. NOTE: Install all the bolts finger tight before final tightening.

  Install the bolts.

  Torque 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the nuts and bolts finger tight at this stage.

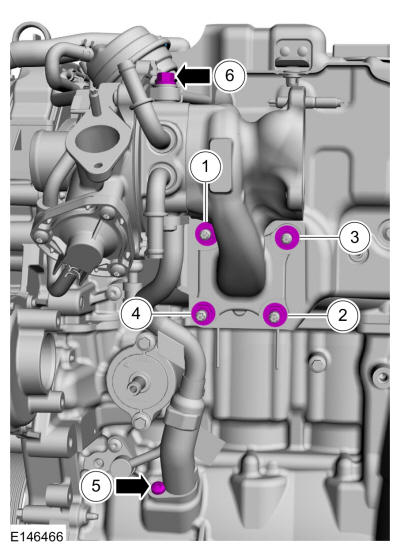

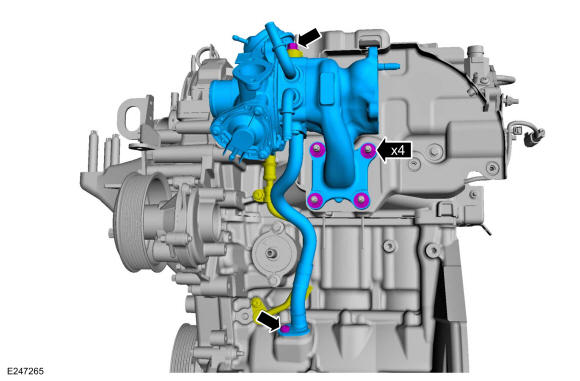

Install the TC assembly and the fasteners.

Courtesy of FORD MOTOR COMPANY
Tighten the fasteners.
Torque 1-4: 168 lb.in (19 Nm) 1-4: 18 lb.ft (24 Nm) 1-4: 18 lb.ft (24 Nm) 5: 89 lb.in (10 Nm) 6: 18 lb.ft (25 Nm)

Fig 10: TC Assembly Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

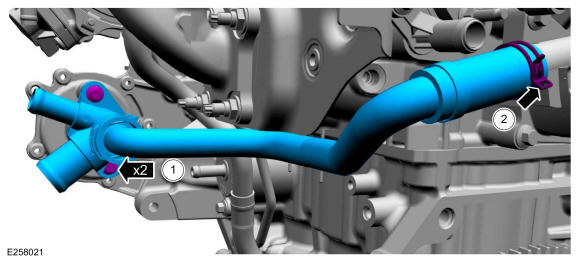

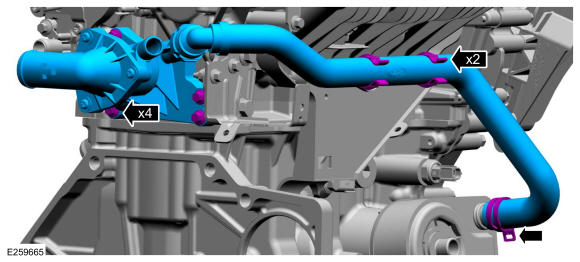

1. Install the coolant hose assembly onto the engine front cover and install the bolts.
  Torque 89 lb.in (10 Nm)
2. Connect the coolant hose assembly to the coolant outlet. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

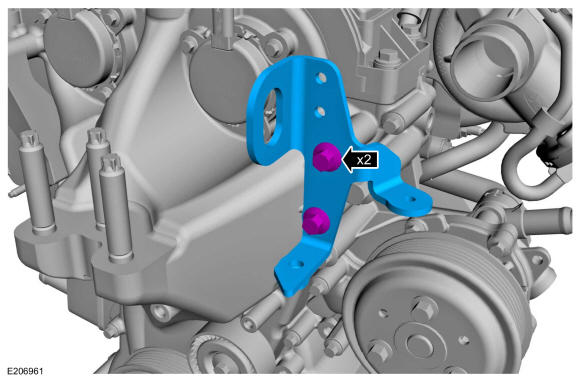

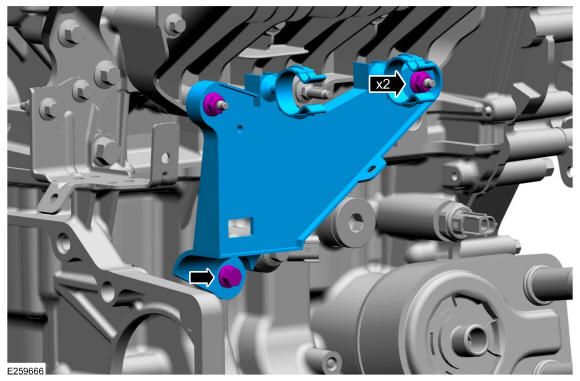

Install the bracket and the fasteners.
Torque Nuts: 53 lb.in (6 Nm) Bolt: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the coolant hose assembly and the bolts.
  Torque 89 lb.in (10 Nm)
2. Connect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
3. Attach the coolant hose retainers.
Courtesy of FORD MOTOR COMPANY
NOTE: Brackets may vary, typical bracket shown.

NOTE: Only tighten the bolts finger tight at this stage.

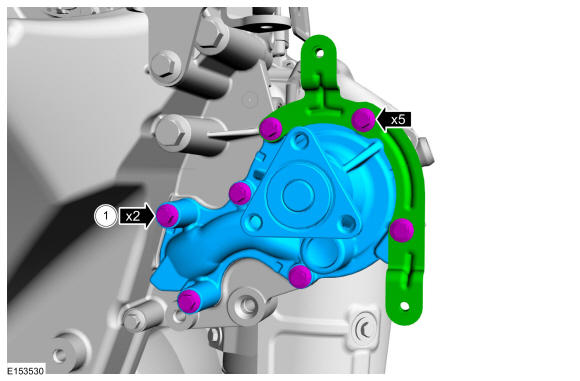

1. Install the coolant pump and the 2 new bolts.
2. Install the bracket and the remaining coolant pump bolts
Courtesy of FORD MOTOR COMPANY
Tighten the bolts in sequence.
Torque 1-5: 89 lb.in (10 Nm) 6-7: Stage 1: 133 lb.in (15 Nm) Stage 2: 90 deg.

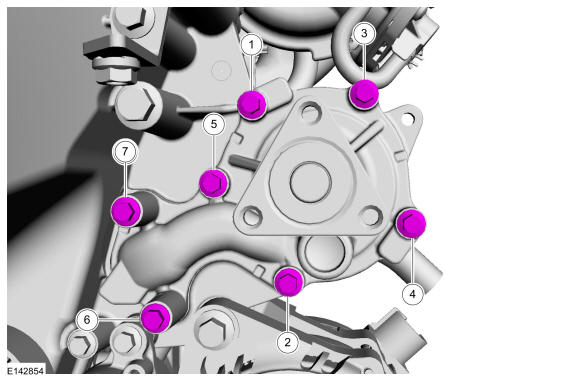

Fig 11: Coolant Pump Bolts Tightening Sequence
Courtesy of FORD MOTOR COMPANY

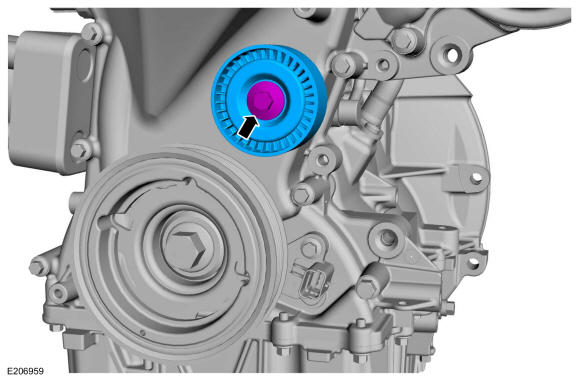

Install the accessory drive belt idler pulley and the bolt.
Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

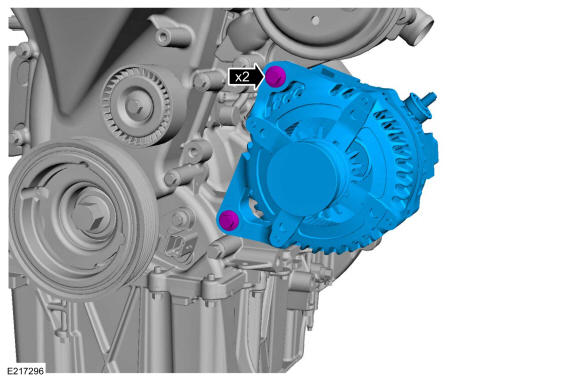

Install the generator and the bolts.
Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

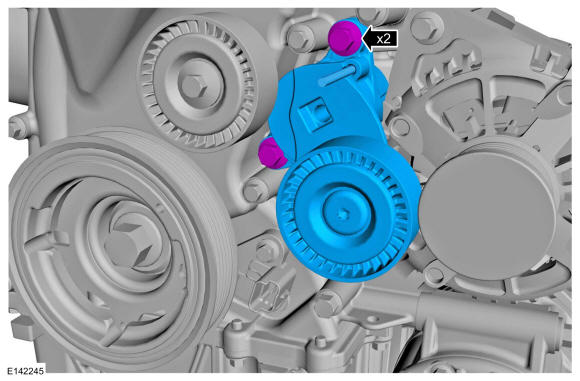

Install the accessory drive belt tensioner and the bolts.
Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

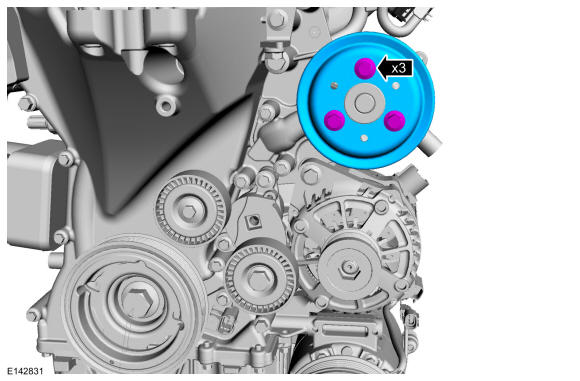

Install the coolant pump pulley and the bolts.
Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

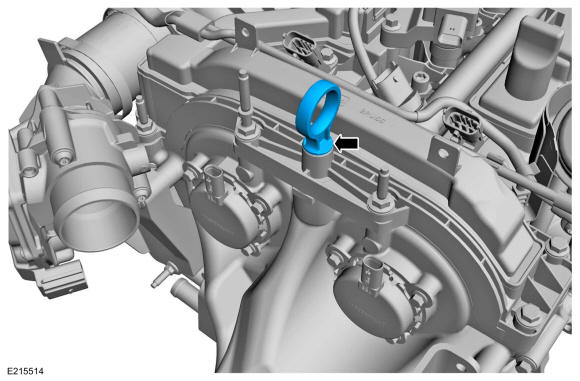

Install the engine lifting bracket and the bolts.
Torque 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

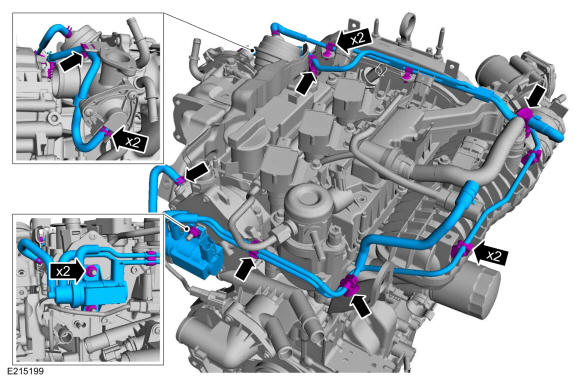

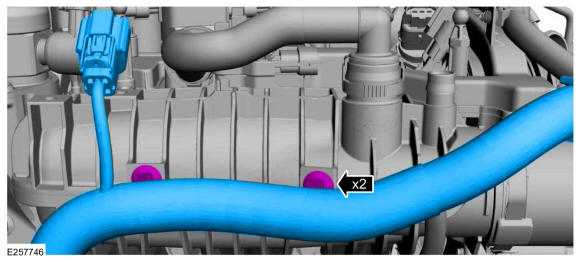

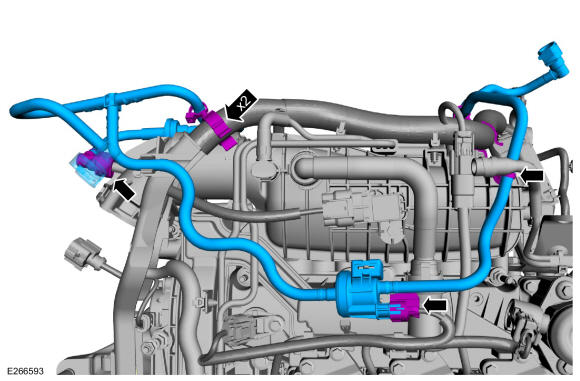

- Position the vacuum hose assembly onto the engine and attach the retainers.
- Connect the vacuum hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Install the nuts.
  Torque 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

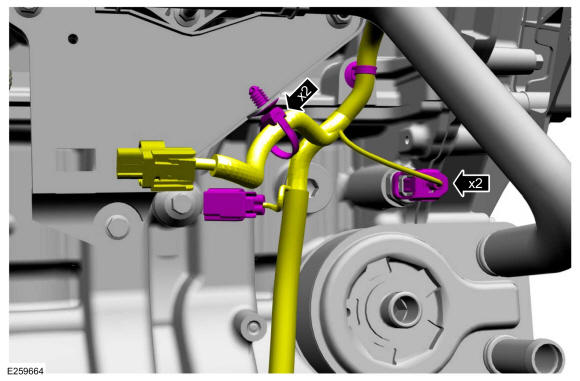

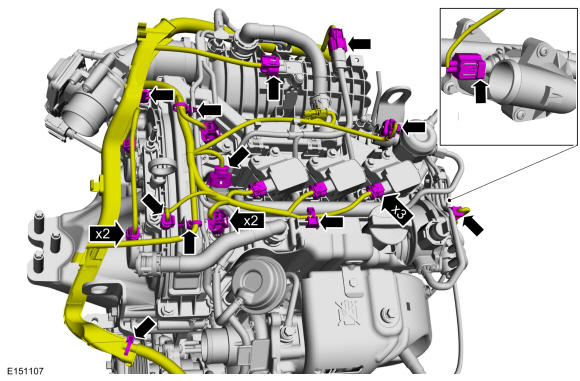

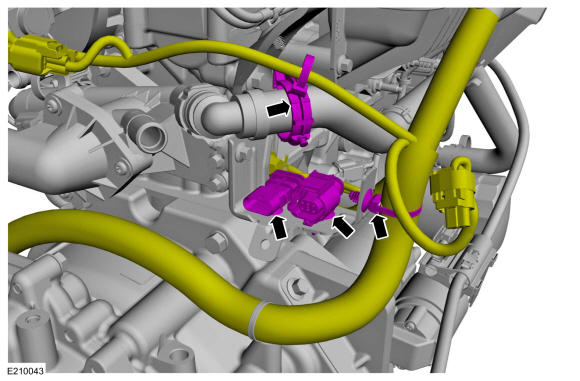

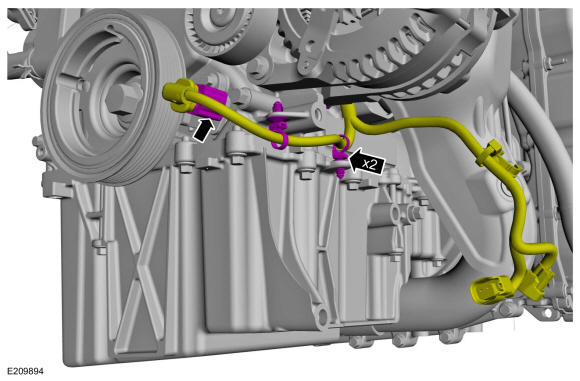

Install the engine wiring harness and attach the retainers.

Courtesy of FORD MOTOR COMPANY
1. Connect the oil pressure switch, the KS.
2. Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
1. Connect the oil control solenoid electrical connector.
2. Attach the wiring harness retainer.
Courtesy of FORD MOTOR COMPANY
1. Connect the engine wiring harness electrical connector.
2. Attach the engine wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

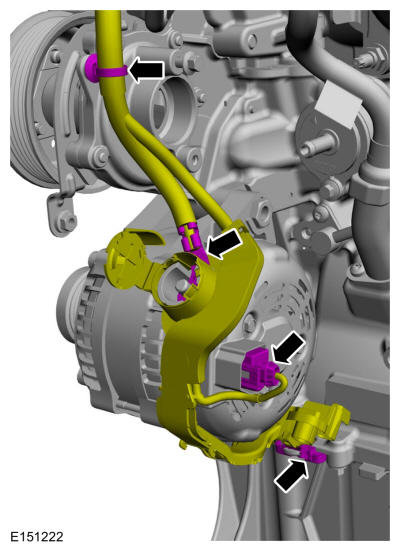

1. Connect the generator wiring harness terminal.
2. Connect the engine wiring harness electrical connector.
3. Attach the engine wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

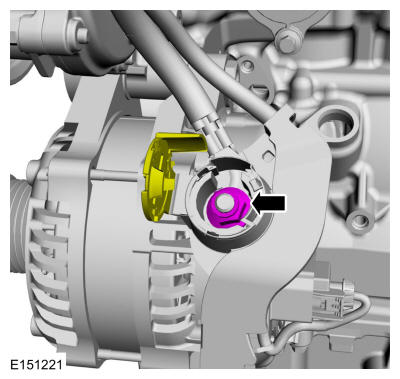

1. Install the generator nut.
  Torque 159 lb.in (18 Nm)
2. Position the protective cover.
Courtesy of FORD MOTOR COMPANY

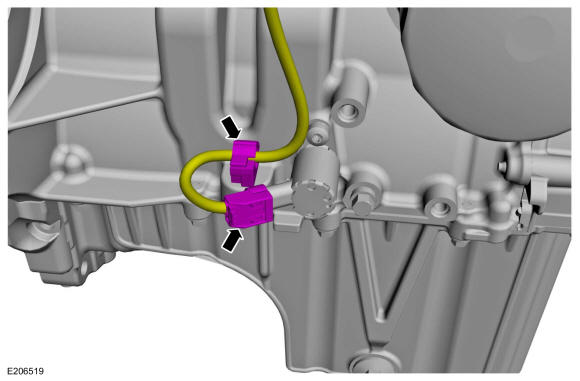

Attach the wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
1. Connect the engine wiring harness electrical connectors.
2. Attach the engine wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
1. Install the EVAP canister purge valve and attach the retainers.
2. Connect the quick release coupling. Refer to: Quick Release Coupling .
3. Connect the EVAP canister purge valve electrical connector.
Courtesy of FORD MOTOR COMPANY
Install the General Equipment: Lifting BracketInstall the General Equipment: Floor Crane

Courtesy of FORD MOTOR COMPANY

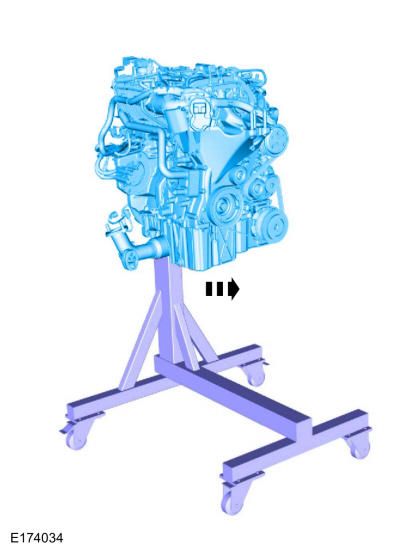

Remove the engine from the stand.

Courtesy of FORD MOTOR COMPANY
