Thermostat Housing: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH headlamp. Refer to: Headlamp Assembly .
Remove the accessory drive belt tensioner. Refer to: Accessory Drive Belt Tensioner .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
NOTE: Cover the generator with waterproof plastic prior to removing the coolant hoses.

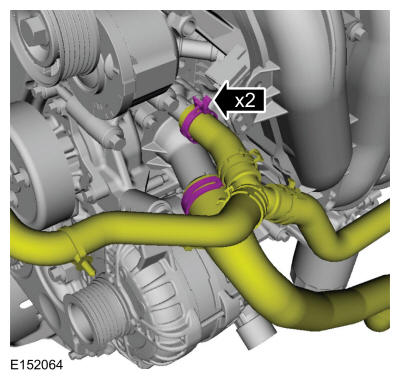

Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

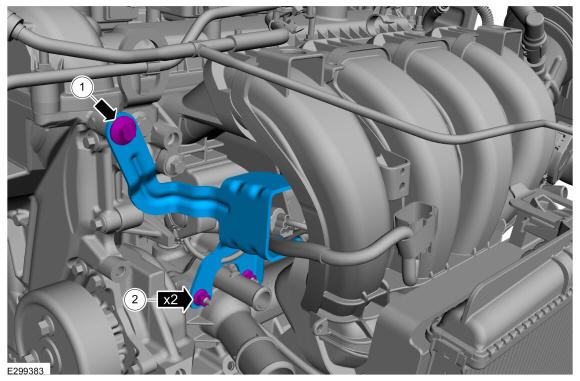

Remove the bolt, nuts and the crash bracket.
Torque: 1: 177 lb.in (20 Nm) 2: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

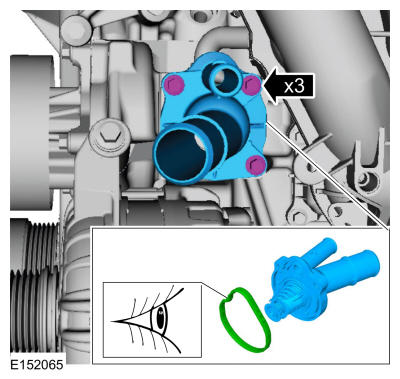

Remove the bolts and the thermostat housing. Inspect the O-ring seal and replace if necessary.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
