Removal And Installation: Radiator: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Recover the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
- Remove the cooling fan motor and shroud. Refer to: Cooling Fan Motor and Shroud .
- Remove the front bumper cover. Refer to: Front Bumper Cover .

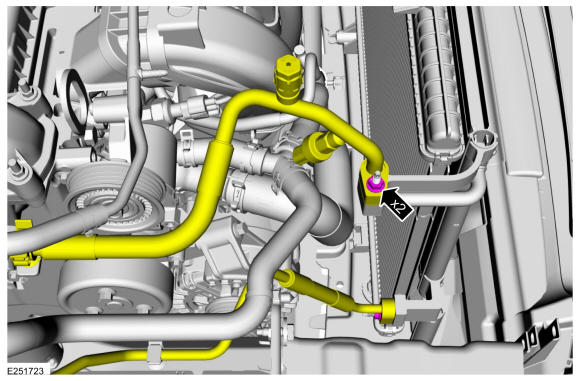

- Remove the condenser inlet and outlet nuts and disconnect the fittings. Discard the O-ring seals and gasket seals.
Torque: 80 lb.in (9 Nm)

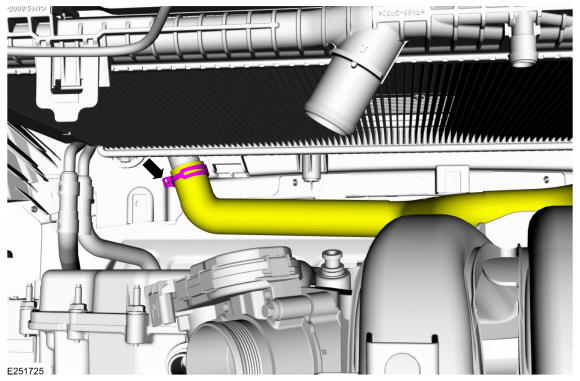

- Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: Be prepared to collect escaping fluid.

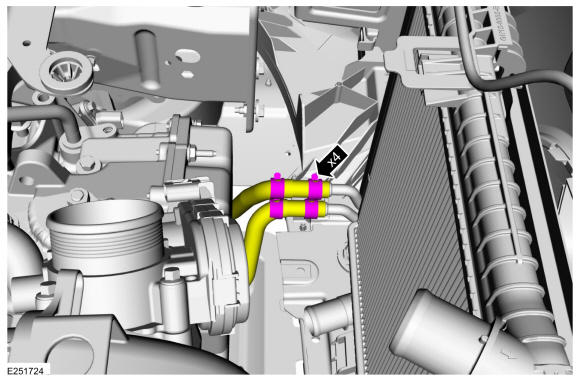

Release the clamps and disconnect the transmission cooler lines. Use the General Equipment: Hose Clamp Remover/Installer
-
- Detach the wiring harness retainer.

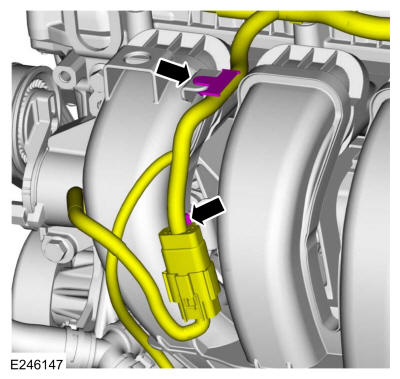

- Detach the wiring harness connector retainer and position the wiring harness aside.

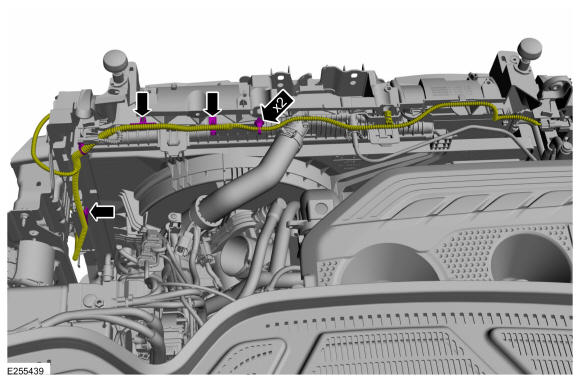

- Detach the retainers and position the electrical wiring harness aside.
-

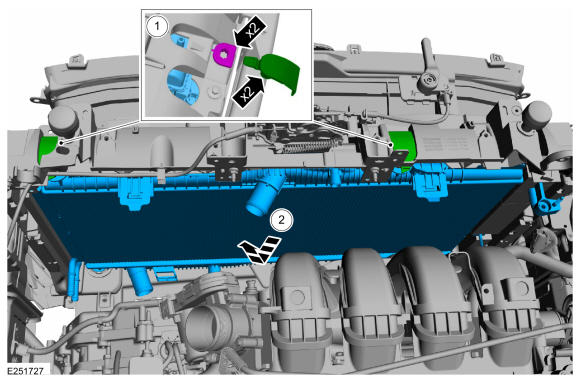

- Remove the radiator upper mounting brackets and the radiator upper isolators.
- Remove the cooling module.

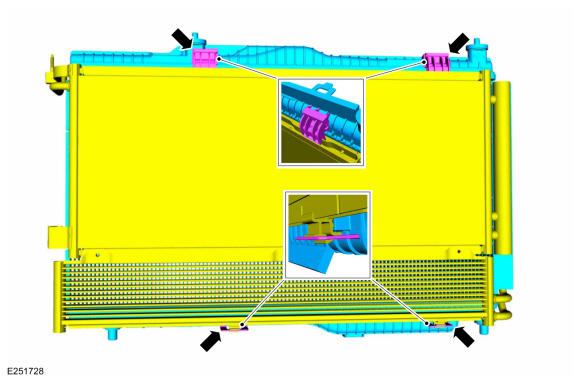

- Release the clips. Remove the A/C condenser and transmission fluid cooler assembly.
