Degas Bottle: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: WARNING: Always allow the engine to cool before opening the cooling system. Do not unscrew the coolant pressure relief cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

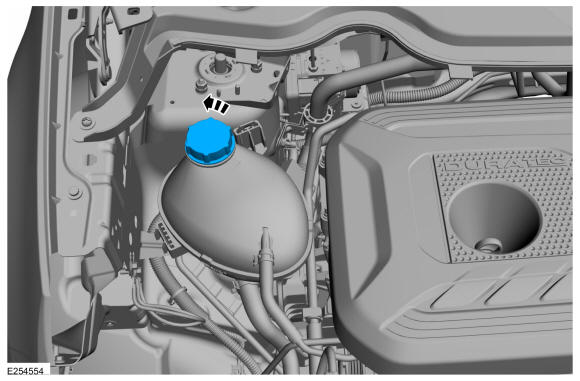

Release the cooling system pressure by slowly turning the degas bottle cap between 2 and 3 turns and remove the degas bottle cap.

Courtesy of FORD MOTOR COMPANY

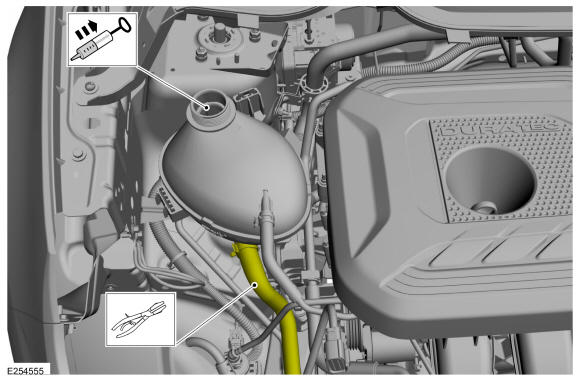

Using general tools, clamp the lower coolant hose and siphon the engine coolant from the degas bottle. Use the General Equipment: Fluid Suction Gun Use the General Equipment: Locking Pliers

Courtesy of FORD MOTOR COMPANY

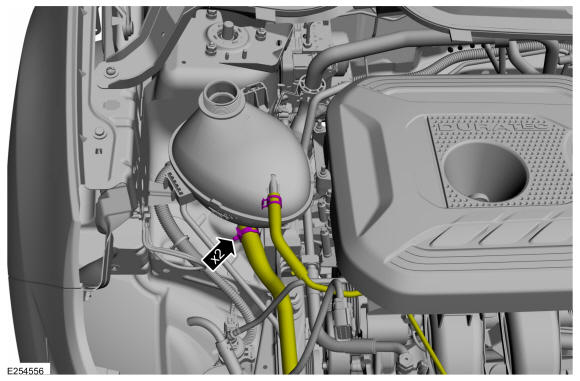

Release the clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

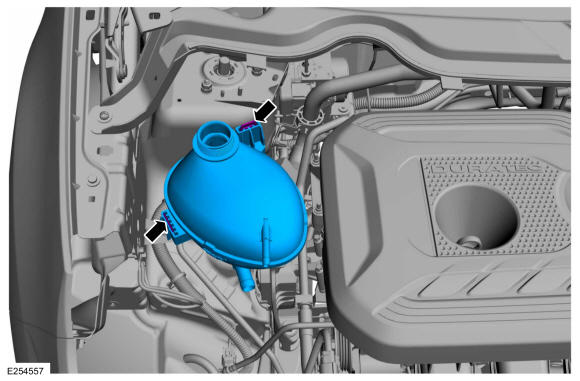

Release the tabs and remove the degas bottle.

Courtesy of FORD MOTOR COMPANY
