Coolant Pump: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the RH headlamp.

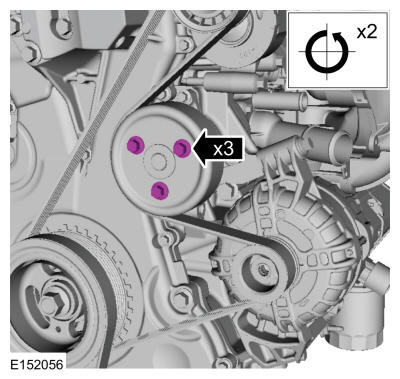

- Loosen the coolant pump pulley bolts.
-
NOTE: Make sure the accessory drive belt is positioned so coolant can not contaminate the belt.

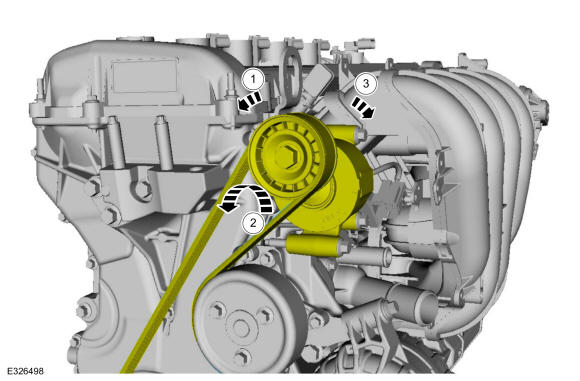

- Rotate the accessory drive belt tensioner.
- Position aside the accessory drive belt.
- Release the accessory drive belt tensioner.
- Remove the bolts and the coolant pump pulley.

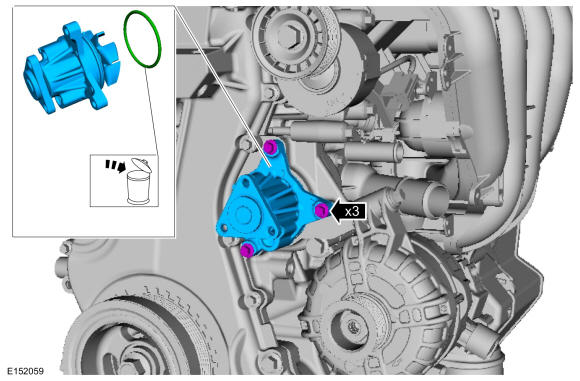

- Remove the bolts and the coolant pump. Discard the O-ring seal.
