Coolant Pump: Installation

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

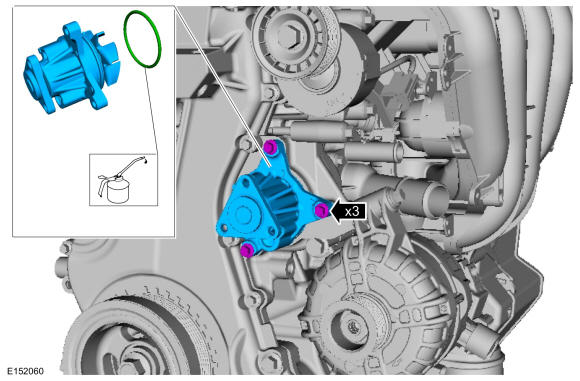

Lubricate the O-ring seal with clean engine coolant. Install the coolant pump and the bolts.
Material: Motorcraft® Orange Concentrated Antifreeze/Coolant / VC-3-B (WSS-M97B44-D)

Material: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this time.

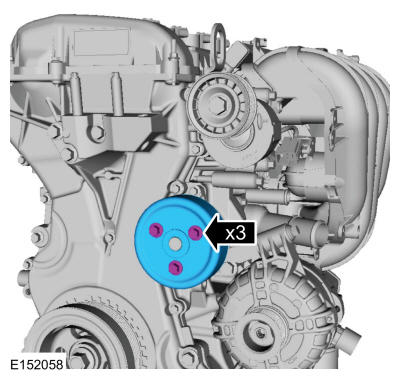

Position the coolant pump pulley and install the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

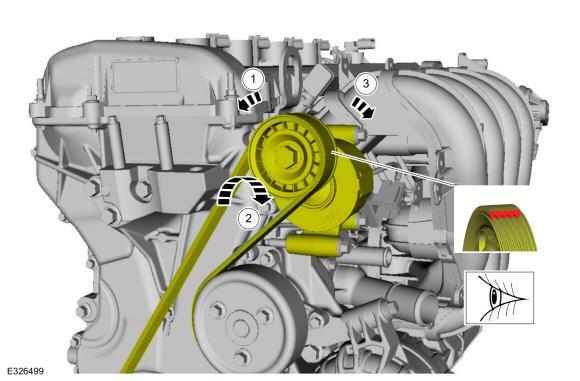

1. Rotate the accessory drive belt tensioner.
2. Position the accessory drive belt.
3. Release the accessory drive belt tensioner.
Courtesy of FORD MOTOR COMPANY

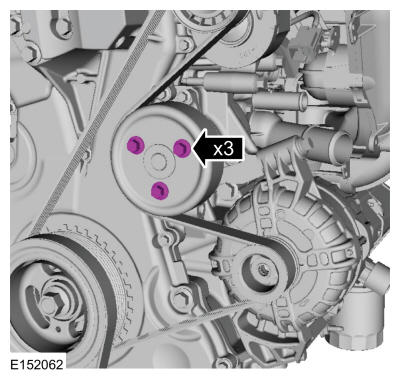

Tighten the coolant pump pulley bolts.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH headlamp.
Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
