Engine Cooling - Component Location
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

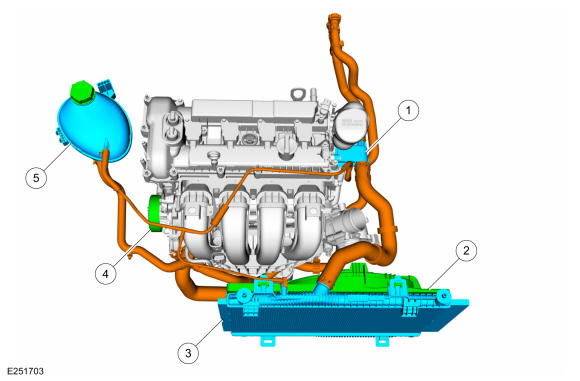

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Coolant outlet connector |
| 2 |
Cooling fan motor and shroud |
| 3 |
Radiator |
| 4 |
Coolant pump pulley |
| 5 |
Degas bottle |

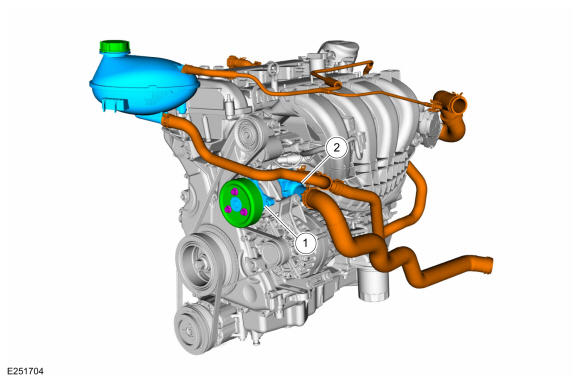

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Coolant pump |
| 2 |
Thermostat housing |
