Turbine Shaft Speed (TSS) Sensor: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner.

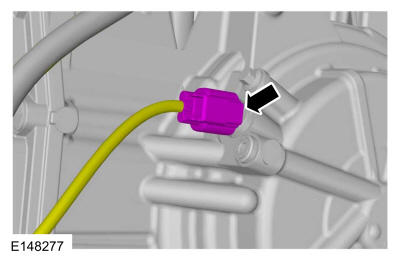

  2. Disconnect the TSS.
    GFD326880Courtesy of FORD MOTOR COMPANY

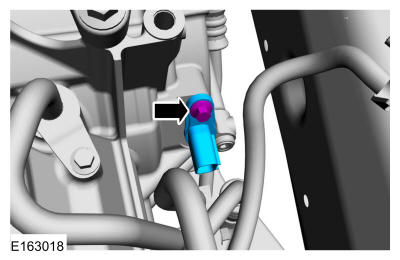

  3. Remove the TSS bolt and the TSS sensor.
GFD326881Courtesy of FORD MOTOR COMPANY
