Transmission - 1.5L Duratec (90kW/120PS) - I3: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the battery tray. Refer to: Battery Tray .
  3. Remove the air cleaner.
  4. Remove the cowl panel. Refer to: Cowl Panel Grille .
  5. Remove the wiring harness push pin retainers, the nuts and the battery support bracket.
    GFD326783Courtesy of FORD MOTOR COMPANY
  6. Disconnect the selector lever cable end from the manual control lever, remove the bracket bolts and position aside the selector lever cable and bracket.
    GFD326784Courtesy of FORD MOTOR COMPANY
  7. Disconnect the wiring harness retainers from the main control cover studbolts. Disconnect the transmission main control connector, the TSS and position aside the wiring harnesses.
    GFD326735Courtesy of FORD MOTOR COMPANY
  8. Remove the bolt and position aside the ground strap.
    GFD326785Courtesy of FORD MOTOR COMPANY
  9. Remove the bolts and the transmission roll restrictor.
    GFD326756Courtesy of FORD MOTOR COMPANY
  10. Remove the bolts and the transmission roll restrictor bracket.
    GFD326786Courtesy of FORD MOTOR COMPANY
  11. Install the special tool and support the engine. Use Special Service Tool: 303-290-01 Adapter for 303-290A., 303-290-03A Adapter for 303-290A., 303-290-05A Adapter for 303-290A., 303-290B Support Bar, Engine.
    GFD326787Courtesy of FORD MOTOR COMPANY
  12. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

    Remove the drain plug and drain the transmission. Install the drain plug.

    Torque

    : 106 lb.in (12 Nm)

    GFD326721Courtesy of FORD MOTOR COMPANY
  13. Remove the wheel and tire. Refer to: Wheel and Tire .
  14. Remove the LH halfshaft. Refer to: Front Halfshaft LH - 6-Speed Automatic Transmission - 6F15 .
  15. WARNING: Make sure that no load is placed on the brake hose.

    Remove the bolt and position aside the RH brake hose.

    GFD326788Courtesy of FORD MOTOR COMPANY
  16. WARNING: WARNING: Make sure that the alignment line is not twisted.

    Remove the bolt, detach the retainer and position aside the RH front wheel speed sensor.

    GFD326789Courtesy of FORD MOTOR COMPANY
  17. WARNING: WARNING: Make sure that a new bolt is installed.
    NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.
    NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

    Remove and discard the RH lower ball joint nut and bolt.

    GFD326790Courtesy of FORD MOTOR COMPANY

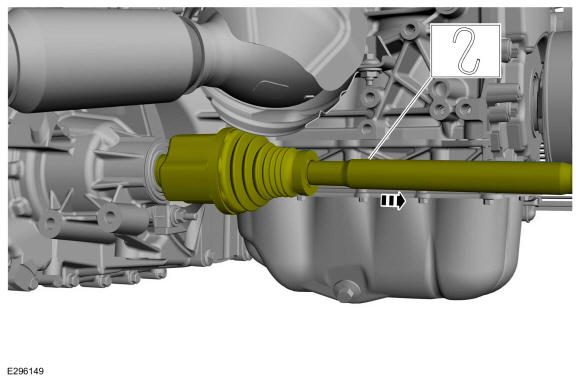

  18. NOTE: Do not pull on the halfshaft. Pull or pry on the inner CV housing only or damage may occur.

    Position aside and support the RH halfshaft.

    GFD326791Courtesy of FORD MOTOR COMPANY
  19. Remove and discard the halfshaft retaining circlip.
    GFD326792Courtesy of FORD MOTOR COMPANY

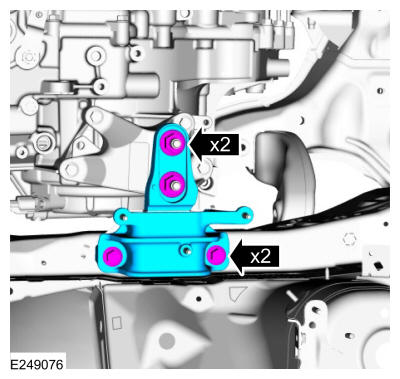

  20. Remove the nuts, the bolts and the transmission support insulator.
    GFD326793Courtesy of FORD MOTOR COMPANY

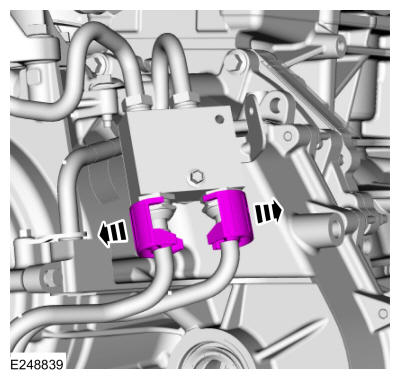

  21. Remove the transmission fluid cooler tube secondary latches.
    GFD326794Courtesy of FORD MOTOR COMPANY
  22. Remove the transmission fluid cooler tube bracket bolt.
    GFD326795Courtesy of FORD MOTOR COMPANY

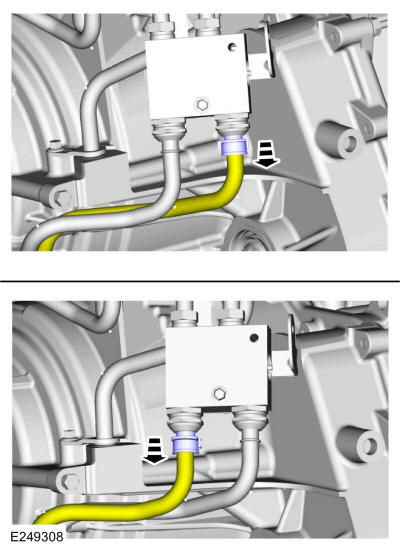

  23. Disconnect and position aside the lower transmission fluid cooler tubes. Use Special Service Tool: 307-569 Disconnect Tool TOC Line (1/2).
    GFD326796Courtesy of FORD MOTOR COMPANY
  24. Detach the transmission vent tube from the coolant hose.
    GFD326722Courtesy of FORD MOTOR COMPANY
  25. Remove the upper transmission to engine bolts.
    GFD326797Courtesy of FORD MOTOR COMPANY
  26. Remove the starter motor.
  27. Remove the starter motor insulator.
    GFD326798Courtesy of FORD MOTOR COMPANY
  28. NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.
    NOTE: Index mark one stud and flexplate for assembly reference.
    NOTE: The torque converter nuts are accessed from the top of the vehicle.

    Using a magnetic socket, remove and discard the torque converter nuts. Use the General Equipment: Magnetic Socket

    GFD326799Courtesy of FORD MOTOR COMPANY
  29. Disconnect and remove the lower transmission cooler tubes from the cooler, remove the tubes from the vehicle.
    GFD326800Courtesy of FORD MOTOR COMPANY

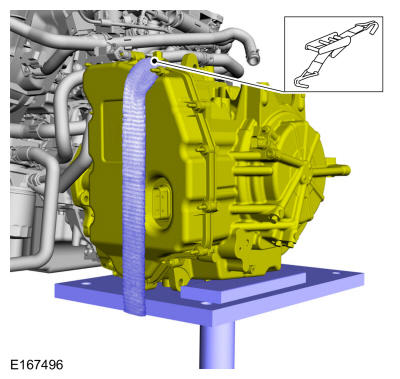

  30. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure that no part of the wiring harness is trapped.

    Support the transmission with a transmission jack. Use the General Equipment: Transmission Jack. Use the General Equipment: Retaining Strap

    GFD326801Courtesy of FORD MOTOR COMPANY
  31. Remove the transmission-to-engine bolts and studbolts.
    GFD326802Courtesy of FORD MOTOR COMPANY
  32. Remove the transmission-to-engine bolts and studbolt.
    GFD326803Courtesy of FORD MOTOR COMPANY
  33. Separate the transmission from the engine and install the special tool. Install Special Service Tool: 307-566 Retainer, Torque Converter.
    GFD326804Courtesy of FORD MOTOR COMPANY

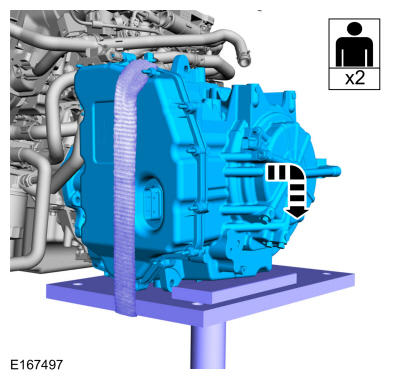

  34. NOTE: Make sure that no components catch.

    Remove the transmission.

    GFD326805Courtesy of FORD MOTOR COMPANY
  35. Verify the locating dowels remain installed.
    GFD326806Courtesy of FORD MOTOR COMPANY

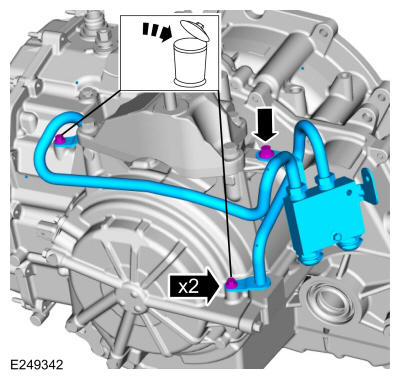

  36. NOTE: If transmission disassembly or installation of a new transmission is necessary, remove the transmission mounted fluid cooler tubes.

    Remove and discard the bolts, remove the nut and the bolt and the transmission mounted fluid cooler tubes and bypass valve.

    GFD326807Courtesy of FORD MOTOR COMPANY

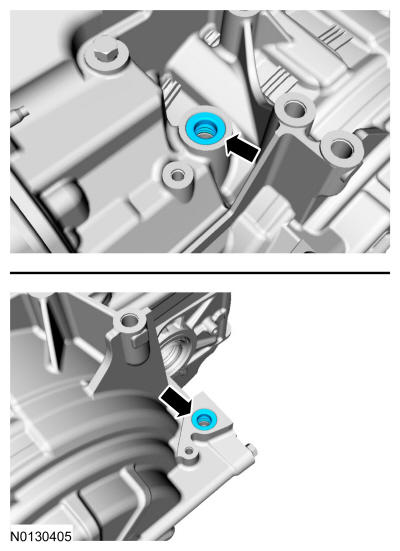

  37. Inspect the transmission case to be sure that the transmission fluid cooler tube seals and backing rings were removed with the transmission fluid cooler tubes and are not stuck in the transmission case. If the transmission fluid cooler tube seals or backing rings are stuck in the transmission case, remove the seals and backing rings.
    GFD326808Courtesy of FORD MOTOR COMPANY
  38. NOTE: If transmission disassembly or installation of a new transmission is necessary, remove the transmission insulator bracket.

    Remove the bolts and the transmission insulator support bracket.

    GFD326809Courtesy of FORD MOTOR COMPANY
  39. NOTE: If transmission disassembly or installation of a new transmission is necessary, remove the transmission vent tube.

    Remove the transmission vent tube.

    GFD326723Courtesy of FORD MOTOR COMPANY
  40. NOTE: If transmission disassembly or installation of a new transmission is necessary, remove the manual shift lever.

    Remove the nut and the manual shift lever.

    GFD326810Courtesy of FORD MOTOR COMPANY
  41. NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

    If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the transmission fluid cooler backflushing and cleaning. Clean the transmission-mounted fluid cooler tubes by hand.
