Transmission - 1.0L EcoBoost (92kW/125PS): Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the cowl panel. Refer to: Cowl Panel Grille .
Remove the battery tray. Refer to: Battery Tray .
NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

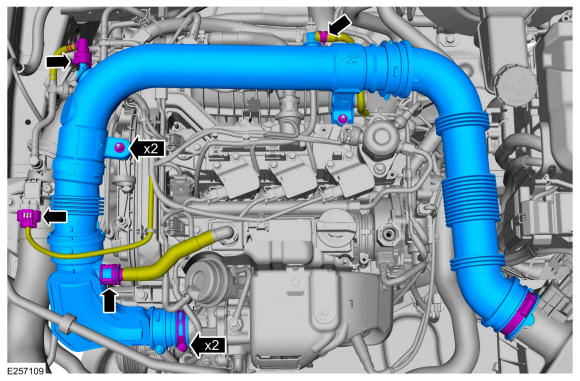

1. Loosen the air cleaner outlet pipe clamps, remove the nuts. Disconnect the vacuum tube from air outlet pipe. Use the General Equipment: Hose Clamp Remover/Installer
2. Disconnect the fuel evaporative tube quick release coupling. Refer to: Quick Release Coupling .
3. Disconnect the PCV coupling. Refer to: Quick Release Coupling .
4. Disconnect the MAP sensor electrical connector and remove the air cleaner outlet pipe assembly.
5. Clean, inspect, and cover all open ports.
Courtesy of FORD MOTOR COMPANY
Remove the air cleaner. Refer to: Air Cleaner .
Remove the wiring harness push pin retainers, the nuts and the battery support bracket.

Courtesy of FORD MOTOR COMPANY

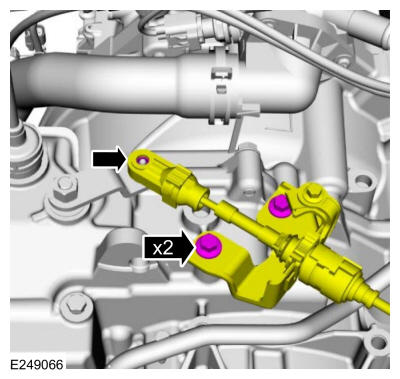

Disconnect the selector lever cable end from the manual control lever, remove the bracket bolts and position aside the selector lever cable and bracket.

Courtesy of FORD MOTOR COMPANY
Detach the transmission vent tube from the coolant hose.

Courtesy of FORD MOTOR COMPANY
Remove the catalytic converter. Refer to: Catalytic Converter .
Remove the starter motor. Refer to: Starter Motor .
Remove the bolt and position aside the ground strap.

Courtesy of FORD MOTOR COMPANY
Disconnect the wiring harness retainers from the main control cover stud bolts. Disconnect the transmission main control connector, the TSS and position aside the wiring harnesses.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid heater coolant control valve nuts and position aside the valve.

Courtesy of FORD MOTOR COMPANY

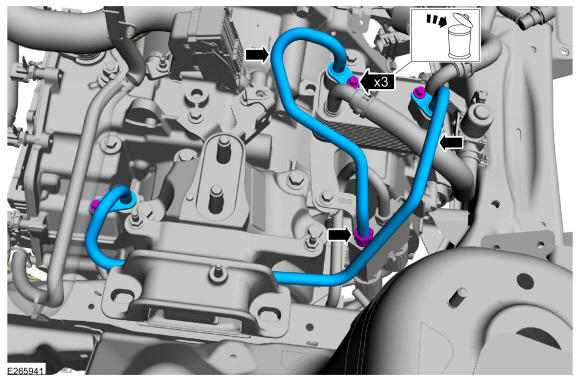

Remove and discard the transmission fluid cooler tube bolts. Loosen the transmission fluid cooler tube fitting and remove the cooler tubes.

Courtesy of FORD MOTOR COMPANY

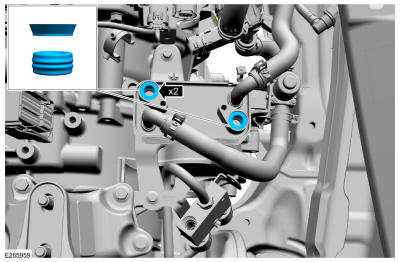

Inspect the transmission fluid warmer to be sure that the transmission fluid cooler tube seals and backing rings were removed with the transmission fluid cooler tubes and are not stuck in the transmission fluid warmer. If the transmission fluid cooler tube seals or backing rings are stuck in the transmission fluid warmer, remove the seals and the backing rings.

Courtesy of FORD MOTOR COMPANY
Disconnect the wiring harness from the transmission warmer bracket.

Courtesy of FORD MOTOR COMPANY
Remove the bolts, the nut and position aside the transmission fluid warmer.

Courtesy of FORD MOTOR COMPANY

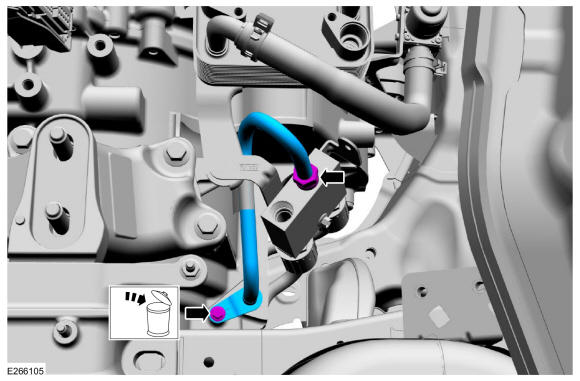

Remove and discard the transmission fluid cooler bolt. Loosen the fitting and remove the cooler bypass valve-to-transmission tube.

Courtesy of FORD MOTOR COMPANY

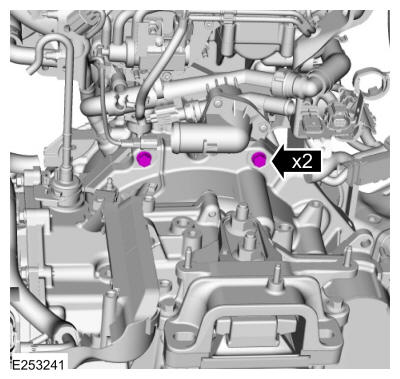

Remove the upper transmission to engine bolts.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the transmission roll restrictor and bracket.

Courtesy of FORD MOTOR COMPANY
Remove the transmission roll restrictor bracket bolts.

Courtesy of FORD MOTOR COMPANY

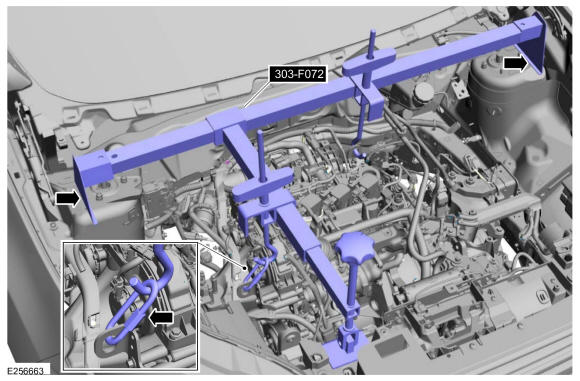

Using the special tool and a connecting link, support the engine. Use Special Service Tool: 303-290-01 Adapter for 303-290A., 303-290-03A Adapter for 303-290A., 303-290-05A Adapter for 303-290A., 303-290B Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

Remove the drain plug and drain the transmission. Install the drain plug.

Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the wheel and tire. Refer to: Wheel and Tire .
Remove the retainers and the LH inner splash shield.

Courtesy of FORD MOTOR COMPANY
Remove the LH halfshaft. Refer to: Front Halfshaft LH - 6-Speed Automatic Transmission - 6F15 .
WARNING: WARNING: Make sure that no load is placed on the brake hose.

Remove the bolt and position aside the RH brake hose.

Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Make sure that the alignment line is not twisted.

Remove the bolt, detach the retainer and position aside the RH front wheel speed sensor.

Courtesy of FORD MOTOR COMPANY
WARNING: WARNING: Make sure that a new bolt is installed.

NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.

NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

Remove and discard the RH lower ball joint nut and bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pull on the halfshaft. Pull or pry on the inner CV housing only or damage may occur.

Position aside and support the RH halfshaft.

Courtesy of FORD MOTOR COMPANY
Remove and discard the halfshaft retaining circlip.

Courtesy of FORD MOTOR COMPANY
Remove the nuts, the bolts and the transmission support insulator.

Courtesy of FORD MOTOR COMPANY

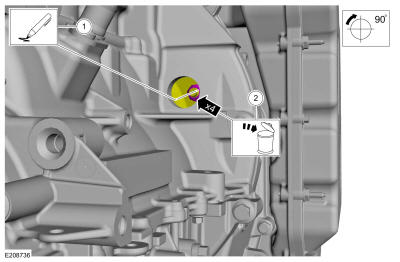

Remove the torque converter nut access plug.

Courtesy of FORD MOTOR COMPANY
NOTE: Only rotate the engine in a clockwise direction or engine damage will occur.

NOTE: Index mark one stud and flexplate for assembly reference.

NOTE: The torque converter nuts are accessed from the top of the vehicle.

Using a magnetic socket, remove and discard the torque converter nuts. Use the General Equipment: Magnetic Socket

Courtesy of FORD MOTOR COMPANY
Disconnect the transmission fluid cooler-to-cooler bypass valve tubes to the cooler bypass valve.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and remove the transmission cooler-to-cooler bypass valve tubes.

Courtesy of FORD MOTOR COMPANY
NOTE: Secure the transmission to the transmission jack with a safety strap.

NOTE: Make sure that no part of the wiring harness is trapped.

Support the transmission with a transmission jack. Use the General Equipment: Transmission Jack. Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY
Remove the transmission-to-engine bolts.

Courtesy of FORD MOTOR COMPANY
Remove the transmission-to-engine bolts.

Courtesy of FORD MOTOR COMPANY
Separate the transmission from the engine and install the special tool. Install Special Service Tool: 307-566 Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that no components catch.

Remove the transmission.

Courtesy of FORD MOTOR COMPANY
Verify the locating dowels remain installed.

Courtesy of FORD MOTOR COMPANY
Inspect the transmission case to be sure that the transmission fluid cooler tube seals and backing rings were removed with the transmission fluid cooler tubes and are not stuck in the transmission case. If the transmission fluid cooler tube seals or backing rings are stuck in the transmission case, remove the seals and backing rings.

Courtesy of FORD MOTOR COMPANY
NOTE: If transmission disassembly or installation of a new transmission is necessary, remove the transmission insulator bracket.

Remove the bolts and the transmission insulator support bracket.

Courtesy of FORD MOTOR COMPANY
NOTE: If transmission disassembly or installation of a new transmission is necessary, remove the transmission vent tube.

Remove the transmission vent tube.

Courtesy of FORD MOTOR COMPANY
NOTE: If transmission disassembly or installation of a new transmission is necessary, remove the manual shift lever.

Remove the nut and the manual shift lever.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the transmission fluid cooler backflushing and cleaning. Clean the transmission-mounted fluid cooler tubes by hand.
