Roll Restrictor RH - 1.0L EcoBoost (92kW/125PS): Installation
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

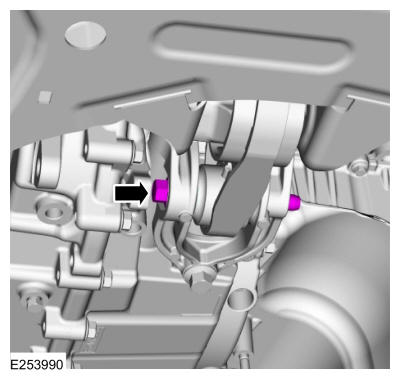

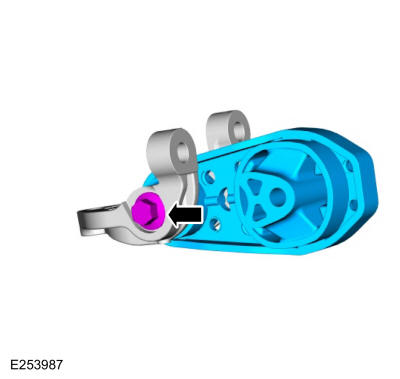

- Assemble the roll restrictor and the roll restrictor bracket. Install the roll restrictor bolt hand tight.

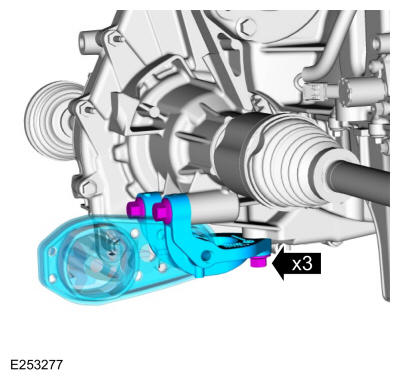

- Install the transmission roll restrictor bracket bolts.
Torque
: 85 lb.ft (115 Nm)
- Install the transmission roll restrictor, bracket and the bolts.
Torque
: 85 lb.ft (115 Nm)

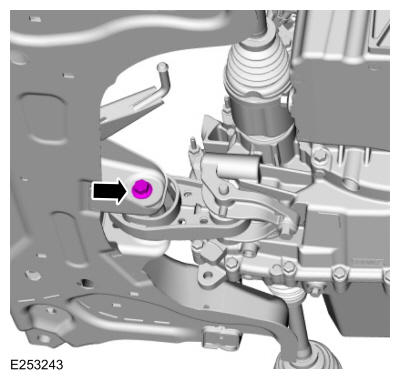

- Tighten the transmission roll restrictor bolt.
Torque
: 85 lb.ft (115 Nm)
