Main Control Cover - 1.5L Duratec (90kW/120PS) - I3: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the air cleaner assembly.
- Remove the cooling fan motor and shroud.
-
NOTE: If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transmission will need to be overhauled.
Remove the transmission fluid drain plug and allow the transmission fluid to drain.
Torque
: 106 lb.in (12 Nm)

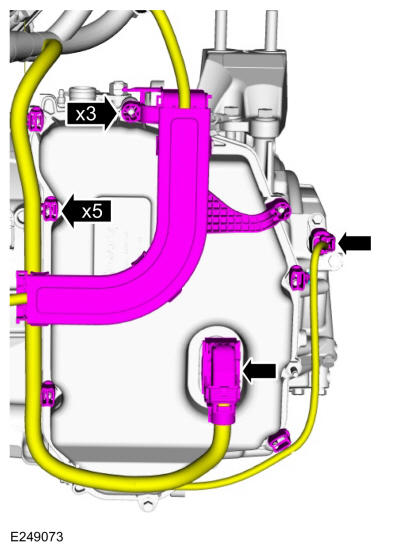

- Disconnect the transmission electrical connector and the wiring harness retainers.
-
NOTE: Note the location of the studbolts for installation.
Remove the bolts, stud bolts and the main control cover.
