Transmission Case: Assembly

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

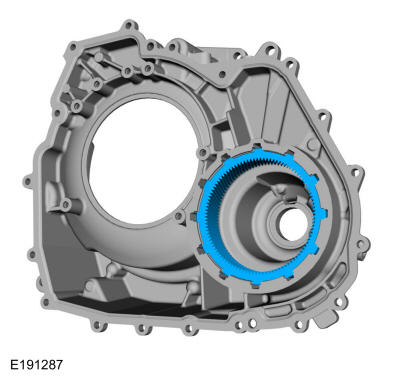

  1. Install the differential ring gear in the torque converter housing.
    GFD327180Courtesy of FORD MOTOR COMPANY

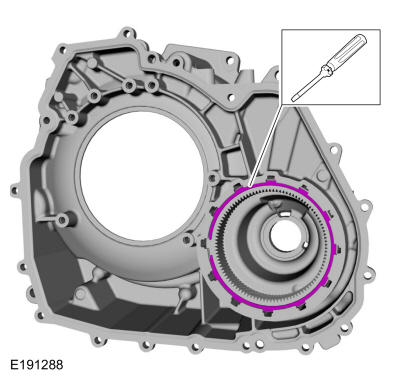

  2. NOTE: Be sure the flat side of the beveled snap ring is facing down or the ring can come loose, causing damage to the transmission.
    NOTE: Make sure the snap ring is seated in the groove.

    Install the beveled differential ring gear snap ring with the flat side facing down. Use the General Equipment: Flat Headed Screw Driver

    GFD327179Courtesy of FORD MOTOR COMPANY
  3. Install a new bushing on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-664 Case Bushing Installer.
    GFD327181Courtesy of FORD MOTOR COMPANY

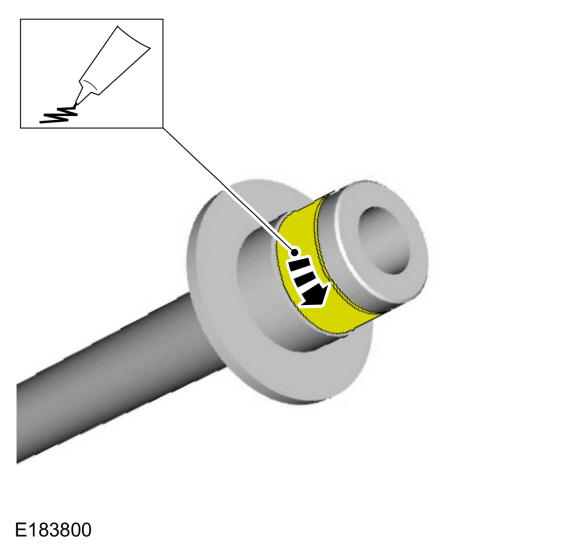

  4. Place a small amount of Retaining Compound on only the outside of the entire outer circumference of the new red Teflon® coated bushing before installation.

    Material

    : Loctite® 648 / 1835922 (WSK-M2G349-A4)

    GFD327182Courtesy of FORD MOTOR COMPANY
  5. Using the special tool, install the new bushing in the transmission case. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-664 Case Bushing Installer. Use the General Equipment: Hydraulic Press
GFD327183Courtesy of FORD MOTOR COMPANY
