Turbine Shaft Speed (TSS) Sensor: Removal
WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

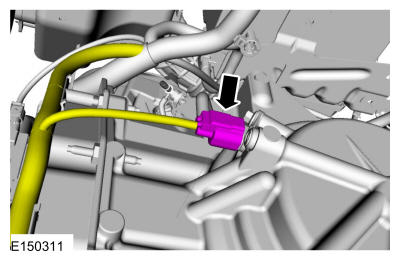

- Disconnect the TSS sensor electrical connector.

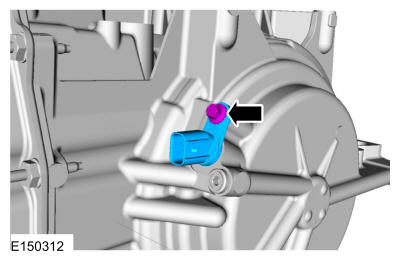

- Remove the TSS sensor bolt and the TSS sensor.
Torque : 89 lb.in (10 Nm)
