Transmission Fluid Auxiliary Pump: Removal

WARNING: This page is about a different car, the 2018 Ford EcoSport. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the engine undershield. Refer to: Engine Undershield .
Disconnect the transmission fluid auxiliary pump electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid cooler tube bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use power tools to remove the transmission fluid auxiliary pump bolts or damage can occur.

NOTE: Be prepared to collect escaping fluid.

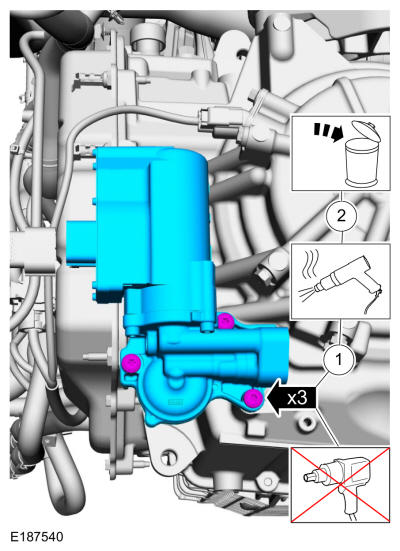

Remove the bolts and the transmission fluid auxiliary pump.
1. Apply heat to the bolts to soften the Loctite®. Use the General Equipment: Hot Air Gun
2. Remove and discard the bolts.
Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid auxiliary pump gasket.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid auxiliary pump supply tube assembly.

Courtesy of FORD MOTOR COMPANY
Clean and inspect the transmission fluid auxiliary pump supply tube and check ball.
1. Check ball (part of the transmission fluid auxiliary pump supply tube)

Courtesy of FORD MOTOR COMPANY
